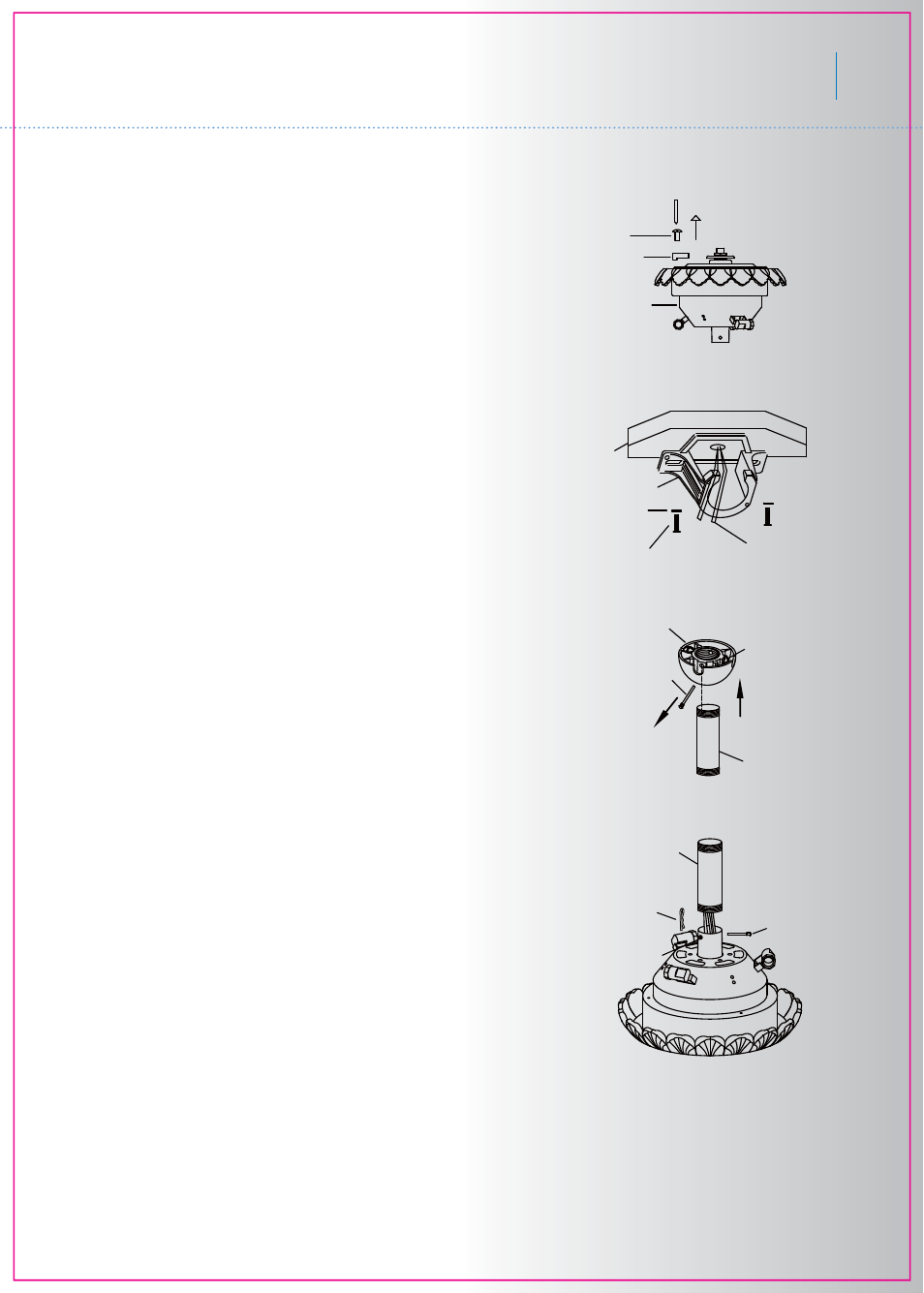

5. HANGING THE FAN
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly:
Step 2. Secure the mounting bracket to the
ceiling outlet box using screws and washers
provided with the outlet box. (Fig. 6)
Step 4. Loosen the two set screws and
remove the hitch pin and lock pin from the top
coupling of the motor assembly. (Fig. 8)
Step 1. Remove the fan motor and housing
assembly from the protective plastic bag
and take the lower styrofoam packing pad
out of the carton. Place the styrofoam pad
on the floor. Then place the fan assembly
into the styrofoam pad with the bottom of the
motor facing up.(The lower foam pad serves
as a holder for the fan during the first stages
of assembly). Remove the plastic motor
shipping block and discard. (Fig. 5)
Step 5. Carefully feed fan electrical wires up
through the downrod. Thread the downrod
onto the motor coupling until the hitch pin
holes are aligned. Next, replace hitch pin and
lock pin, and tighten both set screws.
(Fig. 8)
Step 3. Use a screwdriver to loosen the cross
pin and remove it from downrod assembly.
Loosen the set screw and rotate the hanger
ball off the downrod. (Fig. 7)
Fan housing
Screw
shipping block
Fig. 7
Fig. 5
Fig. 6
Fig. 8
CUL listed
electrial box
Mounting bracket
Mounting screw
120V wires
Washer
Hitch pin
Set screw
Lock pin
Downrod
Downrod
Hanger Ball
Cross Pin
Set Screw
