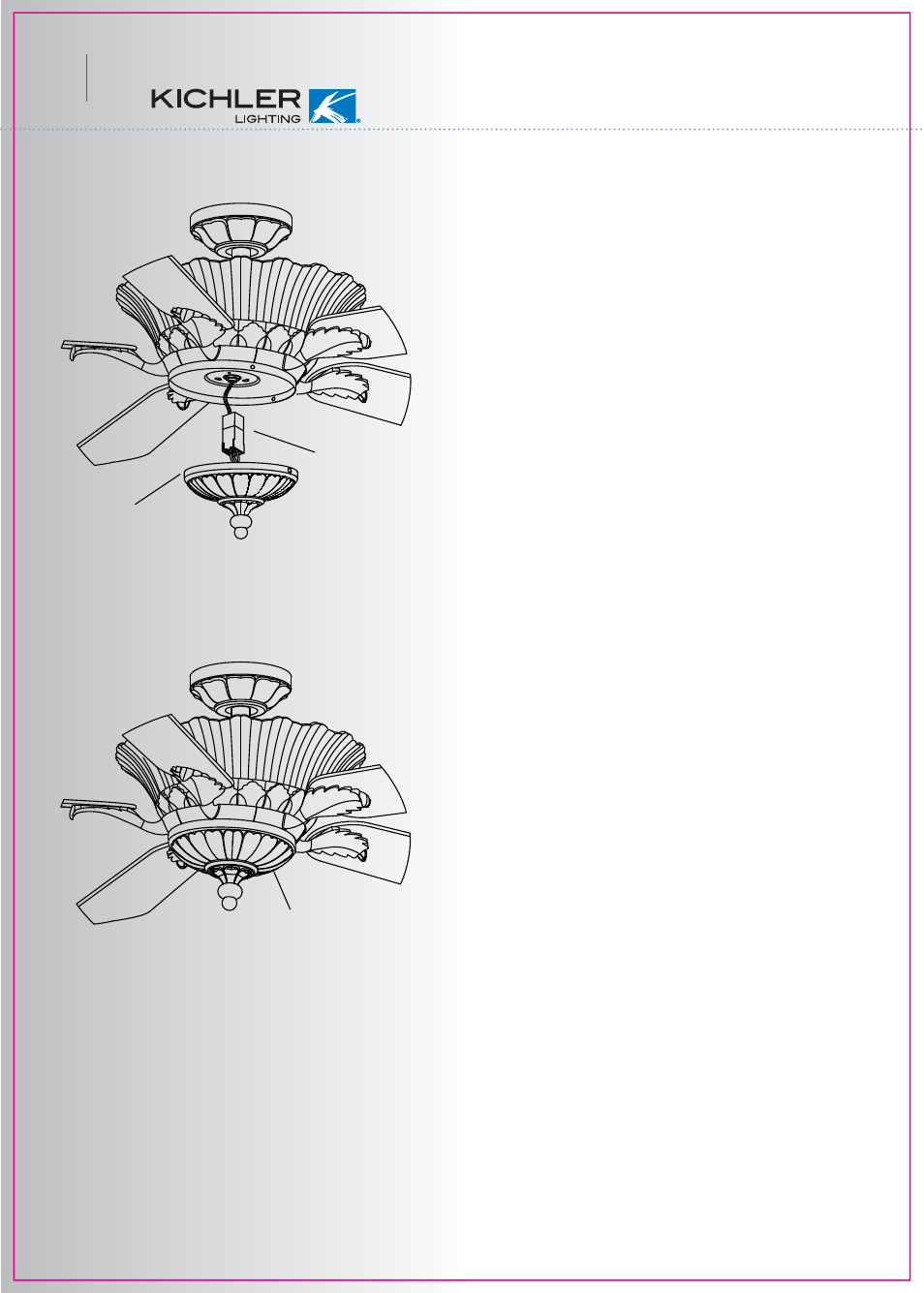

Fig. 21
Fig. 20
11. INSTALLING THE LIGHT PLATE
NOTE: Before continuing, make sure the power
is disconnected by turning off the circuit breaker
Step 1. Loosen the 3 screws from the mounting
plate.
Step 2. The square plastic wiring connectors
will only fit together one way. Match up the color
on the side of each connector, then push them
together until the snap engages. (Fig. 20)
Step 3. Tuck the new connections neatly into
light plate assembly, place the light plate key
holes over the 3 screws previously loosened on
the mounting plate, turn light plate until it locks
in place at the narrow section of the key holes.
Secure by tightening the 3 screws previously
loosened. (Fig. 21)
YOUR NEW KICHLER CEILING FAN IS NOW
REDAY TO USE. REMEMBER TO RESTORE
ALL POWER.
connector
Light Plate Assembly
or removing the fuse at the circuit box.
from the ceiling fan and the switch housing
Switch Housing
