12 Golden Iridescence
TM

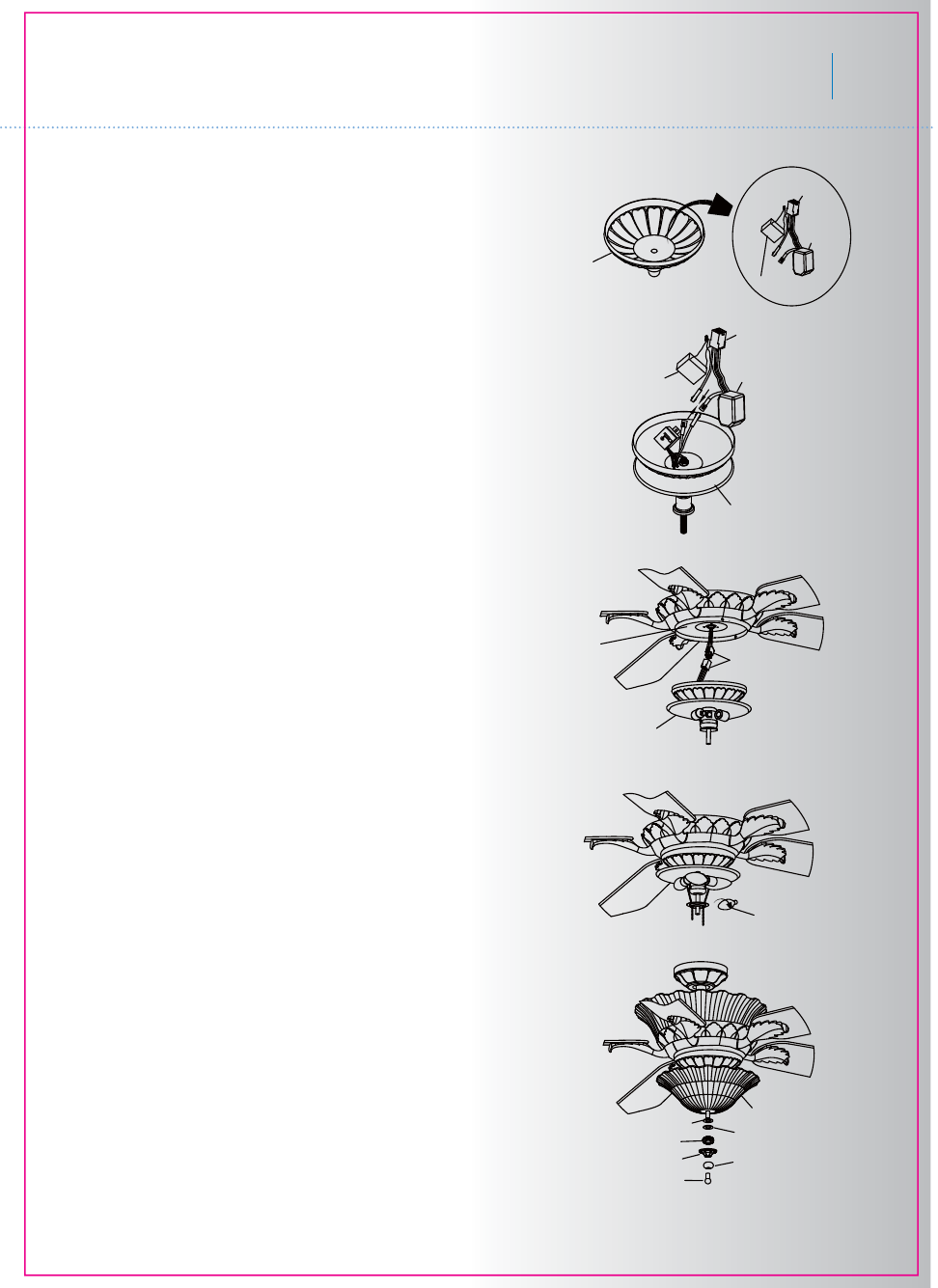

15. LIGHT FIXTURE INSTALLATION
NOTE: Two (2) light fixtures are available for
this ceiling fan. If you purchased one, please
select the appropriate set of installation
instructions below.
BOWL FIXTURE
Step 1. Remove the Wiring Harness from
the Ceiling Fan “Switch Housing”. This
includes the Reverse Module, Capacitor and
9 Pin Connector. Refer to Fig. 29.
Step 2. Connect the Black wire from the
Light Fixture to the blue wire from the Wiring
Harness by pushing them together. Repeat
this procedure for the White wires. Now,
remove the paper from the double sided
tape on each of the components of the
Wiring Harness and attach them to the
inside of the Light Fixture Switch Housing.
Refer to Fig. 30.
Step 3. Attach the Light Fixture wiring to the
Ceiling Fan wiring by taking the “Square 9
Pin Connector” from the Light Fixture and
pushing it into the “Square 9 Pin Connector”
from the Ceiling Fan until the snap engages.
Please note each connector is Color Coded
and will fit together one way only. Refer to
Fig. 31.
Step 4. Now tuck the wiring connections
neatly into the switch housing. Align the key
hole slots on the side of the switch housing
to the three (3) screws on the side of the
mounting plate. Turn the Light Fixture until it
locks in place at the narrow end of the key
holes. Secure by tightening the three (3)
screws previously loosened. Install the
proper size and wattage lamps (provided).
Refer to Fig. 32.
Step 5. Feed the light fixture stem through
the hole in the center of the glass bowl. Slip
the silicon washer, metal washer and
manual nut onto the light fixture stem and
tighten. Slip the decorative plate and deco-
rative ball onto the light fixture stem, then
thread the finial nut onto the stem and
tighten snugly but do not over tighten. Refer
to Fig. 33.
Fig. 29
Fig. 30
Fig. 31
Fig. 32
Fig. 33
Glass bowl
Light fixture
Connector
Mounting plate
Light fixture
Metal washer
Silicon washer
Manual nut
Decorative ball
Finial
Decorative plate
Bulb
M od el N o: PL- 190 B
AC 12 0V 60 HZ
Po we r L im it M ax .190 W (O N/O FF )
Inc an des ce nt or B alla st
LI G HT /B LA CK
9-pin connection
Reverse module
Capacitor
Capacitor
9-pin
connection
Reverse
module
Light plate
assembly
