Installing Optional Mini-GBICs
Hardware Installation 3-3
To prepare and install a Mini-GBIC, proceed as follows:
Preparation
Before installing the Mini-GBIC, proceed as follows:
1. Attach the antistatic wrist strap (refer to the instructions in the antistatic wrist strap package)
before removing the Mini-GBIC from the antistatic packaging.
2. Remove the Mini-GBIC from the packaging.
3. If there is a protective dust cover (see Figure 3-1 , ) on the Mini-GBIC port, do not remove it
at this time.
Installation
To install a Mini-GBIC, refer to Figure 3-1 or Figure 3-2 , and proceed as follows:
1. Hold the Mini-GBIC with its top side facing up and its 7-pin edge connector facing the
port slot .
2. Carefully align the Mini-GBIC with the port slot .
3. Push the Mini-GBIC into the port slot until the Mini-GBIC “clicks” and locks into place.

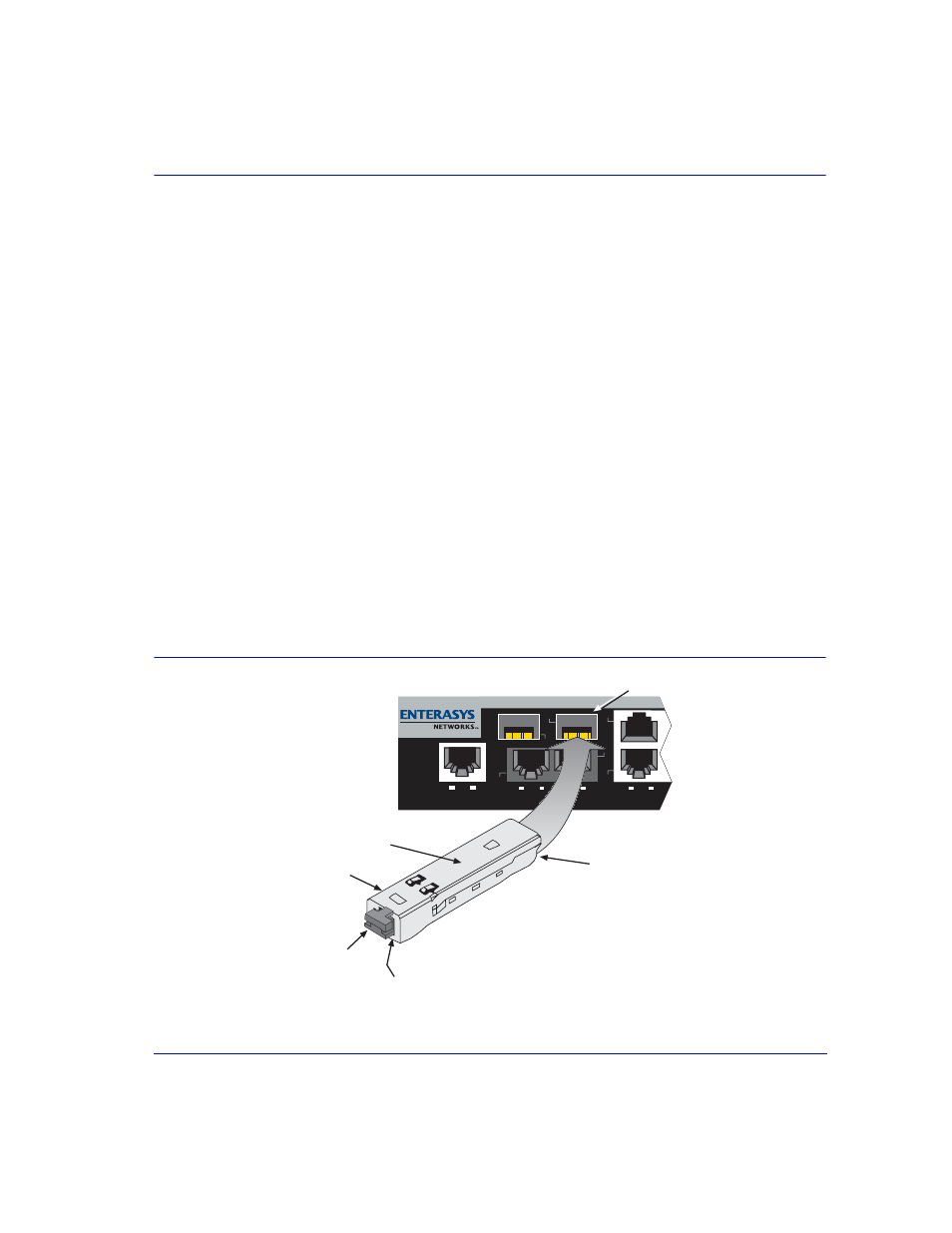

Figure 3-1 Mini-GBIC with MT-RJ Connector (C1H124-48 shown)
Mini-GBIC (MGBIC-MT01) Port slot
Mini-GBIC , top side Mini-GBIC , protective dust cover
7-Pin edge connector (insertion side) Release tab
В
Б
А
Е
3831_01_02
CPU RPS 1 49
51
2 50 52
1
2 52
50
49
51
Г
Д
