1. SAFETY RULES

WARNING! RISK OF ELECTRIC SHOCK

"CAUTION-RISK OF FIRE"
CONSULT A QUALIFIED ELECTRICIAN TO

ENSURE CORRECT BRANCH CIRCUIT
CONDUCTOR.

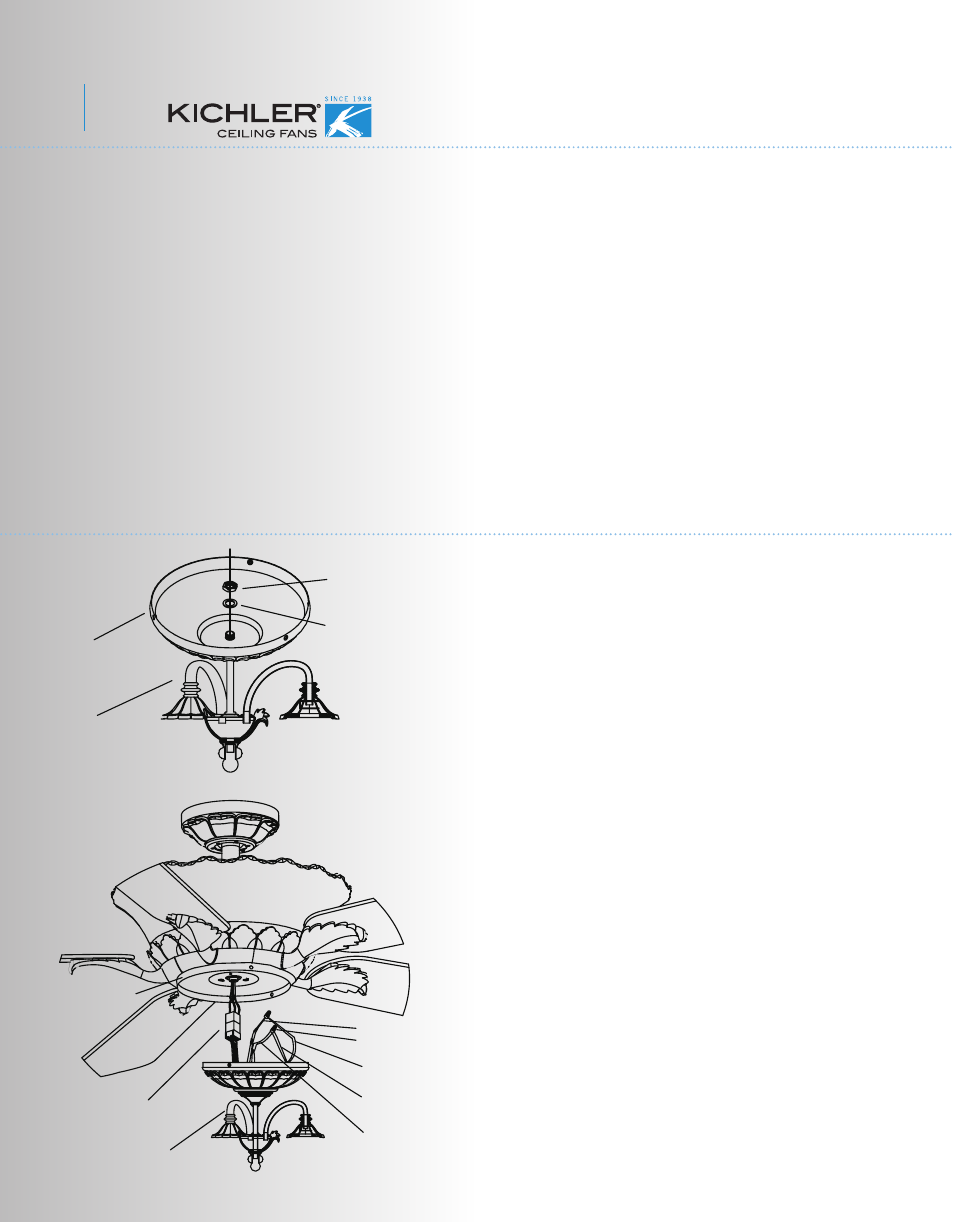

Fig. 1

Fig. 2

2. INSTALLING THE LIGHT KIT

All electrical connections must be in accordance
with local codes, ordinances, or national codes. If
you are unfamiliar with methods of installing
electrical wiring, secure the services of a qualified
electrician.Before starting installation, disconnect
the power by turning off the circuit breaker or
removing the fuse at fuse block. Turning power
off using fan switch (speed control on/off) is not
sufficient to prevent electrical shock.
NOTE: The important safeguards and instructions
appearing in this manual are not meant to cover
all possible conditions and situations that may
occur. It must be understood that common sense,
caution and care are factors which cannot be built
into any product. These factors must be supplied
by the person (s) caring for and operating the unit.

1. Take the fixture out of the box and packing
foam. Remove the Switch Housing cover from
your Ceiling Fan. Remove the decorative plate,
decorative ball and finial from it. Thread the Light
Fixture into the hole in the center of the Switch
Housing cover. On the inside of the Switch Hous-
ing cover, add a lock washer and nut to the Light
Fixture and tighten. (Fig. 1)

Note: All screws must be checked and retight-
ened where necessary.

Switch housing cover

Lock washer

Nut

Light kit

Connector

Plastic nut

Black wire

White wire

Light kit

Mounting plate

2. You can find total 4 pcs plastic nuts preinstalled
on the end of the black and white wires coming
from the switch housing cover and light fixture.
Remove the plastic nuts first, and twist the bare
section of same color wires into one body, then
place the plastic nut on it. Finally match up the
color on the side of the connector and push them
together until the snap engages. (Fig. 2)
