Page 9 19400-3-0406

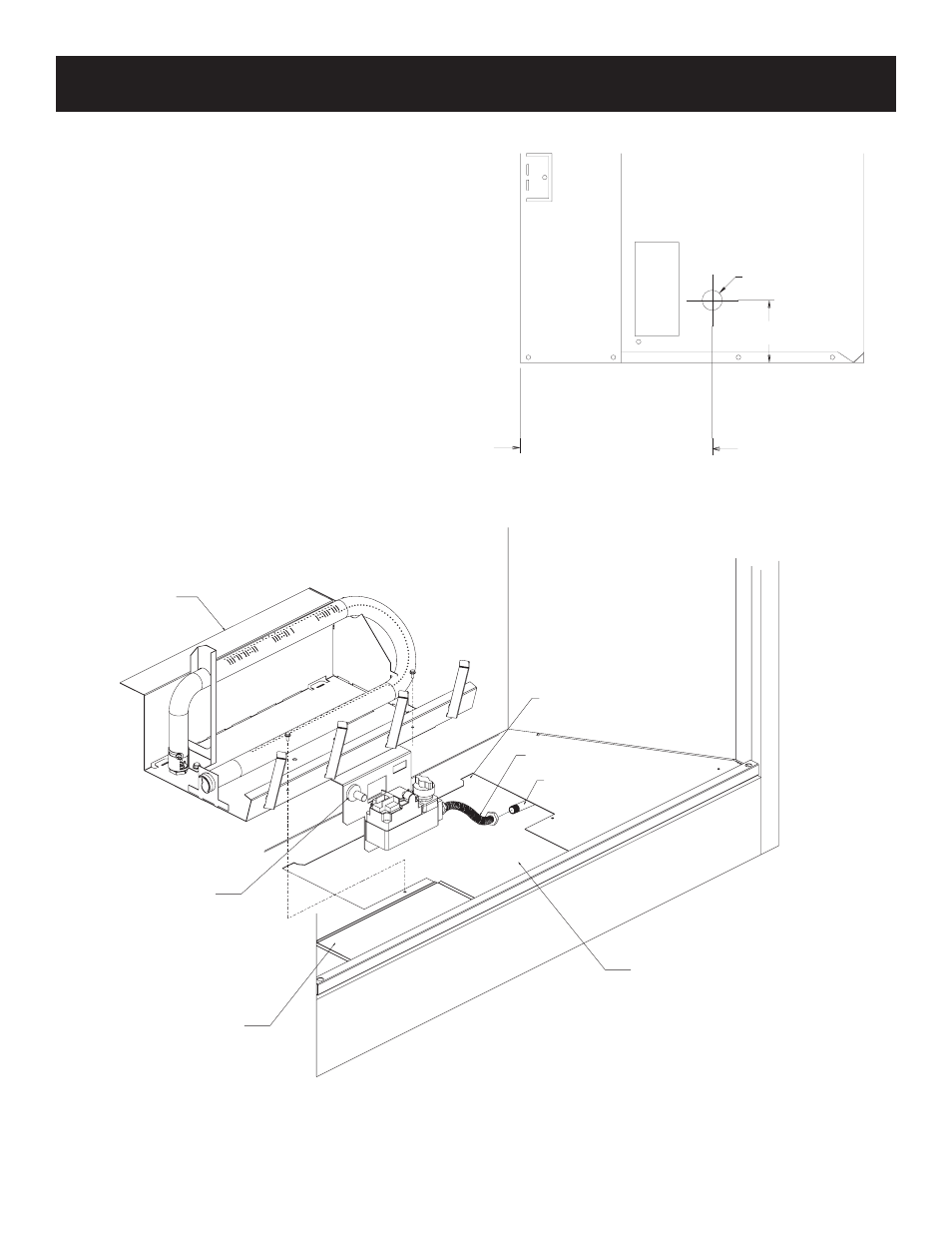

FROM FRONT OF
APPLIANCE TO
GAS LINE HOLE
3 ½”
GAS LINE HOLE
BVD34 SERIES - 10”
BVD,P (36,42) - 13 ½”
Figure 7
BURNER ASSEMBLY
REAR TAB (BURNER BASE)
LOCATIONS
FLEXIBLE GAS CONNECTOR
GAS SUPPLY LINE
FIREBOX BOTTOM
CUTOUT ACCESS
SLIDING
VALVE ACCESS
COVER
PIEZO
IGNITER
Checking Manifold Pressures
Both Propane and Natural gas valves have a built-in pressure
regulator in the gas valve. Natural gas models will have a manifold
pressure of approximately 3.5" w.c. (.871kPa) at the valve outlet
with the inlet pressure to the valve from a minimum of 4.5" w.c.
(1.120kPa) for the purpose of input adjustment to a maximum of
14.0" w.c. (3.484kPa). Propane gas models will have a manifold
pressure approximately 10.0" w.c. (2.49kPa) at the valve outlet
with the inlet pressure to the valve from a minimum of 10.8" w.c.
(2.68kPa) for the purpose of input adjustment to a maximum of
14.0" w.c. (3.484kPa).
Figure 8
GAS SUPPLY (CONT)
