Page 14 19400-3-0406
1
4
5
3
2
Before you begin: if you are installing logs into the BVD34 or
BVD36 model, then this fireplace is supplied with a set of five
ceramic fiber logs. Do not handle these logs with your bare hands!
Always wear gloves to prevent skin irritation from ceramic fibers.
After handling logs, wash your hands gently with soap and water
to remove any traces of fibers.
The positioning of the logs is critical to the safe and clean opera-
tion of this fireplace. Sooting and other problems may result if the
logs are not properly and firmly positioned in the fireplace. Please
refer to Figure 16 and Figure 17 and corresponding WARNING
when completing following log placement instructions.
1. Place front logs (#1 and #2) between front grate flange and
main burner. Align notches on front logs with locator tabs in
base.
2. Place middle log (#3) between front and rear loop of burn-
er.
Note: Do not place log on top of pilot assembly.
3. Place rear log (#4) on rear log shelf. Bottom flange of log
must be placed between the log shelf and burner tube.
4. Place branch (#5) onto (#1) log and flat area on (#3) log. The
bottom of the branch is to be placed behind the grate tang that
is second from the left.
5. Place decorative rock in front of grates and sides of main
burner pan.
ATTENTION: Do not place decorative rock on logs or burner.
The decorative rock should only be placed on the fireplace
floor.
EMBER MATERIAL PLACEMENT ON BURNER
6. After all logs are positioned properly, apply Rockwool ember
material to the front burner port area. To apply, carefully
separate the ember material into small amounts no larger than
"dime size" pieces. Fluffed up pieces one layer thick on top
of the burner generally works best, and will provide the best
ember glow. Do not place ember material more than one layer
thick. No more than (1) small packet of ember material (part
no. 15999) evenly placed on the burner, is recommended on
BVD34 and BVD36 models. Using additional ember material
will decrease the amount of ember glow effect. Extra ember
material should be saved for future ember applications as
necessary. See Figure 17.

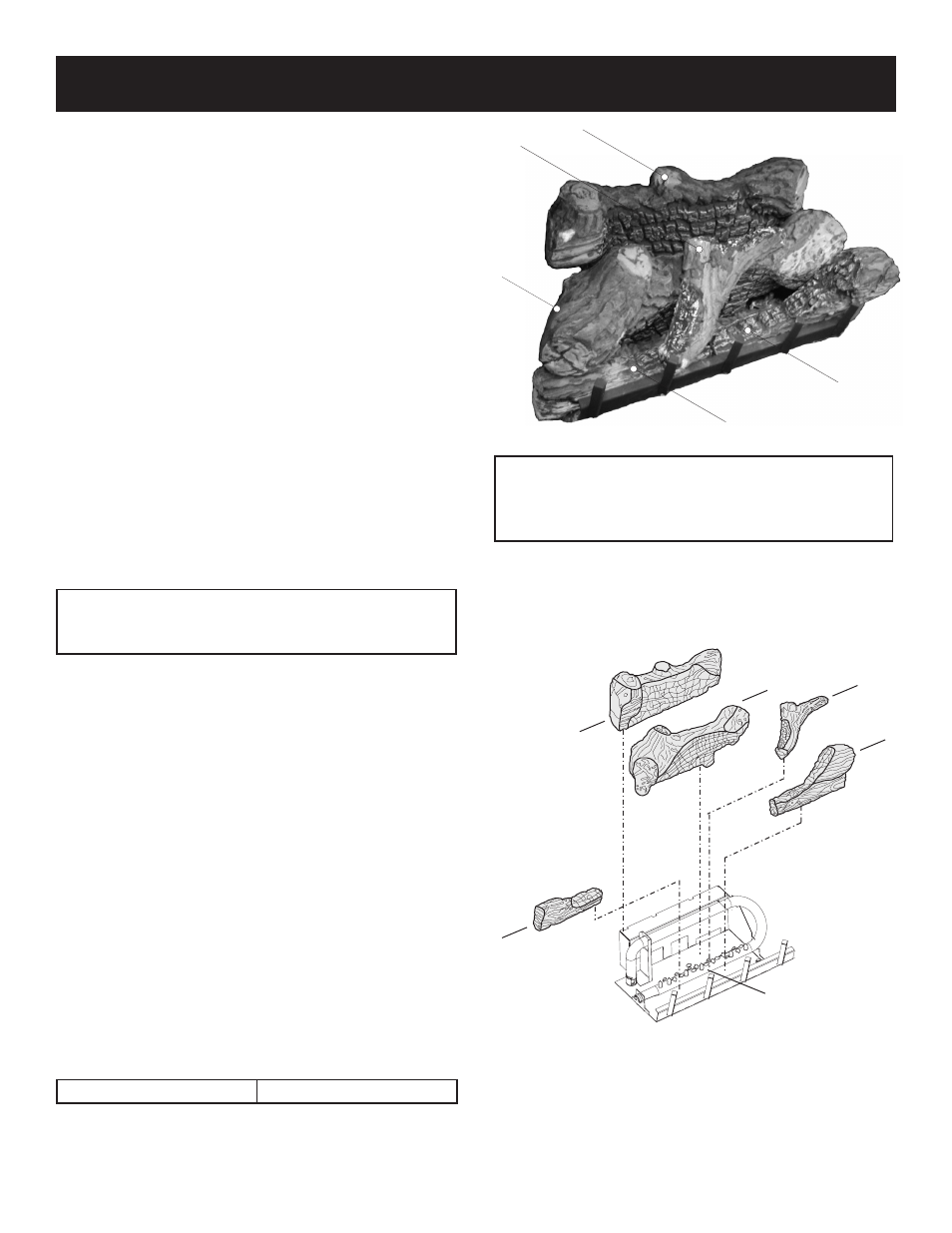

Figure 16
WARNING: Failure to position the parts in accordance
with this diagram or failure to use only parts specifically
approved with this appliance may result in property
damage or personal injury.
Attention: Do not use Figure 16 or Figure 17 to order logs. Refer
to parts list on page 28 and parts view on page 29 to order logs
and/or ember material for your appropriate fireplace model.
Figure 17
1
2
3 5
4
EMBER MATERIAL
PLACEMENT
LOG PLACEMENT (5 LOG SET)
Optional Platinum Bright Ember Kits are available from your
Fireplace Dealer. These embers may be used with all BVD/BVP
Series fireplaces. Order and use as indicated as below.
Platinum Bright Embers PE-20-1
Note: A signle layer of embers is to be used when applying
Platinum Bright Embers (alone or in combination with production
embers) to the burner.
