LAN

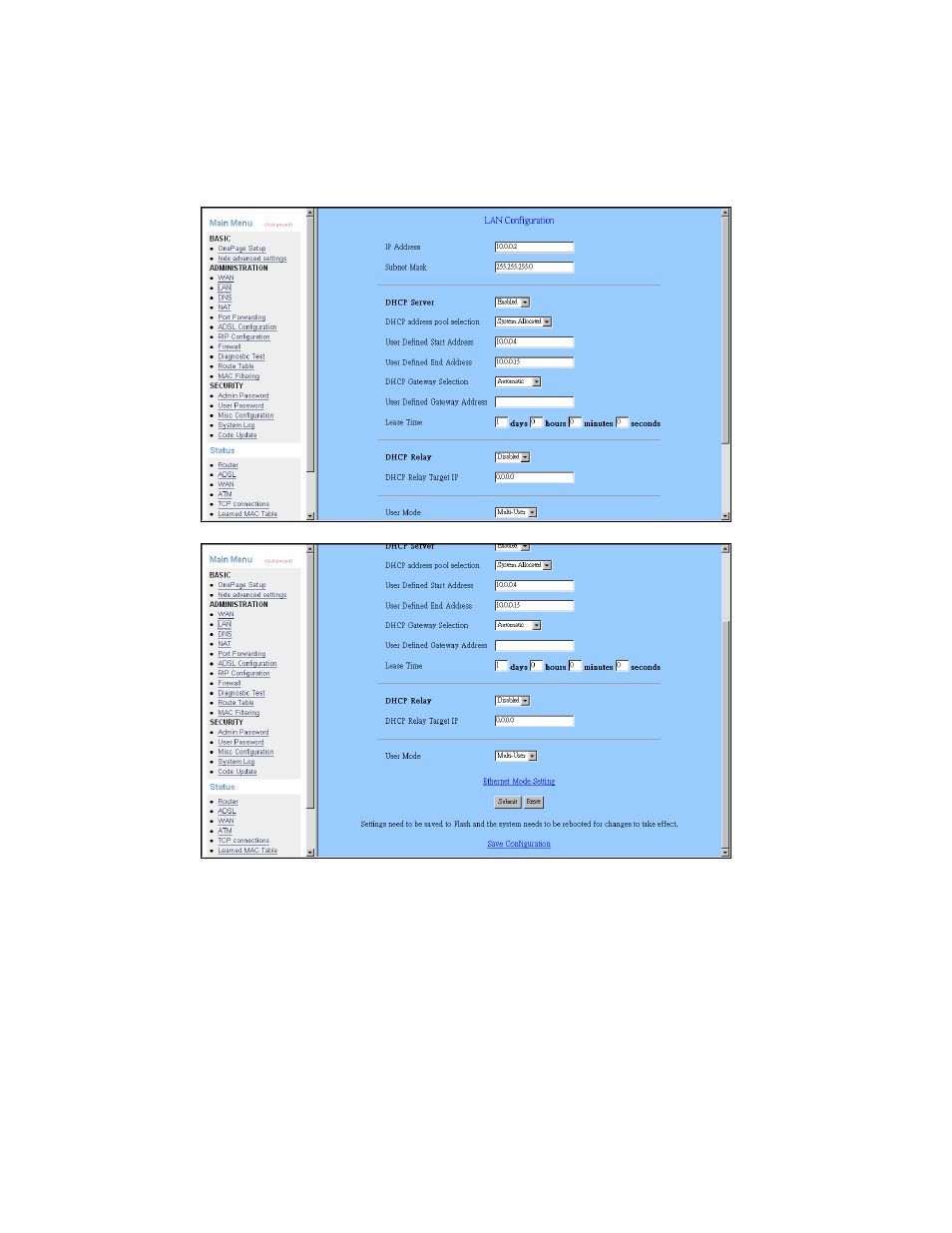

The LAN configuration page allows you to set the configuration for the LAN port.
LAN IP Address & Subnet Mask: The default is 10.0.0.2 and 255.0.0.0 you can
change it to another private IP address, such as 211.22.10.191 and
255.255.255.0. For most configurations it is recommended to leave it as default.
DHCP Server: System Allocated. The DHCP address pool is based on LAN port IP
address plus 12 IP address. For example, the LAN IP address is 10.0.0.2; the
DHCP address pool is at the range of 10.0.0.3 to 10.0.0.14.
User Defined: The DHCP address pool is at the range of User Defined Start Address
and User Defined End Address. The maximum pool size can be 253 IP
address:255 total IP address-1 broadcast address-1 LAN port IP address.
