SPECIFICATIONS KF755F

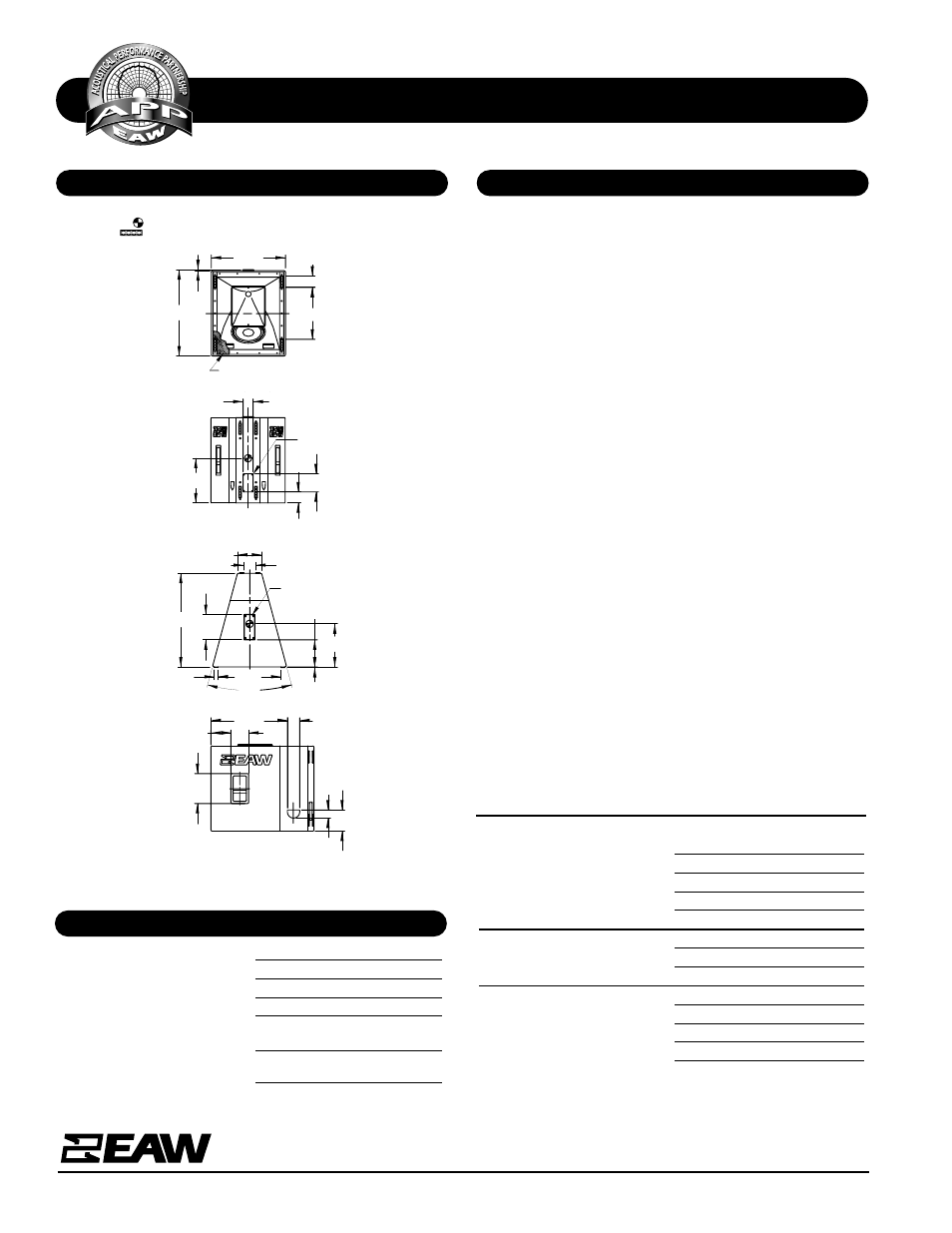

DIMENSIONAL DRAWING
A & E SPECIFICATIONS
One Main Street, Whitinsville, MA 01588
508 234 6158
Toll Free 800 992 5013
FAX 508 234 8251
www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice.
KF755F/2 pp
October 2001
Printed in USA
Cabinet Type (shape)
Trapezoid
Enclosure Materials
Baltic birch plywood
Finish
Black catalyzed polyurethane
Connectors
2x Neutrik NL8 Speakon
Suspension Hardware
8x 4-position flytracks
(4 each front and rear)
Grille
Powder coated perforated steel,
foam backed
Dimensions
inches
millimeters
Height
31.4
797
Width (Front)
27.0
686
Width (Rear)
8.8
233
Depth
34.0
864
Trapezoid Angle
15 degrees per side
Weights
pounds
kilograms
Net Weight 168
76.4
Shipping Weight
178
81.0
Companion Systems
Sub Bass
SB750F/SB1000e/KF940
Full Range
KF750F
Accessories
KF700 Series caster pallet
The three-way full range downfill loudspeaker system shall
incorporate a 12-in LF transducer, a 10-in MF cone transduc-
er and a 2-in exit/4-in voice coil compression driver HF trans-
ducer.
The LF driver shall be mounted in a vented enclosure tuned
for optimum low frequency response. The MF driver shall be
mounted on an asymmetrical, large-format horn and shall be
coupled to a phase plug whose geometry exactly matches
that of the driver. The HF driver shall be loaded on an asym-
metrical constant directivity horn with a nominal coverage
pattern of 35° (h) x 35° (v, 0° to -35°).
System frequency response shall vary no more than ±3 dB
from 48 Hz to 18 kHz measured on axis. The loudspeaker’s
subsystems (LF/MF/HF) shall produce a Sound Pressure Level
(SPL) of 103/109/115 dB SPL on axis at 1 meter with a power
input of 1 Watt, and shall be capable of producing a peak
output of 132/140/144 dB SPL on axis at 1 meter. The sub-
systems (LF/MF/HF) shall handle 600/400/200 Watts of
amplifier power (continuous) and shall have nominal imped-
ances of 8/8/8 Ohms.
The loudspeaker enclosure shall be trapezoidal in shape. It
shall be constructed of multi-ply void-free cross-grain-lami-
nated Baltic birch plywood and shall employ extensive inter-
nal bracing. It shall be finished in black catalyzed
polyurethane. Input connectors shall be 2x Neutrik NL8
Speakon. A total of eight 4-position flytracks (4 each front
and rear) shall be provided. The front of the loudspeaker shall
be covered with a powder coated perforated steel grille.
The three-way full range downfill loudspeaker system shall be
the EAW model KF755F.
F
CABINET TO BE SYMMETRICAL ABOUT CENTERLINE DESIGNATIONS.
INDICATES CENTER OF BALANCE.
INDICATES FLY TRACK MOUNTING POINTS.
FRONT
18.88
L
C
27.00
GRILL PARTIALLY SHOWN
4.13
31.38
.38
TOP/BOTTOM
1
7
4.44
(.25)
STACK PAD
L
C
22.90
(1.37)
(8.78)
9.25
34.00
9.81
15.62
30
°
SIDES
3.00
10.87
7.75
7.28
4.50
6.44
27.80
2
BACK
INPUT
L
C
6.63
4.00
16.25
3.63
510776 (0)
7/26/99
Manufacturing tolerances are +/- 0.13 and +/- 1°
PHYSICAL continued
