E-60
Using the Cradle-type Battery Charger (HA-H30CHG)
The optionally available Cradle-type Battery Charger (HA-H30CHG) lets you charge
the Handheld Terminal’s battery pack simply by placing the Handheld Terminal onto
the charger.

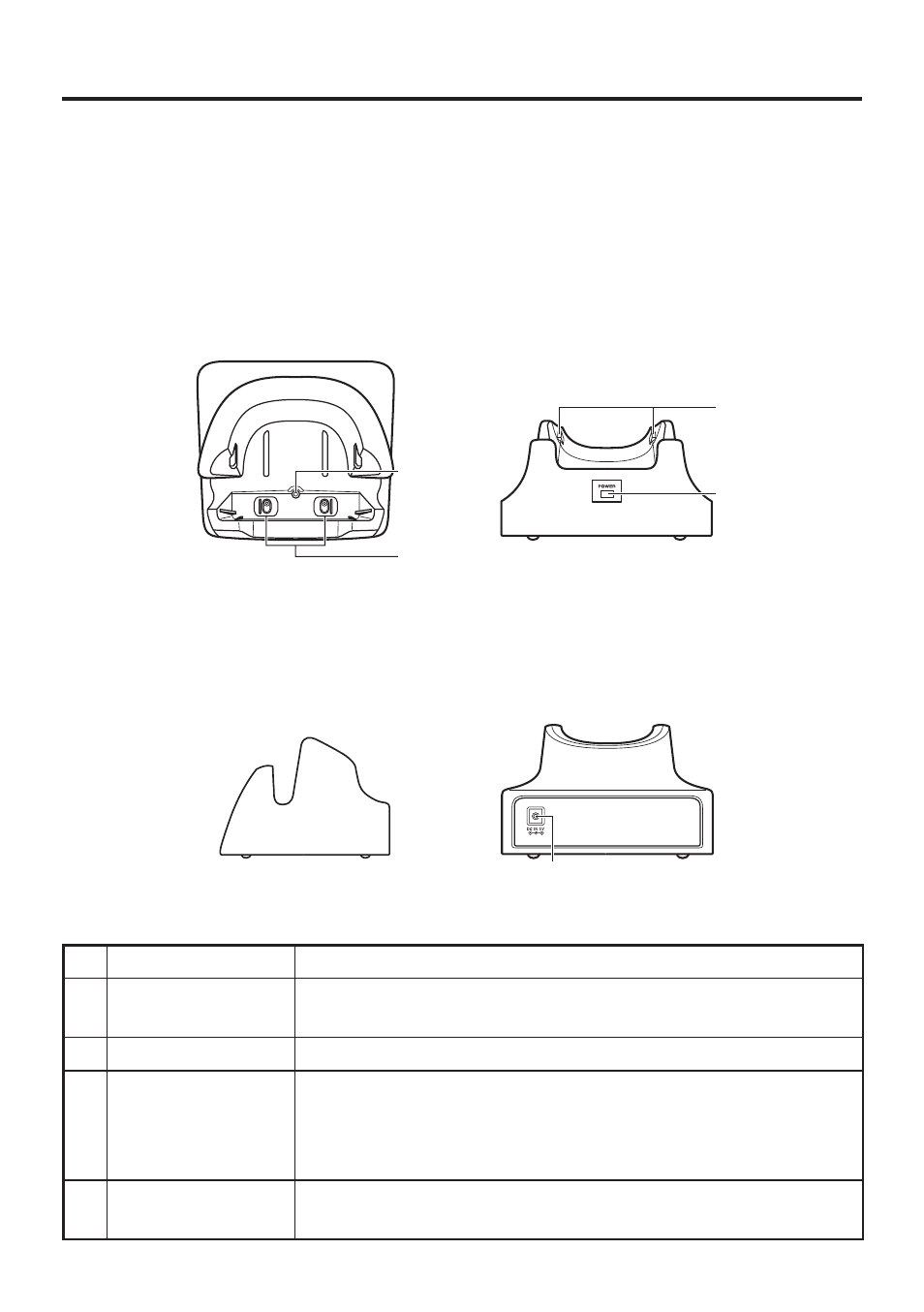

General Guide
Top
2
3
Front
5
4
1
Back Right
1 AC Adaptor Jack Connect the AC adaptor (sold separately) here.
2 Terminal Detect
Switch This switch detects when the IT-800 is mounted correctly on the
charger.
3 Power Terminals Power is supplied to the IT-800 via these contacts.
4 Power Indicator
LED This LED indicates the power status and the mountting status of
the IT-800.
Off: IT-800 is not installed
Green: Power on, IT-800 mounted correctly
5 Mount Hooks These hooks are used to stabilize the Handheld Terminal when
mounting it on the cradle.
