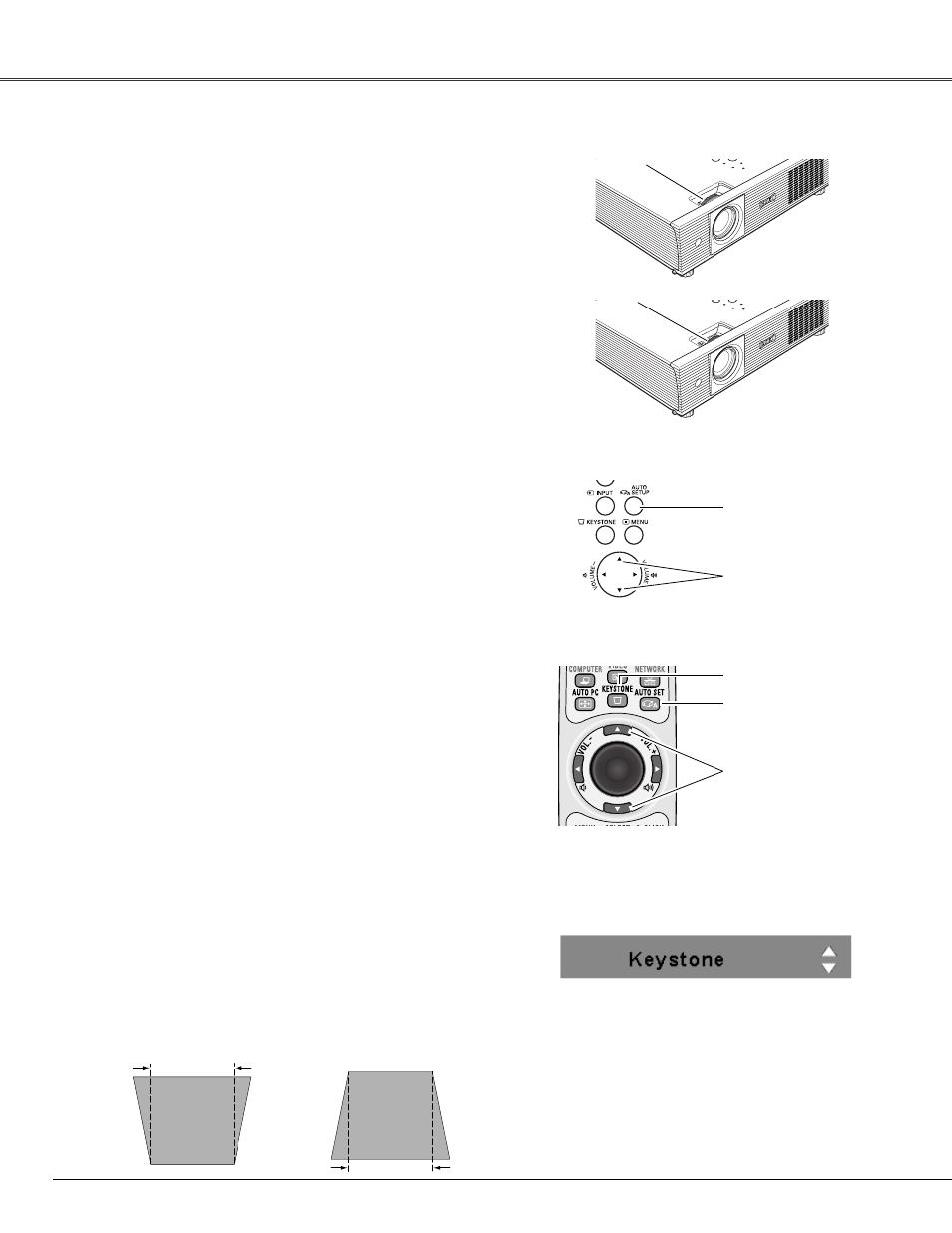

26

Basic Operation

If a projected picture still has keystone distortion after
pressing the AUTO SETUP button on the top control or the
AUTO SET button on the remote control, correct the image
manually as follows:

Press the KEYSTONE button on the remote control. The
Keystone dialog box appears. Use the Point

ed

buttons to

correct keystone distortion. The keystone adjustment can
be stored (see page 48).

Auto setup function is provided to automatically correct
Keystone distortion according to the projector’s tilt and
adjust the computer display parameters (Fine sync, Total
dots, and Picture position) by just pressing the AUTO
SETUP button on the top control or the AUTO SET button
on the remote control. The operational setup for the Auto
setup can be changed in the Setting menu. Refer to page
47 for the setting of the Auto setup function.

Notes:

•Auto Keystone corrects vertical distortion only; it does not correct

horizontal distortion.

•Auto Keystone cannot work when Ceiling feature is set to “On” in

the Setting menu (p.51).

•Perfect correction of the image distortion cannot be ensured with the

Auto setup function. If the distortion cannot be corrected properly by
pressing the AUTO SETUP/AUTO SET button, adjust manually by
pressing the KEYSTONE button on the remote control or selecting
Keystone in the Setting menu (p.48).

Rotate the Zoom Ring to zoom in and out.
Rotate the Focus Ring to adjust the focus of the image.

Zoom Ring

Focus Ring

Keystone Correction

Reduce the upper width
with the Point

e

button.

Reduce the lower width
with the Point

d

button.

• The white arrows indicate that there is no

correction.

• A red arrow indicates the direction of correction.
• An arrow disappears at the maximum correction.
• If you press the KEYSTONE button on the remote

control once more while the keystone dialog box is
being displayed, the keystone adjustment will be
canceled.

Top Control

POINT

ed

buttons

AUTO SET UP
button

Remote Control

KEYSTONE button

POINT

ed

buttons

AUTO SET button

Auto Setup Function

Zoom and Focus Adjustment
