11

Part Names and Functions

!3 S-VIDEO IN

Connect the S-VIDEO output signal from video
equipment to this jack (p.20).

!0 AUDIO IN

Connect the audio output signal from video
equipment connected to o or !3 to this jack. For a
mono audio signal (a single audio jack), connect it
to the L (MONO) jack (p.20).

!1 COMPUTER/COMPONENT AUDIO IN

Connect the audio output (stereo) signal from a
computer or video equipment connected to r or
y to this jack (pp.19, 21).

o VIDEO IN

Connect the composite video output signal to this
jack (p.20).

r COMPUTER IN 2/COMPONENT IN

Connect the computer or component video (or RGB
Scart) output signal to this terminal (pp.19, 21).
Use the supplied VGA cable or a Component-VGA
cable commercially available.

!2 AUDIO OUT (VARIABLE)

Connect an external audio amplifier to this jack
(pp.19–21).
This terminal outputs sound from AUDIO IN terminal
(!0 or !1).

q R/C JACK

When using the wired remote control, connect the
wired remote control to this jack with a remote
control cable (not supplied).

e SERVICE PORT

This jack is used to service the projector.

y COMPUTER IN 1/DVI-I

Connect computer output (Digital/Analog DVI-I
type) to this terminal (p.19).

!4 USB (Series A)

Connect the supplied USB Wireless LAN Adapter or
optionally available USB memory for Memory
viewer operation (refer to the owner’s manual
supplied with the optionally available USB memory).

u LAN Connection Terminal

Connect the LAN cable (refer to the owner’s manual
“Network Set-up and Operation”).

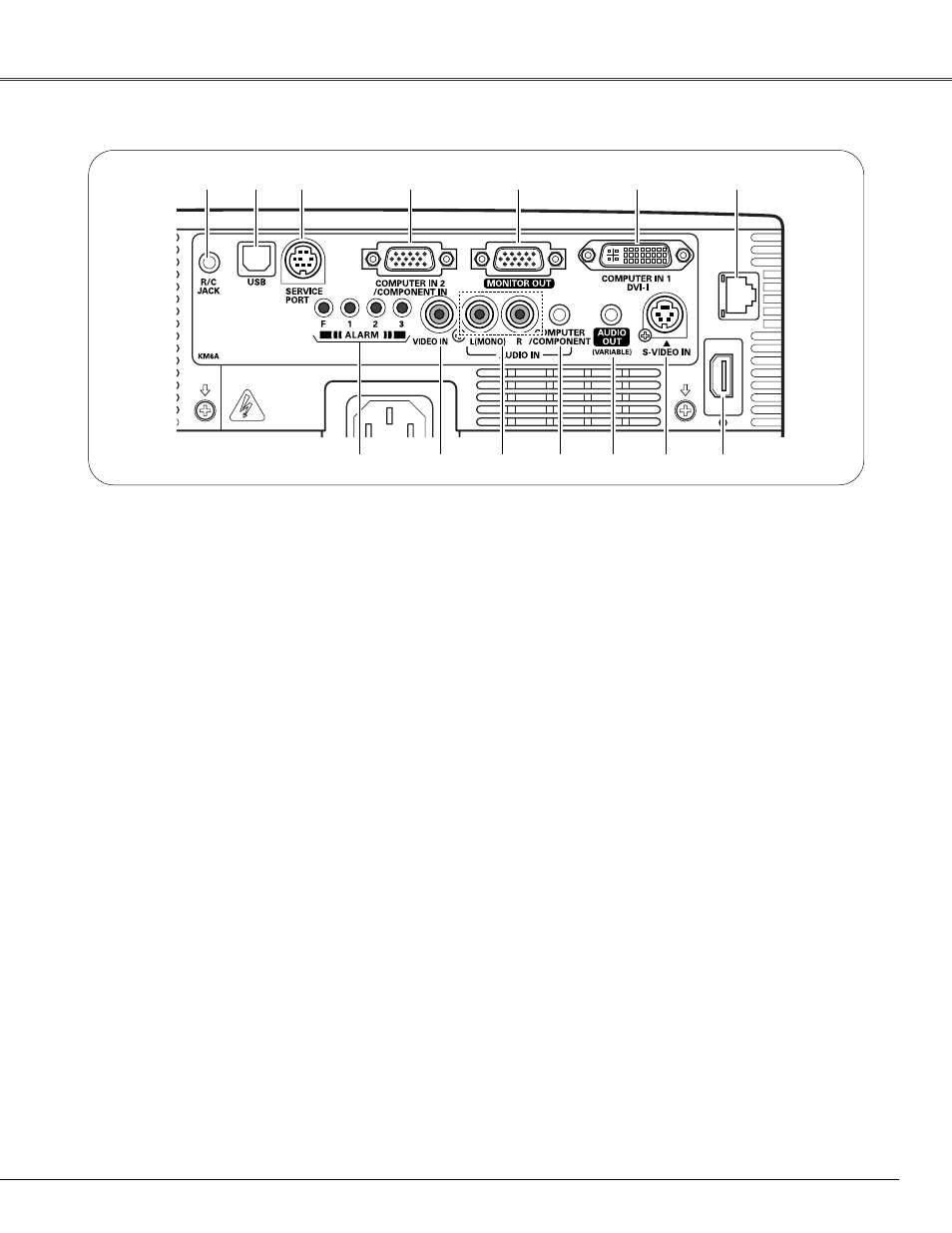

Rear Terminal

q

w

e

r

t

y

i

u

o

!0

!1

w USB (Series B)

In order to operate the computer with the remote
control and use the PAGE

ed

buttons on the

remote control during a presentation, connect the
USB port of the computer to the USB terminal with
a USB cable (not supplied) (pp.13, 19).

t MONITOR OUT

This terminal can be used to output the incoming
signal from COMPUTER IN 2/COMPONENT IN
terminal to the other monitor (p.19).

i ALARM buttons

Use these buttons when setting up the Alarm
function (pp.58–59).

!2

!3

!4
