Installation

Connecting to a Computer

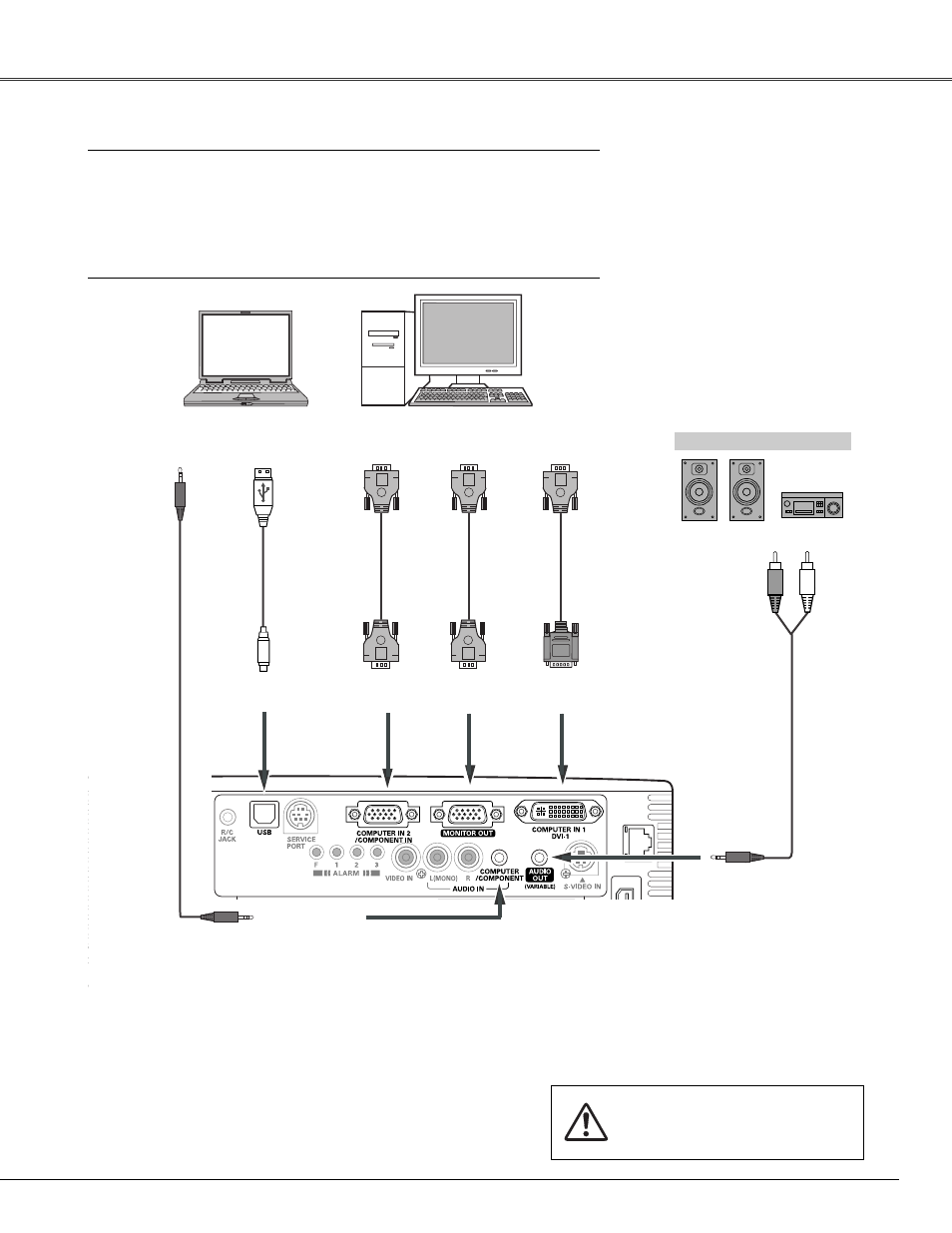

Cables used for connection

• VGA Cable (Mini D-sub 15 pin)*
• DVI-I/VGA Cable
• USB Cable
• Audio Cables
(*One cable is supplied; other cables are not supplied with the projector.)

External Audio Equipment

DVI-I/VGA
cable

USB cable

Audio cable
(stereo)

USB port

Audio Output

USB

COMPUTER/
COMPONENT
AUDIO IN

AUDIO OUT
(stereo)

Audio Input

COMPUTER IN 1

DVI-I

Notes:

•Input sound to the COMPUTER/COMPONENT AUDIO IN terminal

when using the COMPUTER IN 1/DVI-I and the COMPUTER IN 2/
COMPONENT IN terminal as input.

•When connecting the AUDIO OUT to external audio equipment, the

projector’s built-in speaker is disconnected.

•USB cable connection is needed when operating the computer with

the remote control or using the PAGE

ed

buttons on the remote

control.

Monitor

Output

COMPUTER IN 2/

COMPONENT

VGA cable

MONITOR

OUT

Audio cable
(stereo)

Unplug the power cords of both the
projector and external equipment from
the AC outlet before connecting cables.

VGA cable

Monitor

Output

Monitor

Input
