www.enviromaster.com

5

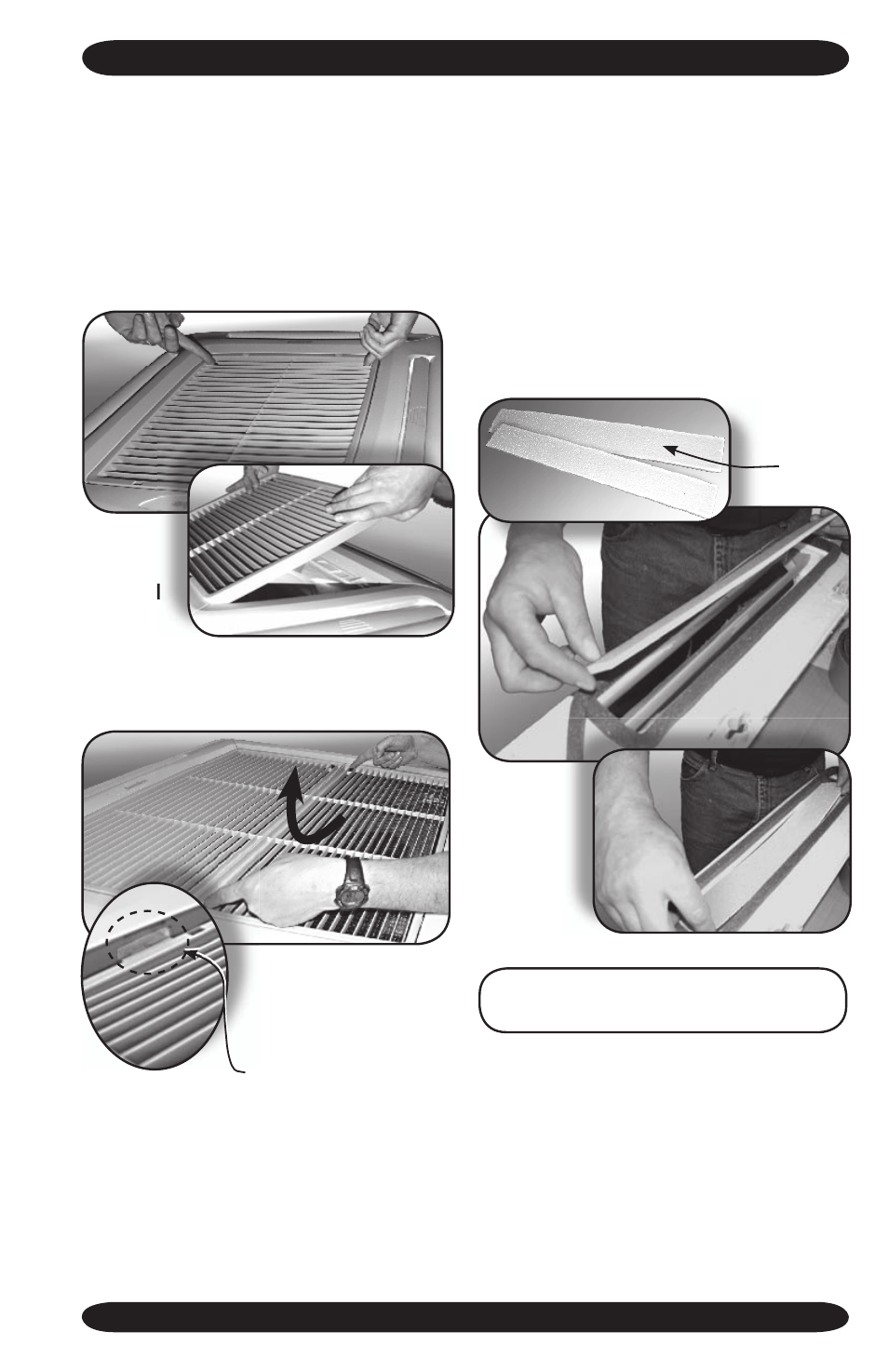

CAC Cassette Evaporator

The small unit has is one grille and one fi lter.

BLANKING OFF (Optional)

Medium units have two hinged grills that open

in the middle and two fi lters.

Hing

The fascia discharge slot(s) will need blanking off when ducts are used to channel the

conditioned air to other areas. The two polystyrene blanking off strips (provided) will

need to be positioned in the fascia discharge slots to direct the air to the ducts.

Blanking-Off

Pieces

Small

Unit

Shown

The large units have three hinged grills and

three fi lters.

Medium

Unit Shown

Large Unit

Not Shown

If the fascia discharge slot needs blanking off:

1. Remove the inlet grille(s) and fi lter(s).

2. Once the grille(s) and fi lter(s) are re-

moved turn the fascia over so the poly-

styrene insulation is exposed.

3. Take one of the polystyrene blanking off

pieces and push it into the recess in the

polystyrene fascia insulation.

NOTE: Up to two non-adjacent sides

can be blanked off.
