www.enviromaster.com CAC Cassette Evaporator 26
Medium Cabinet • CAC 18,000 - 24,000

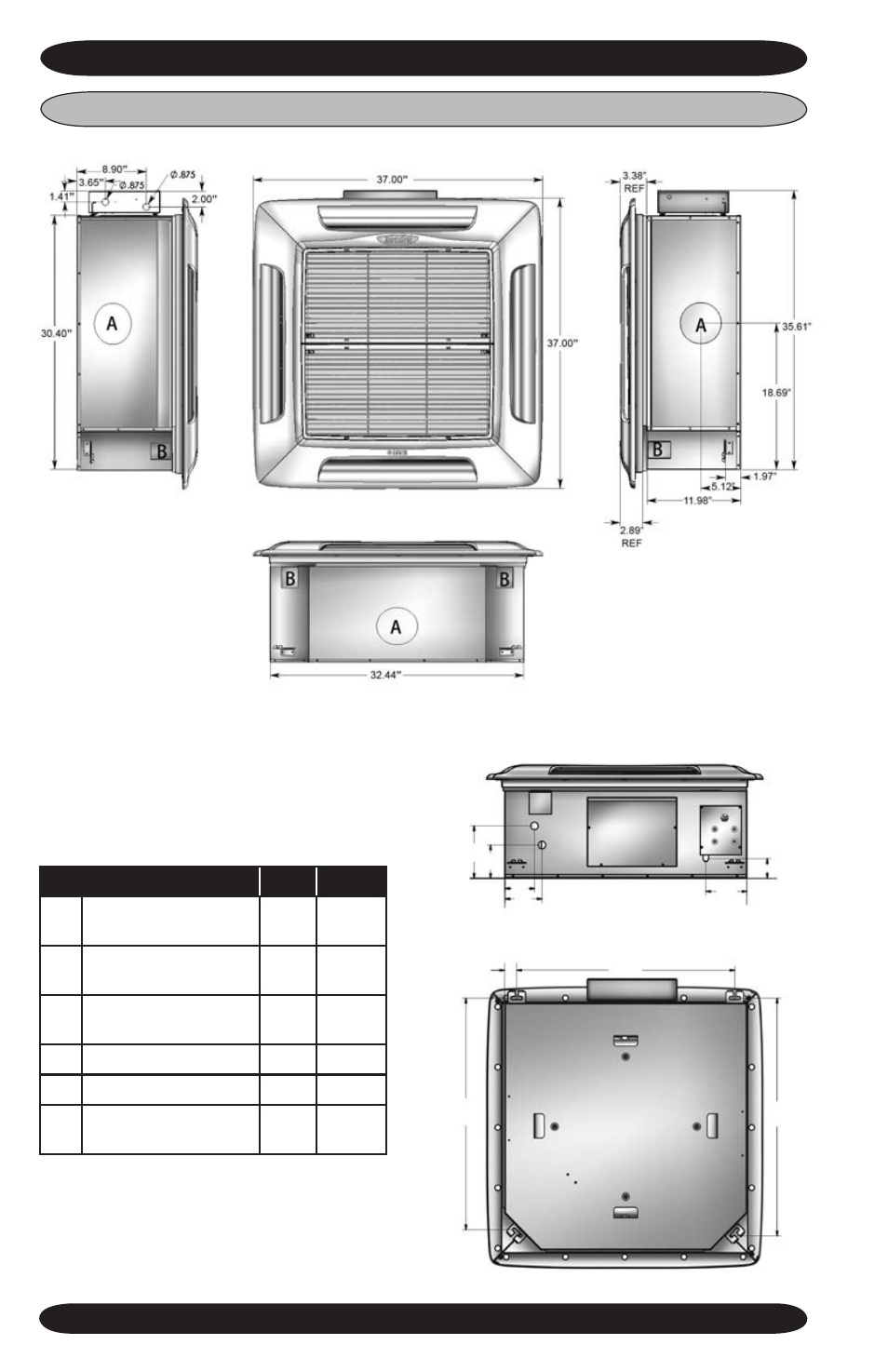

CAC CASSETTE DIMENSIONS
FEATURE QTY. SIZE
A
Optional Discharge
Knockout
3 3” Ø
B
Fresh Air Inlet
Knockout
3 3” x 3”
C
Condensate
Discharge
1 ½” Ø
D Suction 1 ¾” Ø
E Liquid 1 ⅜” Ø
F
Condensate Pump
Access
1
-
Control
Box
B
F
E
D
C
6.87”
4.37”
3.97”
4.93”
30.41”
1.63”
TYP
31.20”
29.19”
5.50”
2.58”
