8
CEILING
COVER
PIN
DOWNROD
HANGER
BALL
SETSCREW

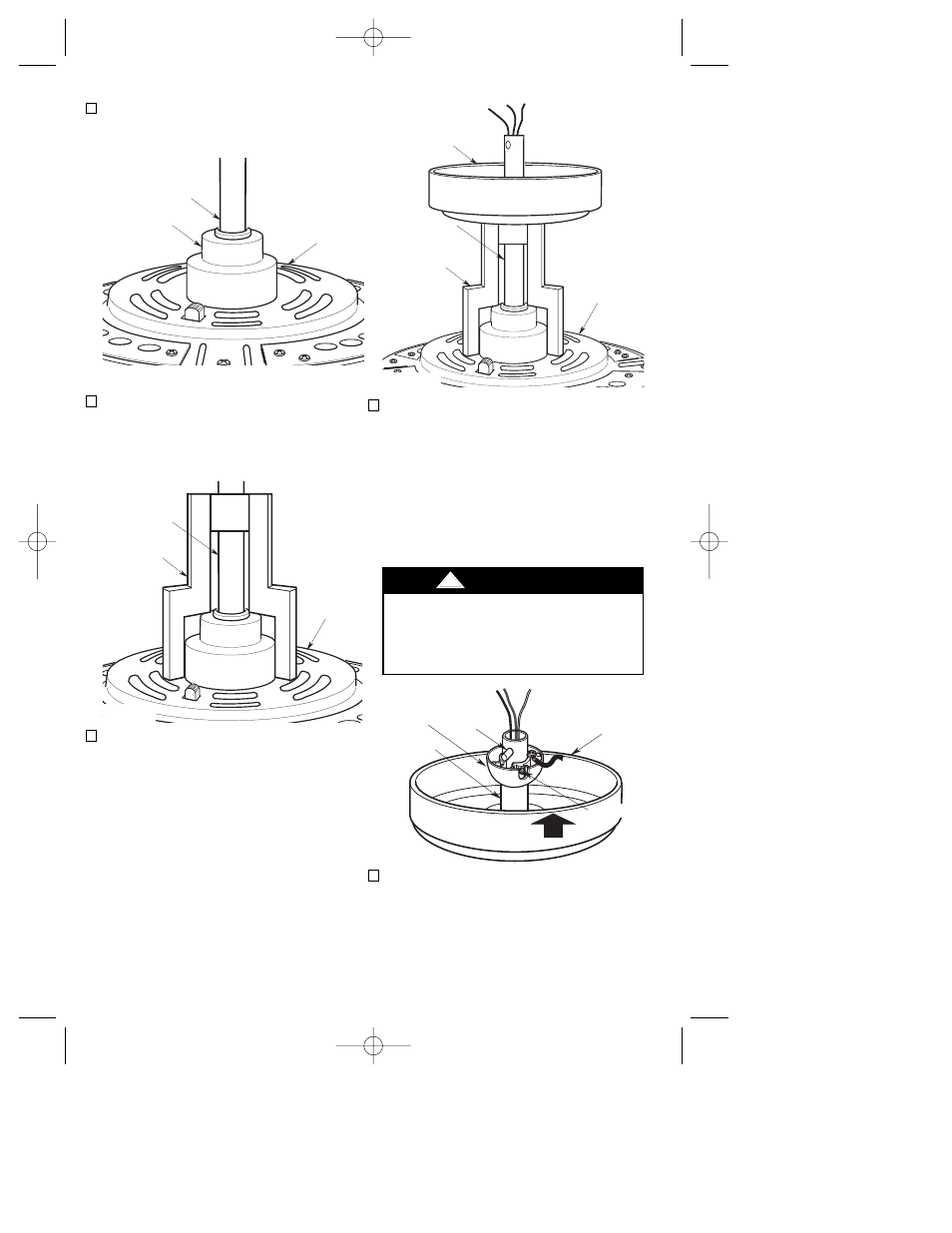

Figure 14
It is critical that the pin in the hanger ball
is properly installed and the setscrew
securely tightened. Failure to verify that
the pin and setscrew are properly
installed could result in the fan falling.
! WARNING
16. Reinstall the hanger ball (Figure 14) on
the downrod as follows. Route the motor
leads through the downrod. Position the
pin through the two holes in the downrod
and align the ball so the pin is captured
in the groove in the top of the hanger
ball. Pull the hanger ball up tight against
the pin and securely tighten the setscrew
in the hanger ball. A loose setscrew
could create fan wobble.
17. The fan comes with blue, black and
white leads that are 80” long. Before
installing fan, measure up approx-
imately 6 to 9-inches above top of
hanger ball/downrod assembly. Cut off
excess leads and strip back insulation
1/2-inch from end of leads.
13. Slide the coupler cover on the
downrod until it rests on the fan motor
assembly (Figure 11).
14. For Use With The 8” Downrod Only:
Position the decorative upper scroll
over the downrod. Slide scroll down
onto the downrod until it rest on the fan
motor assembly (Figure 12).
15. Place the ceiling cover over the
downrod. Be sure both the ceiling
cover, decorative upper scroll (use
with 8” downrod only) and coupler
cover are oriented correctly (Figure
13).
DOWNROD
COUPLING
COVER
FAN MOTOR
ASSEMBLY
Figure 11
FAN MOTOR
ASSEMBLY
8" DOWNROD
DECORATIVE
UPPER SCROLL
Figure 12
FAN MOTOR
ASSEMBLY
8" DOWNROD
DECORATIVE
UPPER SCROLL
CEILING
COVER
Figure 13
