7
Active Subwoofer Output Jack
This system includes an output jack for the connection of an optional active/powered
subwoofer. The subwoofer must have its own power supply and AC power cord.
You cannot use a passive/un-powered subwoofer.
Connect your active subwoofer to the SUBWOOFER output jack on the back
panel of this system. Connection cable is not included.
Connect the subwoofers AC power cord to your AC outlet, set the subwoofer power
switch ‘On’ and adjust the subwoofers level control to the desired setting.
When you operate this system the low frequencies will be sent to the external
powered subwoofer for a more powerful bass sound.
Note: the remote controller of this system cannot control the external
Subwoofer. You must remember to switch the external Subwoofer ‘On’ and
‘Off’, and adjust the subwoofer output manually.

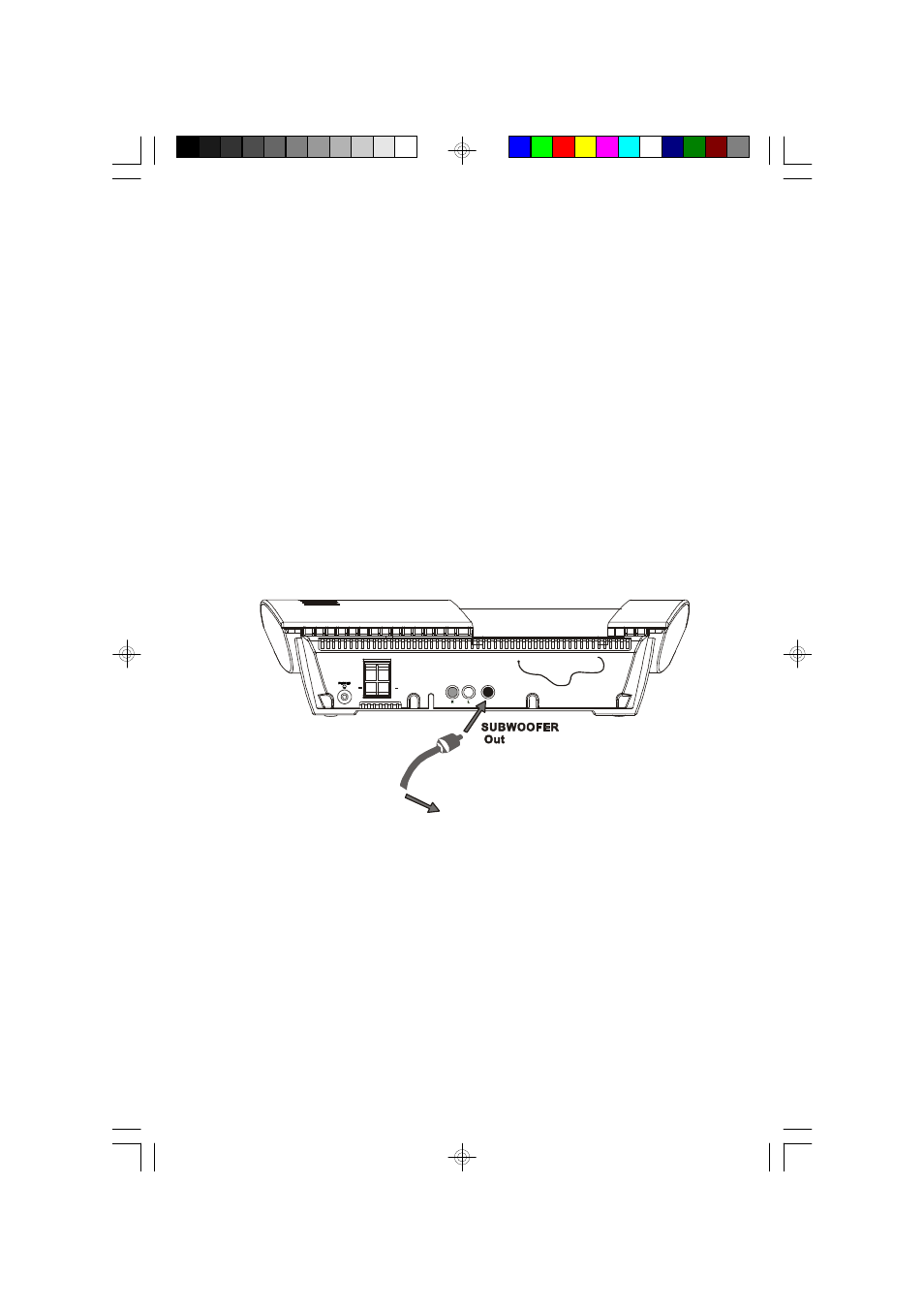

R + L +
R L
AUX S U B W O O F E R
FM ANT. SPEAKERS
To External Subwoofer Amplifier
