Magnum Energy
Inverter/Charger
(with NETWORK port)
Remote Control
(ME- RC50 with revision
2.0,
ME-ARC50, ME-RTR)
,QYHUWLQJ
DC 12.6V 5A
SEL ECT
TECH
AG S
M ETER
SETUP
SHO RE
I NVERTER
CHARG ER
I N V
C H G
FA U LT
P W R
F
F
O
/
N
O
F
F
O
/
N
O
Optional
Internet
Wireless
Gateway
MagWeb
Device
Up to 300 ft
Your
Network
Ethernet
Cable
AC
Adapter
See AGS and BMK Manuals
for connection instructions
© 2011 Magnum Energy, Inc.
3
2.0 Installation
2.0 Installation
Before installing the MagWeb system, read this entire section so you can
thoroughly plan the details to ensure the overall system requirements are
accomplished. To assist in the planning and designing of your installation,
review the basic system diagram in Figure 2-1.
Info: Installations should be performed by qualifi ed person-
nel, such as a licensed or certifi ed electrician. It is the install-
er’s responsibility to determine which safety codes apply and
to ensure that all applicable installation requirements are
followed. Applicable installation codes vary depending on the
specifi c location and application.
The MagWeb device is connected to the inverter using the supplied four-
conductor remote cable. If an ME-RC50, ME-ARC50, ME-RTR, or other
remote is installed in the system, it is connected to the MagWeb device.
Power is supplied to the MagWeb device from the Magnum inverter.
The MagWeb device requires a nearby MagWeb wireless gateway to connect
to your Ethernet network and the Internet. The wireless gateway is plugged
into a wired Ethernet connection using the supplied Ethernet cable. Power is
supplied by an AC to DC wall adapter (included).

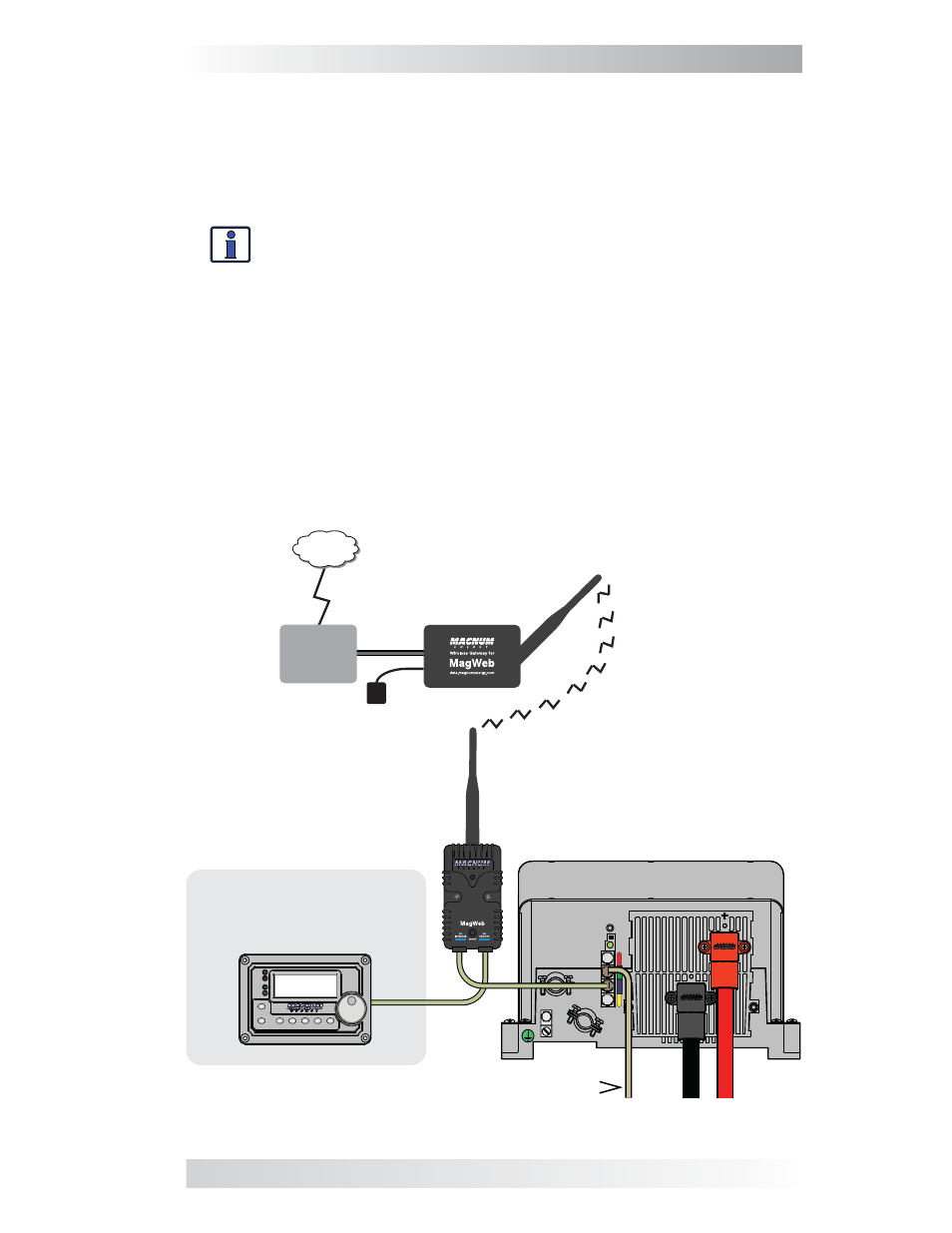

Figure 2-1, MagWeb System Diagram
