25
Connection panels on BeoVision 5
Source signals and external
equipment you wish to connect to
BeoVision 5 must be connected to
the appropriate panel. Four panels
are available:
– A top panel with connections for
RF antenna or cable A and B signal
input, Master Link connection, an
additional IR receiver, Digital TV
input and connection of a
projector;
– A bottom connection panel on
BeoVision 5 is for connection of
additional equipment. There are
sockets for extra video sources,
such as a VCR or DVD player.
Another group of sockets on the
bottom connection panel is
intended for the connection of
loudspeakers in a surround sound
system. The bottom socket panel
contains a socket for recording
purposes, and low power IR
transmitter connections (for a
projector and an RF cable box)*;
– A close-up connection panel for
headphones or a CamCorder;
– A PC connection socket.
Refer to Connect video signals on the
CD-rom for information about how
to connect video signals.

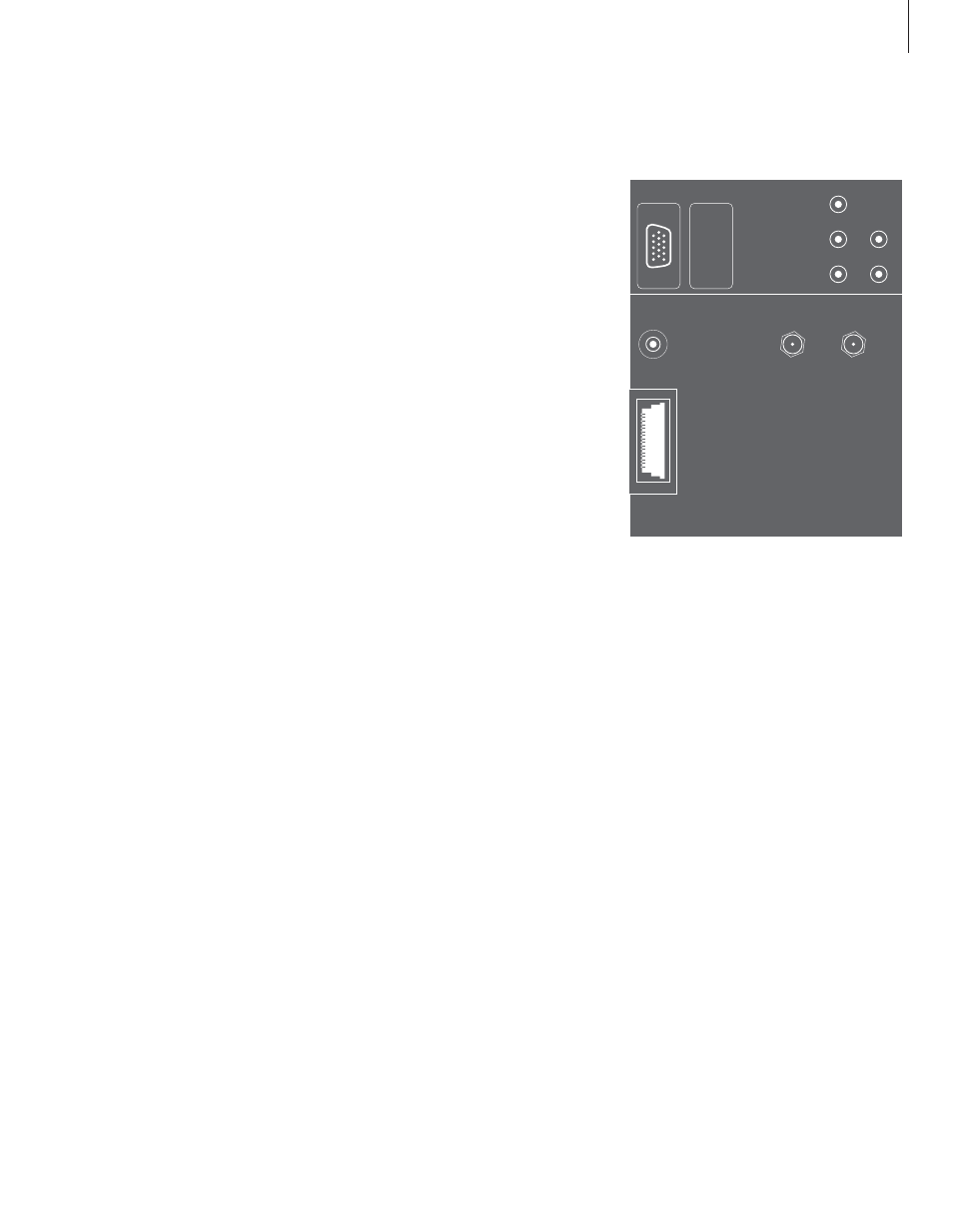

Top connection panel
The following sockets and areas are available
on the BeoVision 5 top connection panel:
RF IN A
For connection of an RF signal, input A.
RF IN B
For connection of an second or split RF signal,
input B.
MASTER LINK
For connection of a Bang & Olufsen audio system
or for BeoLink distribution.
IR RECEIVER
For connection of an additional IR receiver.
PROJ. OUT
For connection of a large-screen projector.
DTV IN
Five sockets are available for connection of
component signals from, for example, a High
Definition set-top box: Y/G, Pr/R, Pb/B, H and V.
– Sources with an RGB-type interface have to be
connected to all 5 sockets.
– For Y, Pr, Pb-type inter-faces, use the sockets
Y/G, Pr/R and Pb/B – no connection should be
made to the H and V sockets.
– If the DTV IN sockets are used, then make sure
that the analogue sound outputs (RIGHT and
LEFT) and the digital sound output (COAX or
OPTICAL) from the set-top box are connected to
the relevant sockets in the STB area on the
bottom connection panel. Also, make sure that
the CTRL socket in the STB area is used for
connecting the IR transmitter controlling the
set-top box, if the box is included in the Product
List available through your Bang & Olufsen
retailer.
PROJ. OUT
IR RECEIVER
MASTER LINK
RF IN A RF IN B
Y/G DTV IN
Pr/R H
Pb/B V
*NOTE! The type of source you connect has to be
registered in the EXTERNAL SOURCES menu.
Please refer to Register equipment connected to
BeoVision 5 on page 28 for further instruction.
