Introduction
4
1.4 Controller Board Overview

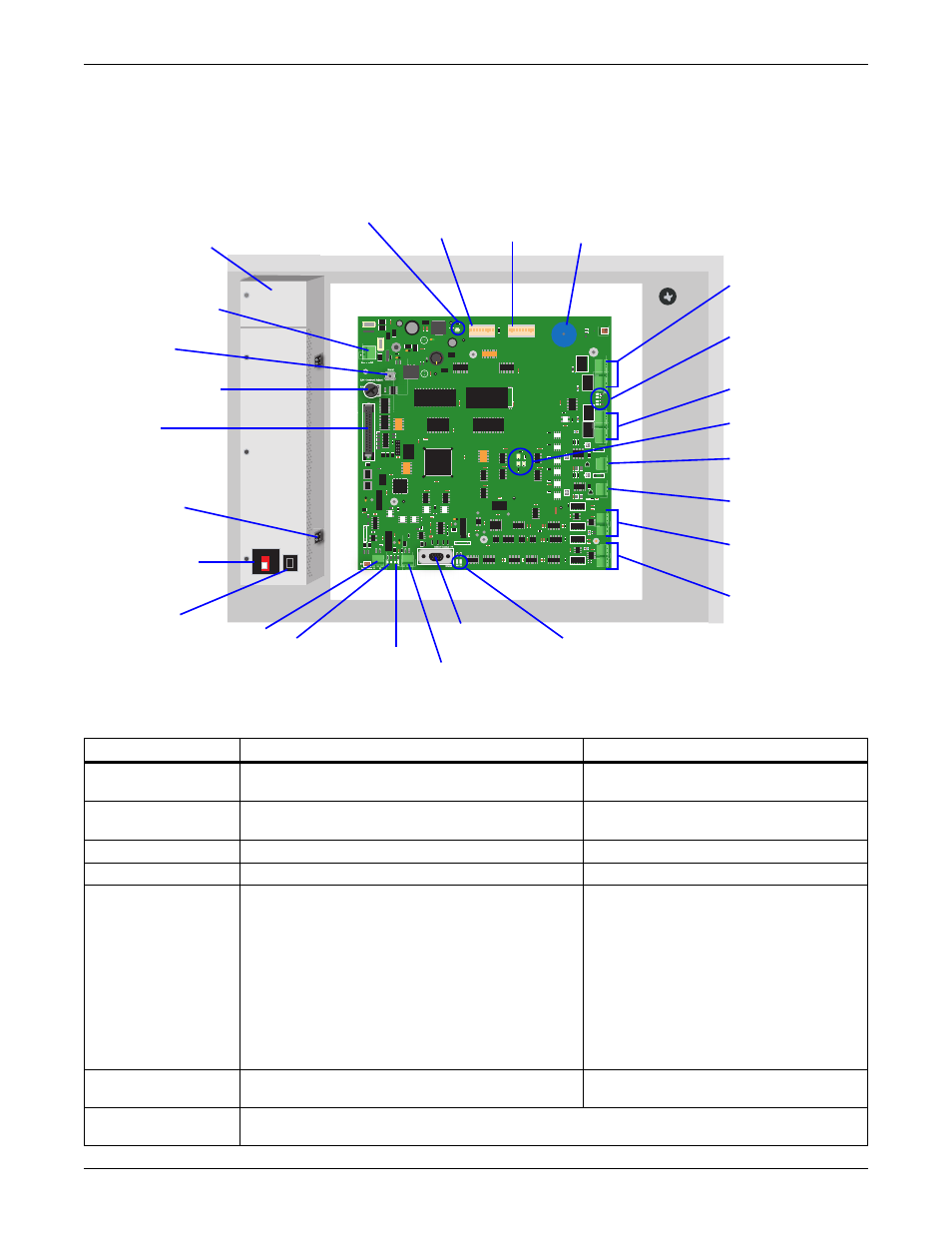

The Liqui-tect panel’s controller board, as shown below, has connectors for two digital outputs for leak
detection alarms, two digital outputs for cable break alarms, two inputs for leak detection cables and
two analog outputs for connecting to a building management system. The board comes complete with
light-emitting diodes (LEDs) to display the status of monitored zones, power connections and other
features necessary to monitor and protect your operation.
Table 1 Controller board components
Item Description More Information
A-Power On/Off LED Indicates when power is supplied to the panel.
2.4: Connect Power to the Liqui-tect Panel
1.5: LED Indicators
B-DIP switch 1
DIP switch used for resetting password to default
and disabling the audible alarm.
3.5: Disable the Audible Horn
6.8.1: Change Password
C-DIP switch 2 Not used. N/A
D-Audible horn Provides audible notification when an alarm occurs. 3.5: Disable the Audible Horn
E-Digital alarm
outputs (Zone 1)
and
G-Digital alarm
outputs (Zone 2)
The Cable Break output connection is a two-state
point (ON/OFF, energized/de-energized). When the
cable is broken or becomes contaminated, an alarm
is created and the contact is energized.
The Leak Detected output connection is a two-state
point (ON/OFF, energized/de-energized). When
water is detected, an alarm is created and the
contact is energized.
Each output can be used to connect to a secondary
warning device such as a horn, light or building
management system.
3.0: Connections and Configuration
3.2: Connecting Alarm Outputs
5.1: View Cable Status
6.5: Setup System - Setup Alarm Outputs
F-Alarm output
LEDs (Zones 1&2)
Indicates the status of the alarm outputs. 1.5: LED Indicators
G-Digital alarm
outputs (Zone 2)
(See description and references for E-Digital alarm outputs (Zone 1) above)
