Input power connections, 24 vac output power connections, Figure 6 power wiring to tm115 – Emerson Liqui-tect MC68HC16Z1 User Manual

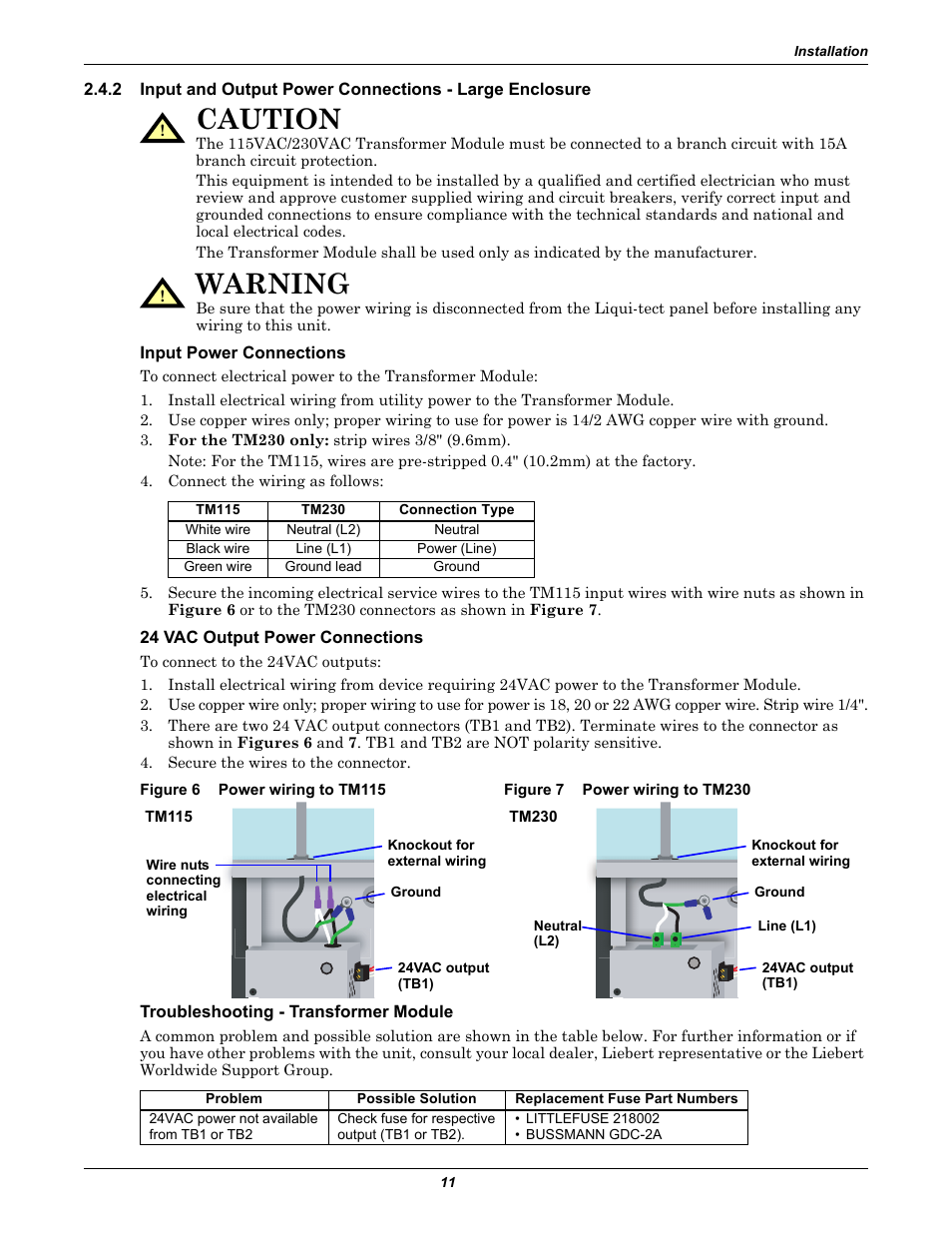

Page 15: Figure 7 power wiring to tm230, Troubleshooting - transformer module, Figure 6, Power wiring to tm115, Figure 7, Power wiring to tm230, Input and output power connections

Input power connections, 24 vac output power connections, Figure 6 power wiring to tm115 | Figure 7 power wiring to tm230, Troubleshooting - transformer module, Figure 6, Power wiring to tm115, Figure 7, Power wiring to tm230, Input and output power connections | Emerson Liqui-tect MC68HC16Z1 User Manual | Page 15 / 48 Input power connections, 24 vac output power connections, Figure 6 power wiring to tm115 | Figure 7 power wiring to tm230, Troubleshooting - transformer module, Figure 6, Power wiring to tm115, Figure 7, Power wiring to tm230, Input and output power connections | Emerson Liqui-tect MC68HC16Z1 User Manual | Page 15 / 48
