4 connect power to the liquitect panel, 1 input power connections - small enclosure, Figure 5 electrical connections to panel – Emerson Liqui-tect MC68HC16Z1 User Manual

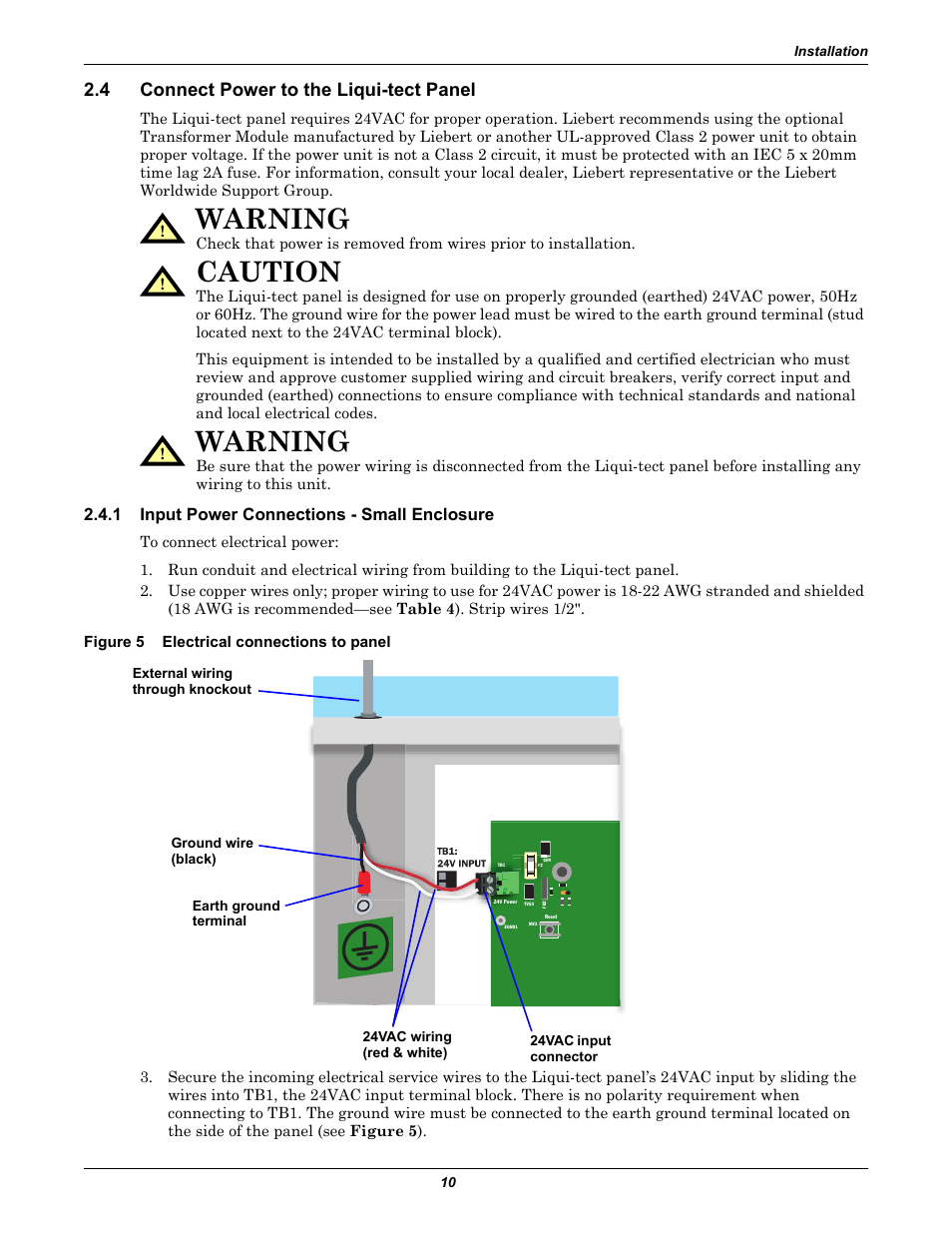

Page 14: Connect power to the liqui-tect panel, Input power connections - small enclosure, Figure 5, Electrical connections to panel, Warning, Caution, 4 connect power to the liqui-tect panel

4 connect power to the liquitect panel, 1 input power connections - small enclosure, Figure 5 electrical connections to panel | Connect power to the liqui-tect panel, Input power connections - small enclosure, Figure 5, Electrical connections to panel, Warning, Caution, 4 connect power to the liqui-tect panel | Emerson Liqui-tect MC68HC16Z1 User Manual | Page 14 / 48 4 connect power to the liquitect panel, 1 input power connections - small enclosure, Figure 5 electrical connections to panel | Connect power to the liqui-tect panel, Input power connections - small enclosure, Figure 5, Electrical connections to panel, Warning, Caution, 4 connect power to the liqui-tect panel | Emerson Liqui-tect MC68HC16Z1 User Manual | Page 14 / 48
