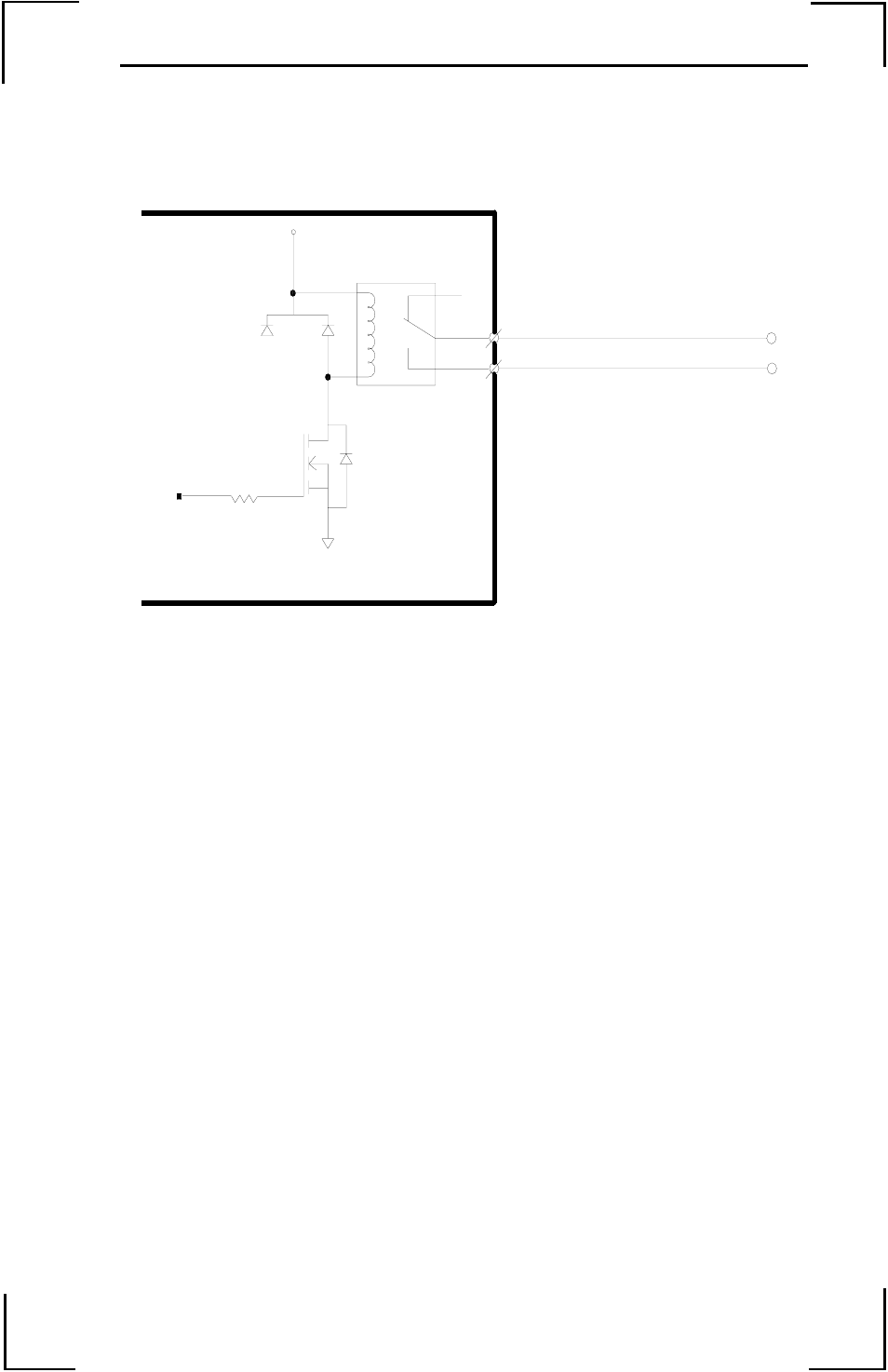

Emergency Stop Chain

25

E STOP2

Legend-MC I/O

Connector CN5

50

VCC

-EROUT

1k

Q1

2N7002

U17

E STOP1

Internal Circuitry

Field Wiring

Note:

Note: The LEGEND-MC closes the relay contact under normal operating
conditions.
Ratings: 1.0A @ 24 VDC
0.5A @ 125 VAC
Maximum switching power: 62.5VA, 30W

LEGEND-MC I/O
