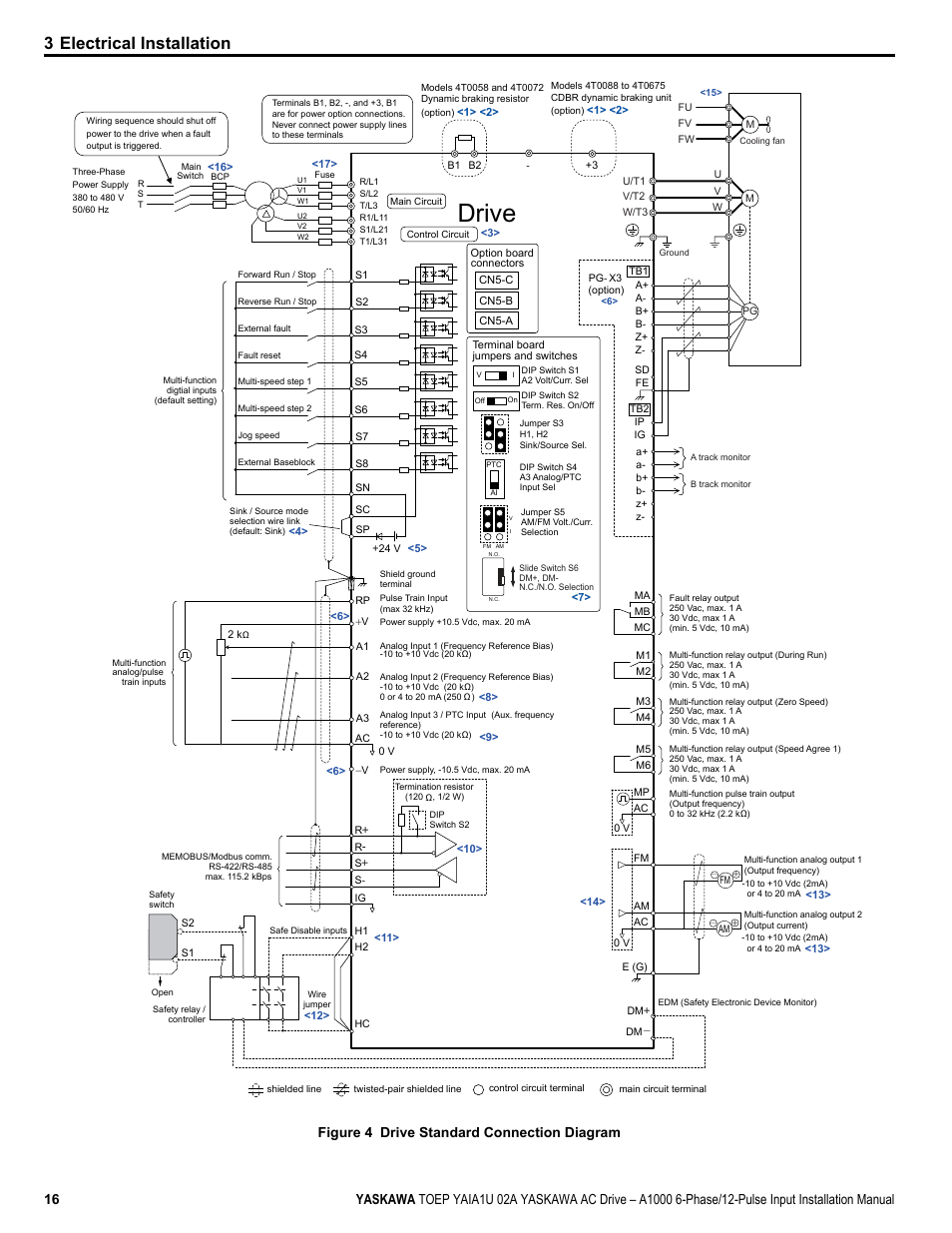

Drive, 3 electrical installation, Figure 4 drive standard connection diagram – Yaskawa A1000 6-Phase/12-Pulse Input User Manual
Page 16
