SMA Solar Technology AG Installation
Installation Guide AS-BOX-XL-IEN094410 19

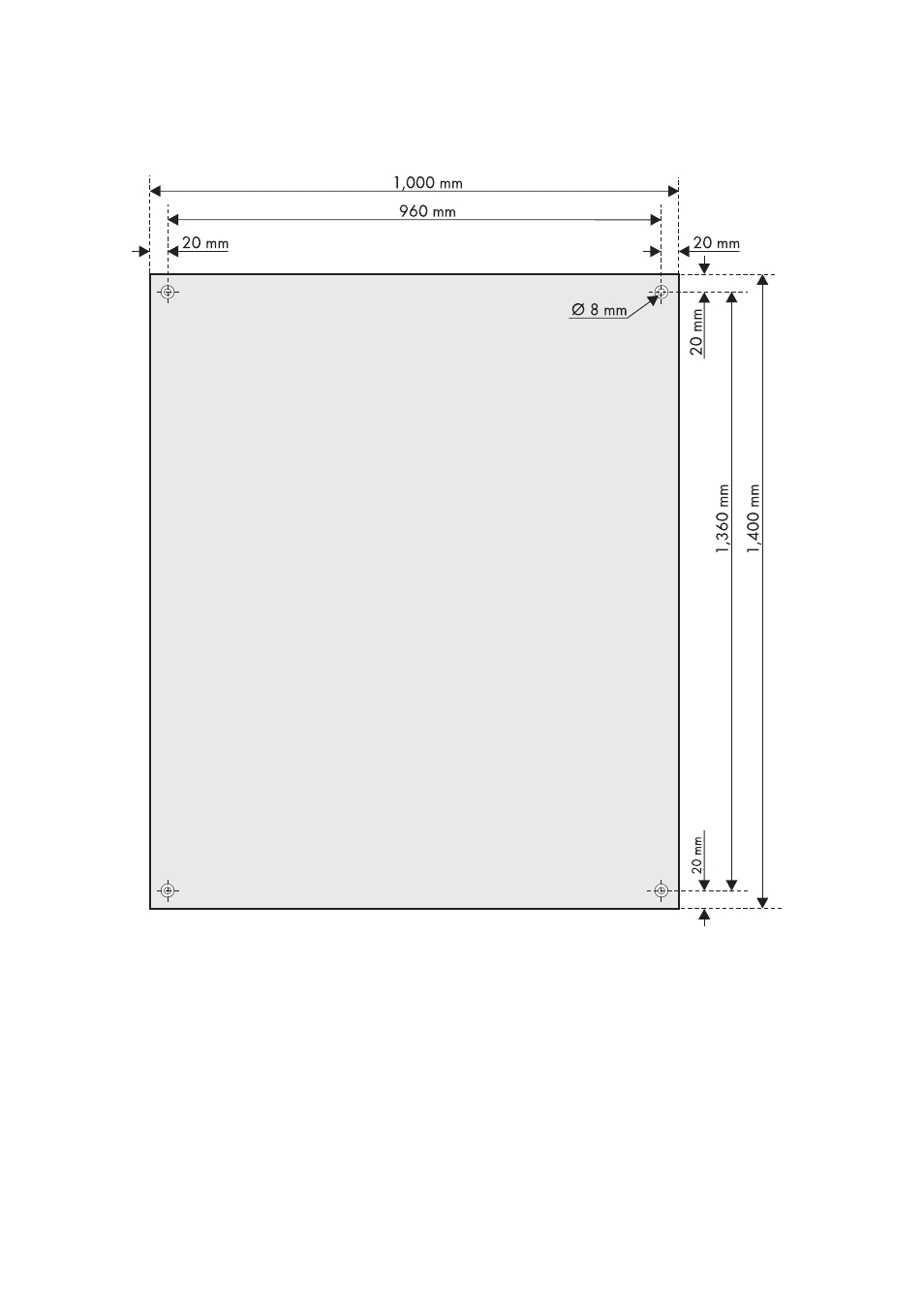

2. Mark the position of the drill holes for fastening the rear panel.
3. Drill holes at the marked positions.
4. Insert appropriate fastening material.
5. Place the Automatic Switch Box on the foundation and against the wall. Please refer to Section
4.2 ”Transport” (page 15).
6. Attach the Automatic Switch Box to the wall using 2 suitable screws and the supplied seals and
washers.
7. Attach the Automatic Switch Box to the foundation using 2 suitable bolts.
☑ The Automatic Switch Box is now mounted and attached to the wall.
