SMA Solar Technology AG Installation
Installation Guide AS-BOX-XL-IEN094410 17
4.3 Installing the Automatic Switch Box
The Automatic Switch Box is fixed onto the foundation by its base. If the Automatic Switch Box is to
be installed not in a free-standing position, but next to a wall, you can also fix the rear panel to the
wall.
4.3.1 Free-standing Installation
If the Automatic Switch Box is to be mounted in a free-standing position, proceed as follows:

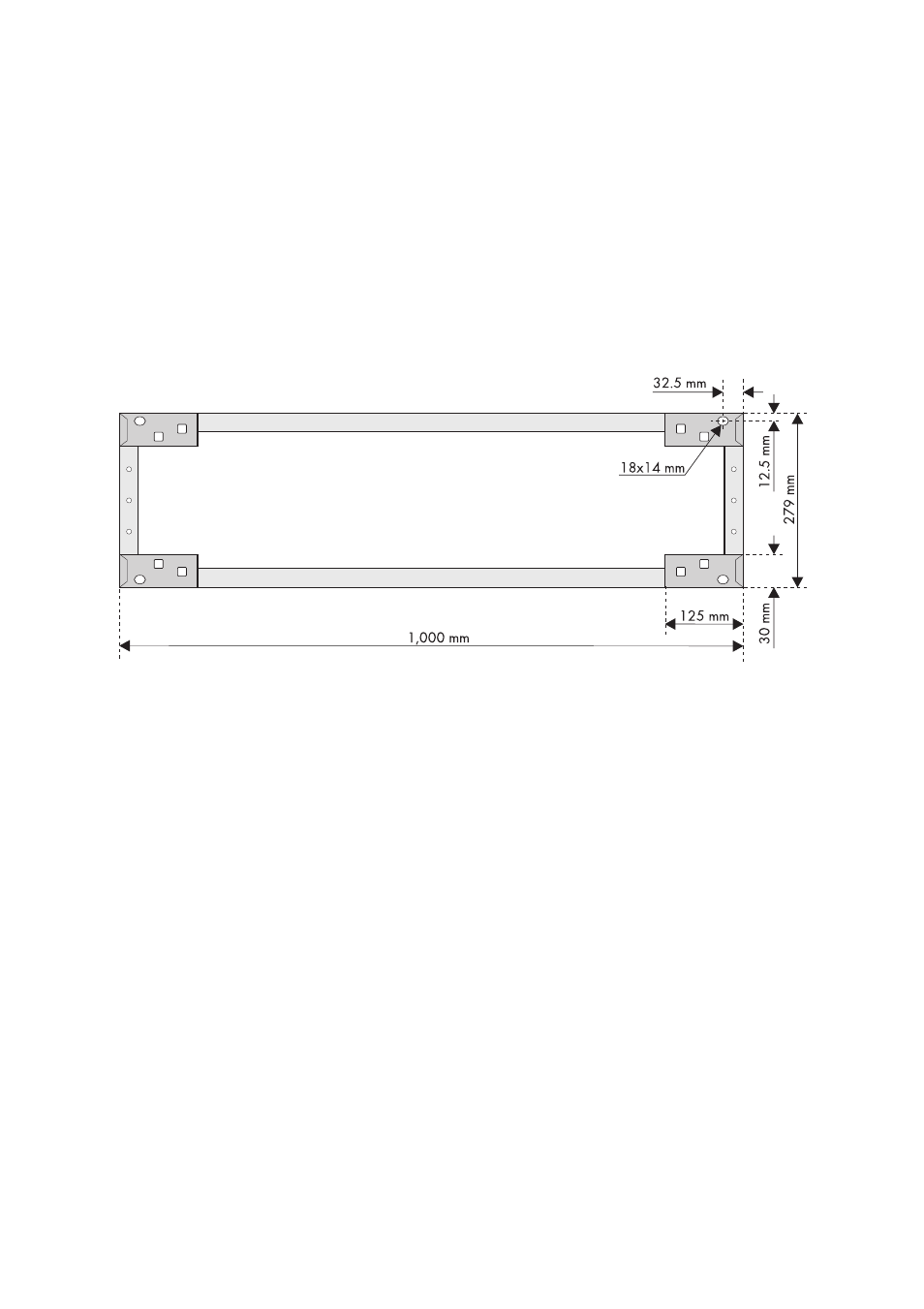

1. Mark the position of the drill holes for fastening the base.
2. Drill the holes in the marked positions
3. Insert appropriate fastening material.
4. Place the Automatic Switch Box on the foundation. Please refer to Section 4.2 ”Transport”
(page 15).
5. Fasten the Automatic Switch Box to the foundation.
☑ The Automatic Switch Box is now mounted.
