3 Unpacking
3.1 Packing List
Check that the delivery is complete. Check the packaging and the Automatic Switch Box for any
visible external damage. Contact your supplier in case of damage to the packaging. Contact your
dealer if you find any damage to the Automatic Switch Box or if there are parts missing.
3.1.1 Automatic Switch Box

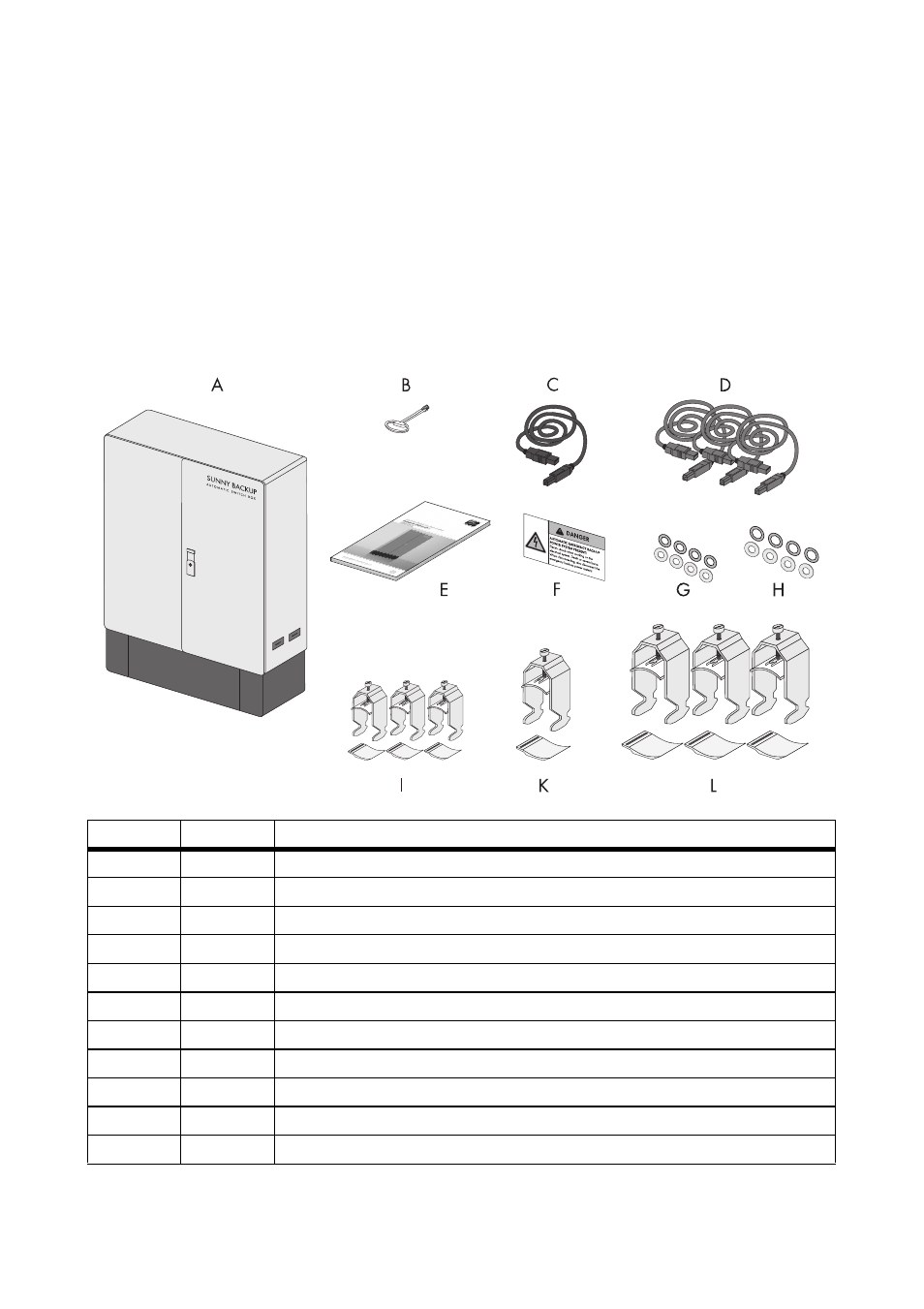

Object Number Description
A 1 Automatic Switch Box
B 1 Switch cabinet key
C 1 Communication cable (black)
D 3 Control and sensor cable (red)
E 1 Installation Guide
F 8 Sticker (hazard warning for consumer load system)
G 8 4 sealing washers and 4 washers (diameter: 6 mm)
H 8 4 sealing washers and 4 washers (diameter: 8 mm)
I 3 cable clip and counter well (22 mm .... 28 mm)
K 1 cable clip and counter well (52 mm .... 58 mm)
L 3 cable clip and counter well (58 mm .... 64 mm)
