Maintenance 3. Covers
80 G3 Rev.1

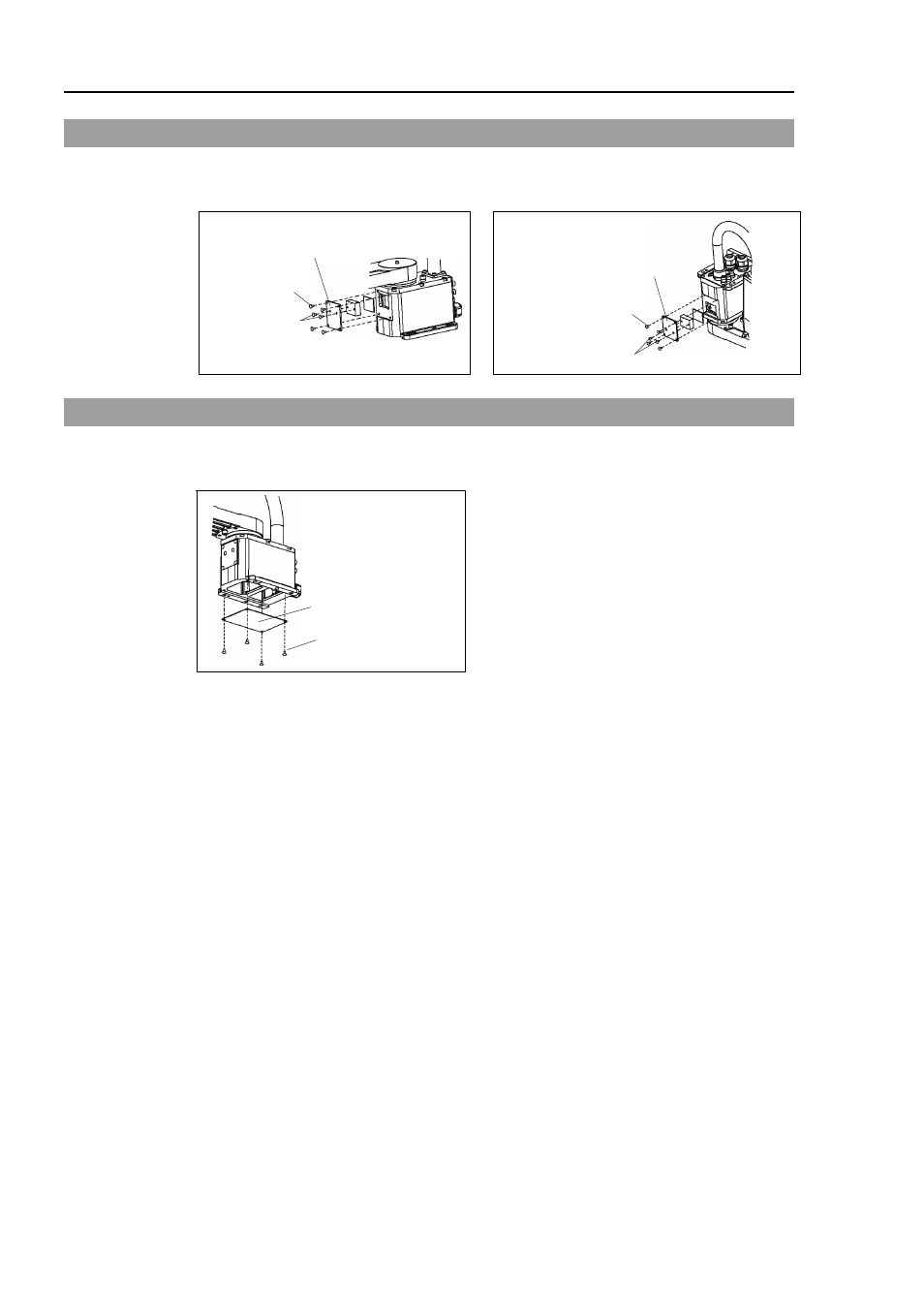

3.7 Heatsink Plate
Unscrew the heatsink plate mounting bolts to remove the plate.
G3-**1* Table Top Mounting G3-**1*W Multiple Mounting
Truss:
4-M4 ×8
Heatsink plate
Truss: 2-M4 ×8
Truss:
4-M4 ×8
Heatsink plate
Truss: 2-M4 ×8
3.8 Base Bottom Cover
Unscrew the base bottom cover mounting bolts and remove the cover.
G3-**1C* Cleanroom-model
Truss: 4-M4 ×8
Base bottom cover
)
NOTE
A base bottom cover is not installed to G3-**1S* (Standard-model).
