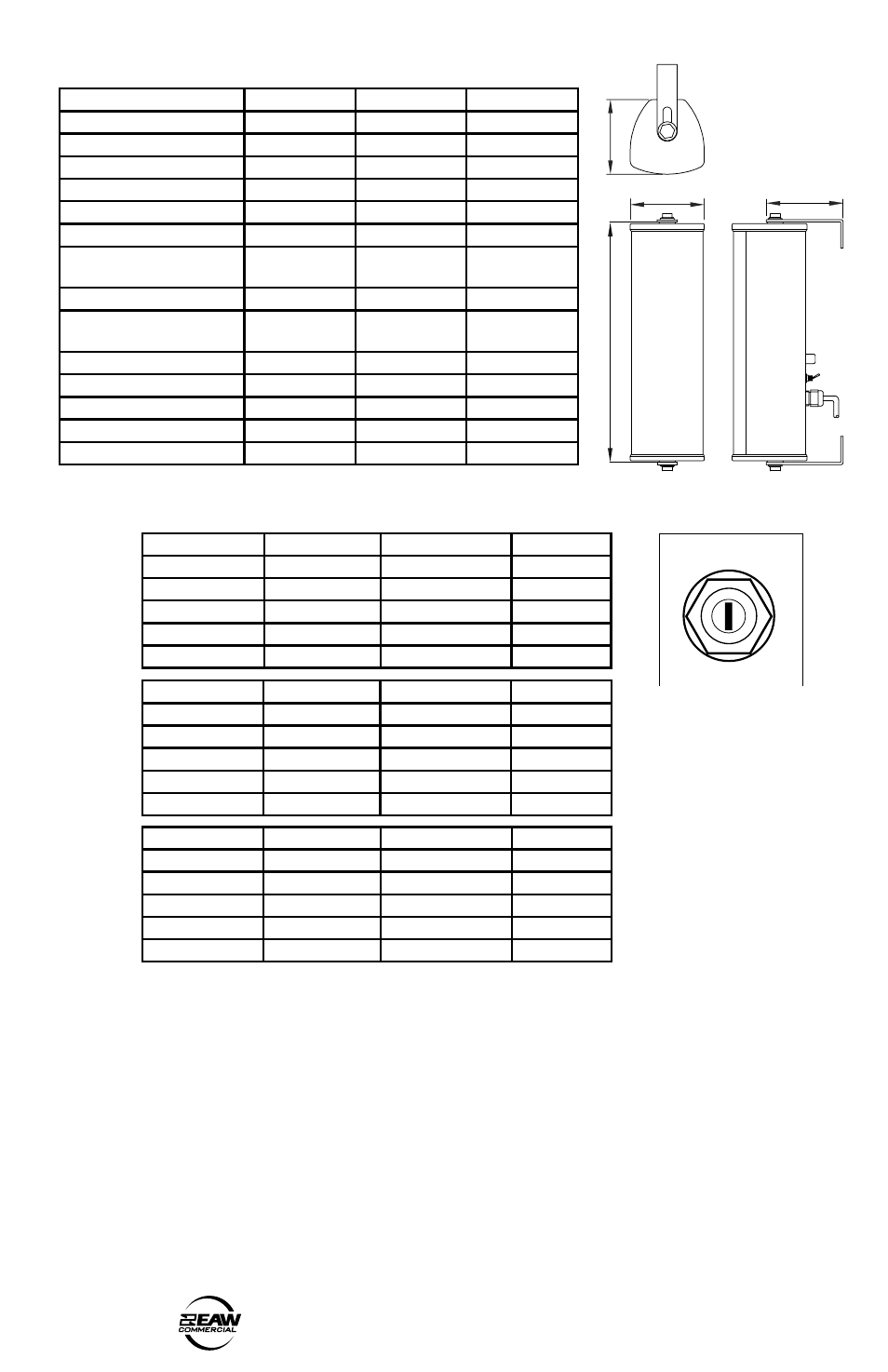

5. SPECIFICATIONS
Power Selector
Disclaimer
EAW Commercial continually engages in research related to product improvement, new
materials, and production methods. Design refinements are introduced into existing products
without notice as a routine expression of that philosophy. For this reason, any current EAW
Commercial product may differ in some respect from its published description, but will
always equal or exceed the original design specifications unless otherwise stated.
“EAW Commercial” is a trademark of LOUD Technologies Inc.
All other brand names mentioned are trademarks or registered trademarks of their
respective holders, and are hereby acknowledged.
Model
CLA2
CLA4
CLA6
Rated Power
20 W
30 W
40 W
Woofers
3” x 2
3” x 3
3” x 4
Tweeter
2” x 1
2” x 1
2” x 1
SPL (1 W/m)
87 dB
88 dB
90 dB
Max SPL (20 W/m)
100 dB
103 dB
106 dB
Freq Range (-10 dB)
150 Hz-20 kHz
140 Hz-20 kHz
140 Hz-20 kHz
Horizontal Dispersion
(1 kHz/4 kHz)
190˚/120˚
195˚/105˚
205˚/140˚
Low Cut
400 Hz
400 Hz
400 Hz
Vertical Dispersion
(1 kHz/4 kHz)
125˚/30˚
105˚/30˚
85˚/45 ˚
Length
11.97”/304 mm
15.24”/387 mm
18.46”/469 mm
Depth
3.74”/95 mm
3.74”/95 mm
3.74”/95 mm
Width
3.7”/94 mm
3.7”/94 mm
3.7”/94 mm
Weight
3.97 lbs/1.8 kg
5.07 lbs/2.3 kg
6.39 lbs/2.9 kg
Mounting supplied
2 L-brackets
2 L-brackets
2 L-brackets
Switch Position
70 V Power (W)
100 V Power (W)
Impedance
1
20
Do not use
250 Ω
2
10
20
500 Ω
3
5
10
1 kΩ
4
2.5
5
2 kΩ
5
1.25
2.5
4 kΩ
Switch Position
70 V Power (W)
100 V Power (W)
Impedance
1
30
Do not use
167 Ω
2
15
30
333 Ω
3
7.5
15
666 Ω
4
3.75
7.5
1.33 kΩ
5
1.9
3.75
2.67 kΩ
Switch Position
70 V Power (W)
100 V Power (W)
Impedance
1
40
Do not use
125 Ω
2
20
40
250 Ω
3
10
20
500 Ω
4
5
10
1 kΩ
5
2.5
5
2 kΩ
1
ON
OFF
400 Hz LOW CUT
2
3
4
5
CLA2
CLA4
CLA6
Width
3.82 "
97.0 mm
Length
Depth
