5 Installation Site SMA Solar Technology AG
14 TCS-IT-IEN103610 Installation Manual
Minimum clearances

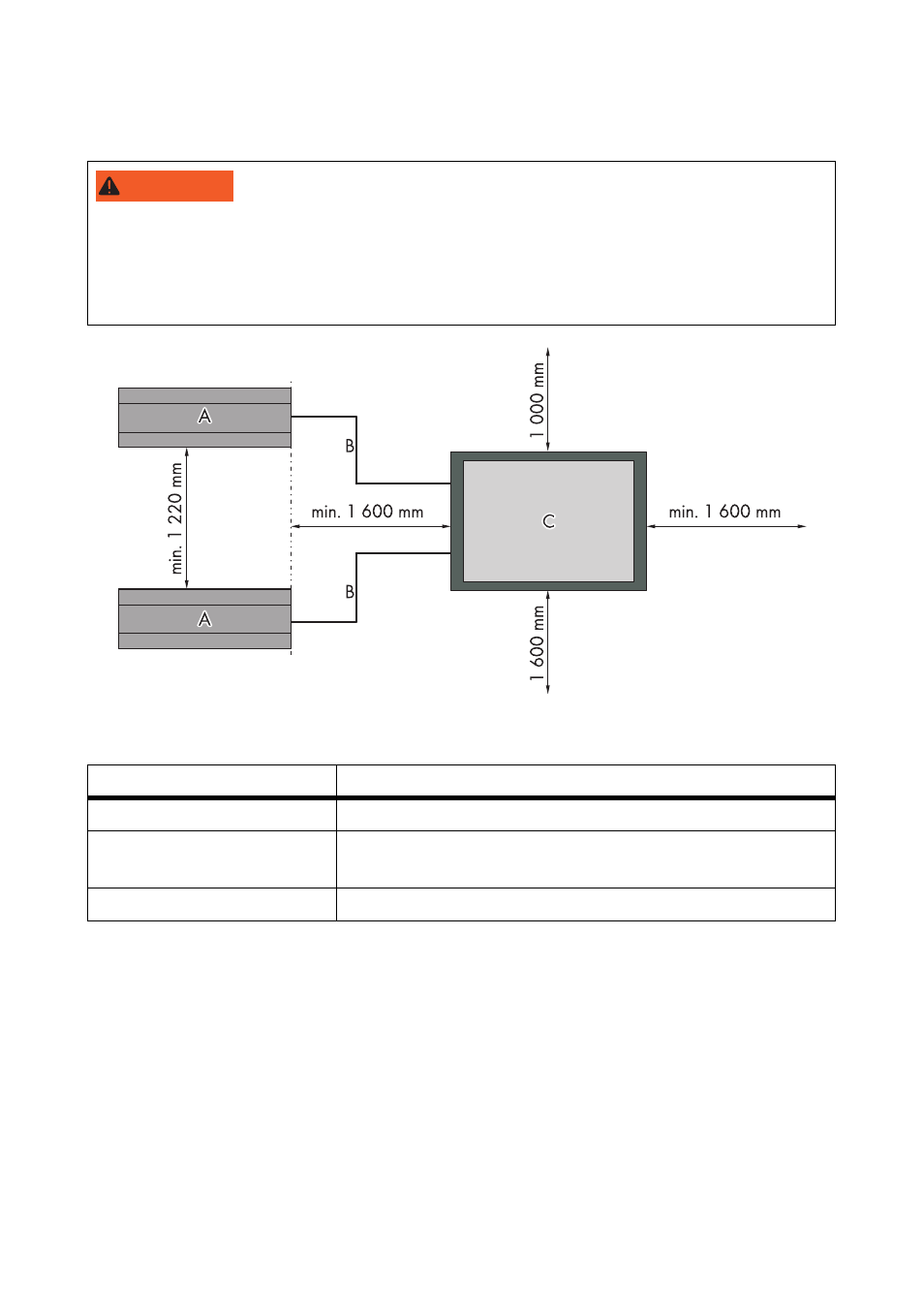

Figure 4: Minimum clearances for the Transformer Compact Station
8"3/*/(
Cable fire hazard.
Differing cable lengths lead to greater warming of the cables.
• All line conductors from the inverter to the Transformer Compact Station must be the same
length. However, the cables may not be longer than 15 m between termination points.
Position Description
A Inverter
B Cabling between the inverter and the
Transformer Compact Station
C Transformer Compact Station
