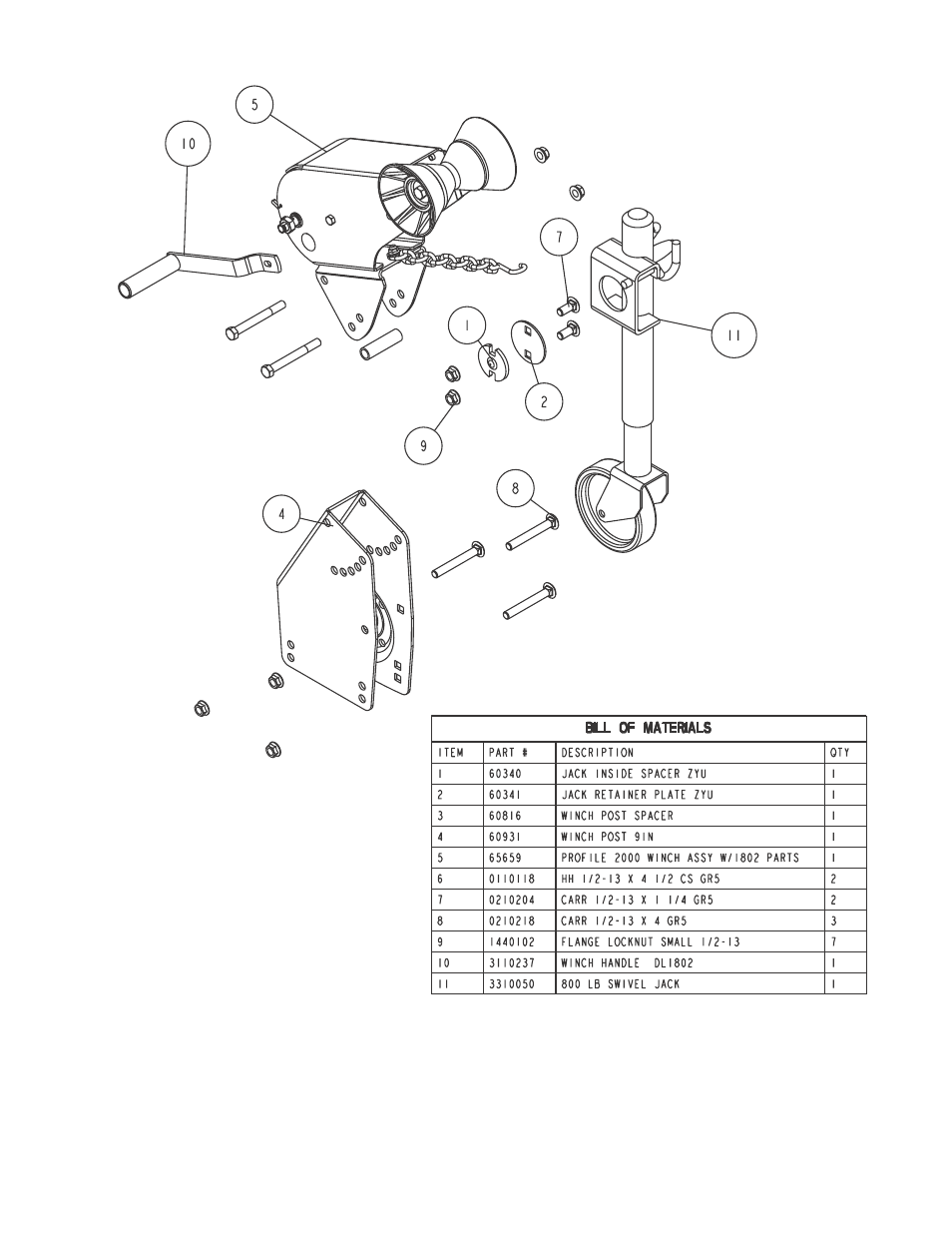

WINCH POST ASSEMBLY
The winch post assembly is assembled and
pre-adjusted to fit the bow eye of the boat. Attach
the winch post assembly to the tongue using 3-
1/2” x 4 carriage bolts and hex flange lock nuts.
Align the flats on the winch shaft with the flats in
the hole of the winch handle. Slip onto the shaft
and secure with the nut provided. Tighten.

Note: All nuts and bolts must be tightened before
towing.

Profile 2000 Winch

with Jack
