Model NGA 2000 HFID
4-7 FAN ASSEMBLY
1. Disconnect and note location of cables.
2. Remove the two hex nuts securing the fan
to the chassis, lift fan assembly out.

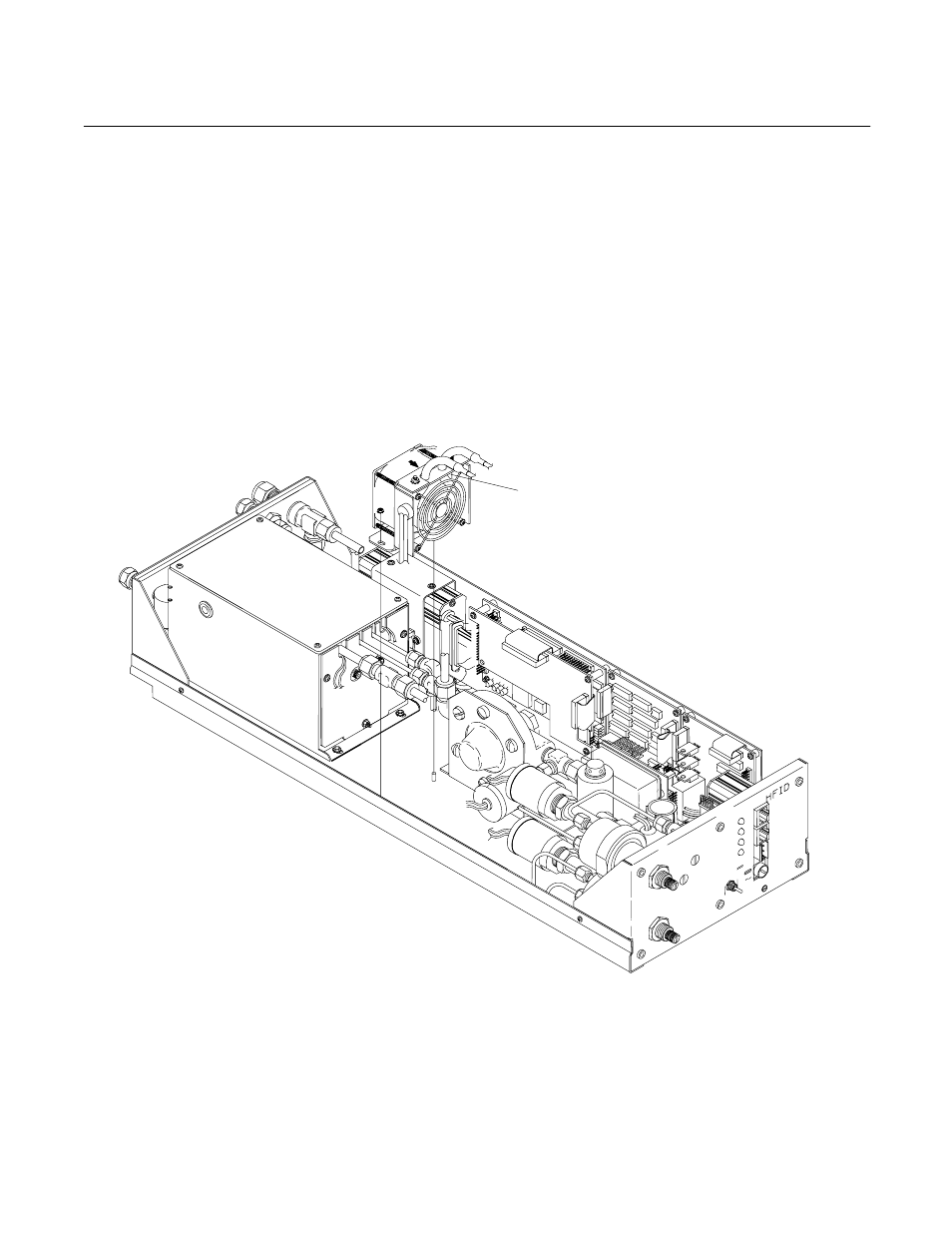

Figure 4-16. Fan Assembly Installation
Fan Assembly
657414
