4-16 Maintenance and Service
Rosemount Analytical Inc. A Division of Emerson Process Management
Model NGA 2000 HFID
b. Case Temperature Sensor
1. Per Section 4-6, remove securing
hardware from electronics assembly
and lay on bench.
2. Disconnect case temperature sensor
cable.
3. Remove screw securing cable clamp
holder to signal board.
4. Remove case temperature sensor
from cable clamp holder.
5. Per Figure 4-13 insert replacement
case temperature sensor into cable
clamp holder.
6. Re-assemble to signal board mount-
ing screw.

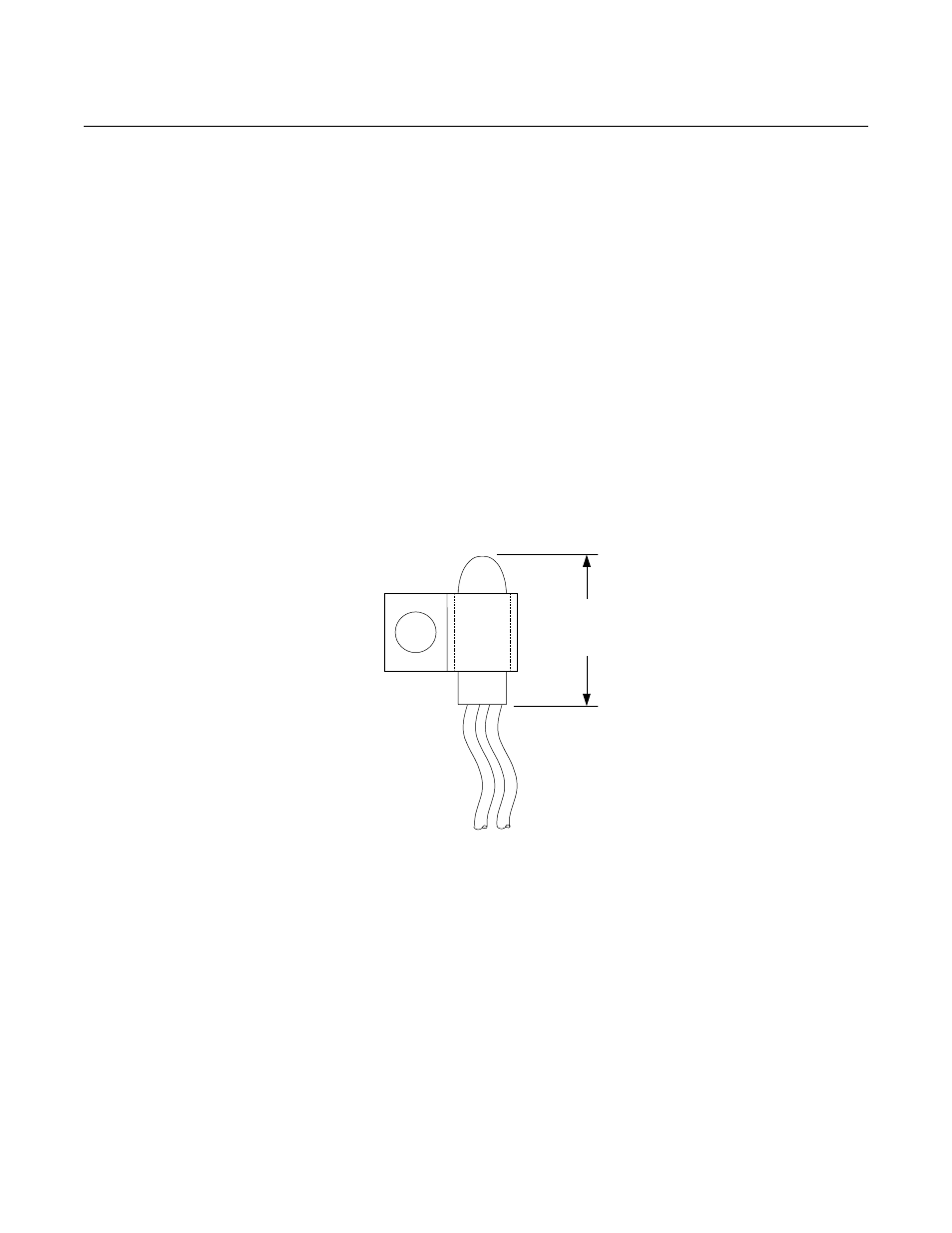

Figure 4-13. Case Sensor Installation
Center sen-
sor in cable
clamp
