Secure the tongue cover plate in position with the same 1/2” x
1-1/2” hex bolt that secures the back on the tongue to the
tongue channel of the frame. Secure with a 1/2” lock nut.
Tighten both bolts just installed.
Plug the tongue wire harness ends into the frame harnesses
by matching colors and ends. Push the extra wire provided
into the rear of the tongue. The wire should be positioned so
the only thing exposed to the outside of the tongue and side
frame is the black wire loom.
TONGUE BRAKE HOSE CONNECTION
Locate the brass brake line coupling. Remove the plastic cap
from the fitting on the end of the tongue hose. Thread into one
end of the coupling. Remove the hose from the side frame
enough to reach into the rear of the tongue. Remove the
plastic cap from the fitting on the side frame hose, then thread
into the other end of the coupling. Tighten.
Push the excess hose back inside the tongue so that the
coupling just installed is located inside the rear of the tongue.
SAFETY CHAINS
Locate the 1/2” x 5” hex bolt. Slip the bolt through a 1/2” flat
washer, then place through the last link of one of the safety
chains.
Place the bolt with chain attached through the hole provided in
the bottom front of the actuator mount on the tongue. Place
the second chain on the portion of the bolt extending through
the other side of the tongue. Place on another 1/2” flat washer
and hex lock nut. Tighten.
RETRACTABLE TIE DOWNS
Locate the two retractable tie downs. Next locate one of the
7/16” x 1 ½” fine threaded bolts supplied with the retractable
tie down. Insert it into the bottom hole on the retractable tie
down so the bolt is pointing through the back side of the tie
down. Insert the bolt through the hole provided in the taillight
bracket just inside the side frame. Secure with the 7/16” flange
lock nut. Tighten.
Repeat the above process on the other tie down.
FINAL ASSEMBLY INSTRUCTIONS

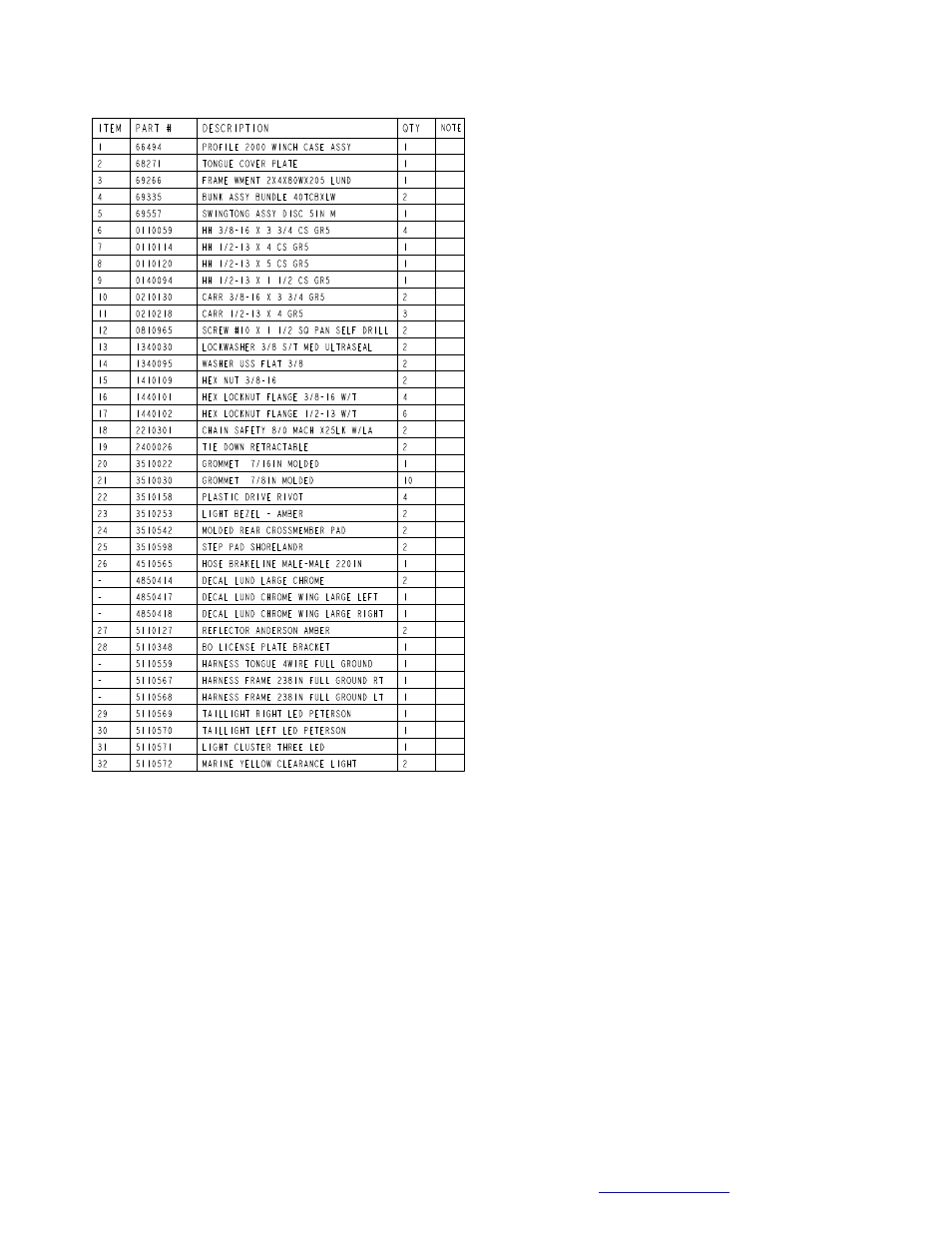

Remove all banded items and the hardware bag from
the frame. Remove the parts and sort by size.
TONGUE
Locate the tongue and install by sliding it in the front of
the tongue channel.
Line the holes in the tongue with the holes in the tongue
channel. Install the 1/2” x 4” hex bolt in the front cross
hole and secure with a 1/2” flange lock nut.
Remove the wire harness from the rear of the tongue.
Place the wire harness and the brake hose through the
hole provided in the tongue cover plate.
