WINCH POST ASSEMBLY
Your trailer may have come with the jack already installed
on the winch base. However, in the event that it did not, use
the following instructions to attach the jack to the winch
base before it is installed on the tongue.
WINCH POST INSTALLATION
The height that the bow eye is placed in your boat will
determine the length winch post required. Once this is
determined, attach the winch base to the tongue with three
1/2” x 4” carriage bolts and lock nuts.
Align the holes in the Profile 2000 mounting channel with
the holes in the top of the winch base. Attach the front of the
winch head mounting channel to the base by placing a 1/2”
x 4-1/2” hex bolt through the hole closest to the front of the
winch base. Secure with a lock nut. Do not tighten.
Note that the winch head can now be rotated either up or
down. Identify the correct hole combination to use to
position the bow eye roller just above the bow eye of
your boat. When determined, secure in this position by placing

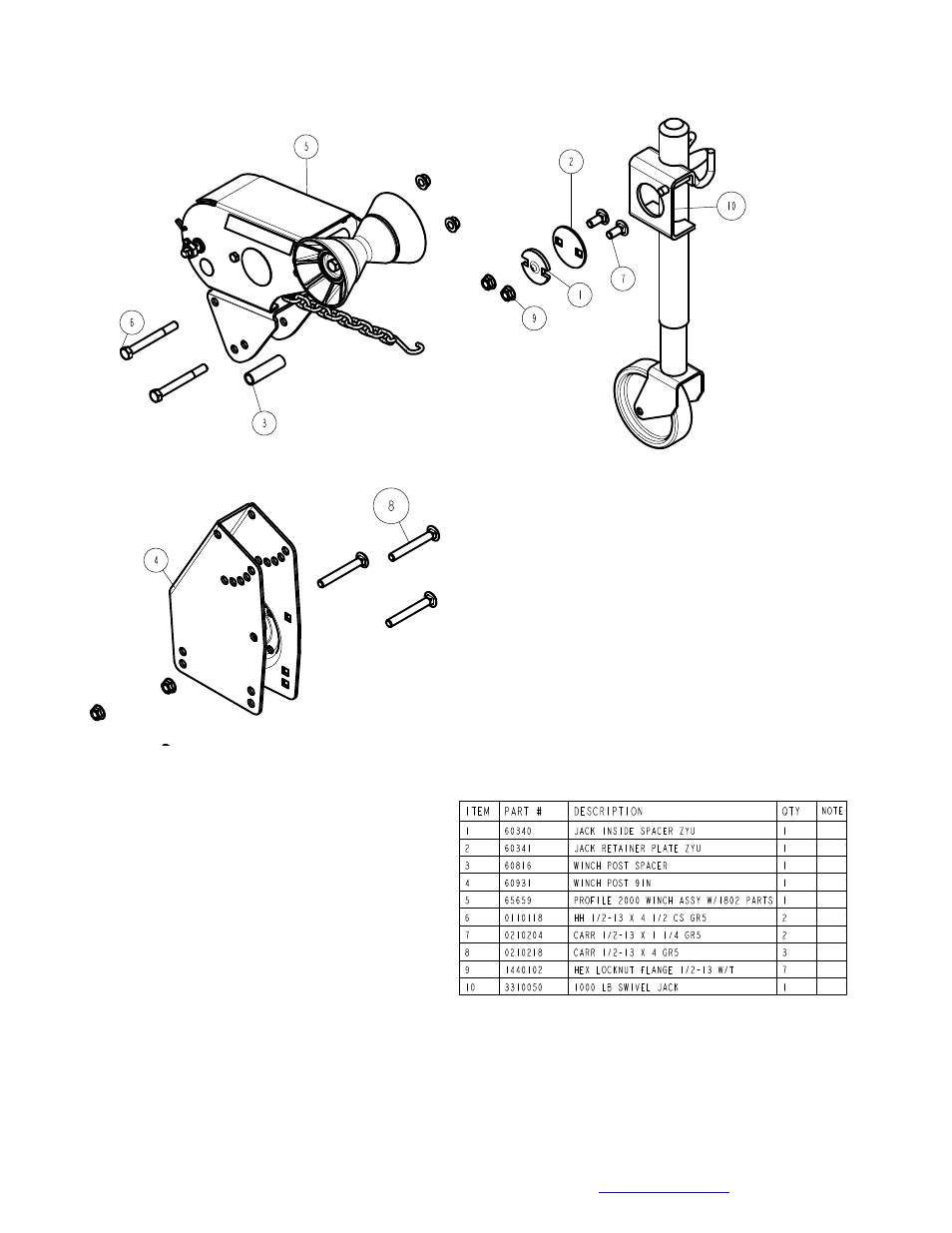

the bushing as shown in Diagram D inside the winch base so it
aligns with the hole just identified for the proper adjustment.
Insert another 1/2” x 4-1/2” hex bolt through the determined
mounting hole in the mounting channel and winch base
making sure the bolt passes through the bushing as well.
Secure with a 1/2” lock nut. Tighten all bolts.
