HEIDENHAIN MANUALplus 4110 Instructions for engraving cycles User Manual
Page 7
August 2005
Engraving
5

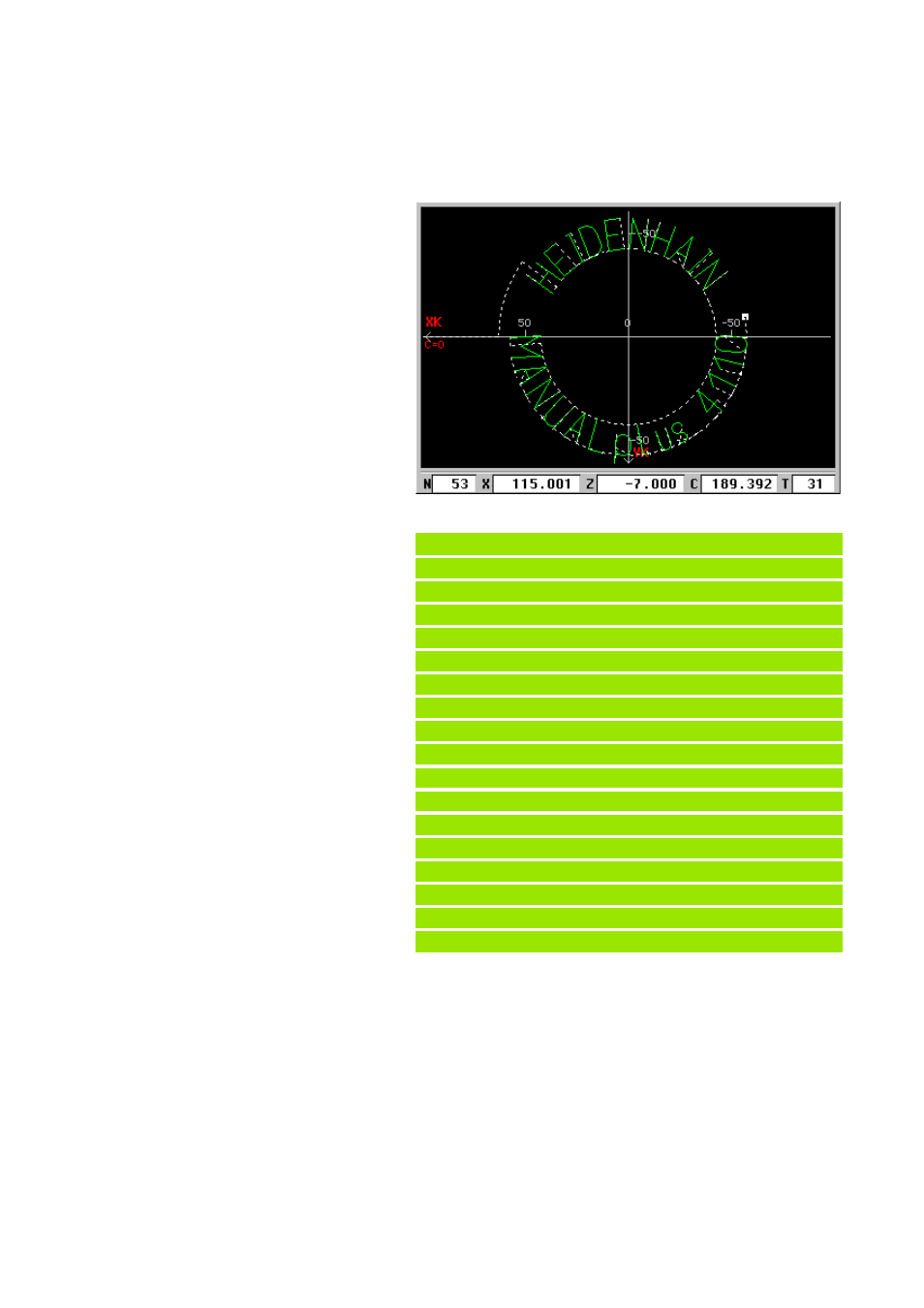

Character string “MANUALplus 4110”
The character string is engraved in polar alignment,
bent downwards, at Z = – 10.
Programming the character string:
8
Position the tool to C=4°
8
Parameters for subprogram call:
Letter height: LA=15 mm
Milling plane at Z=–10 (LC=–10)
Retraction plane at Z=–7 (LD=–7)
Engraving on the front face (LE=0)
Polar character string bent downwards (LF=2)
Diameter over which the character string is
engraved (LH): Bottom edge of character=115
Separation factor: 1.3 * default separation (I=1.3)
Example: Program and block structure
. . .
N19 G110 C4
N20 L"M" LA15 LC-10 LD-7 LE0 LF2 LH115 I1.3
N21 L"A" LA15 LC-10 LD-7 LE0 LF2 LH115 I1.3
N22 L"N" LA15 LC-10 LD-7 LE0 LF2 LH115 I1.3
N23 L"U" LA15 LC-10 LD-7 LE0 LF2 LH115 I1.3
N24 L"A" LA15 LC-10 LD-7 LE0 LF2 LH115 I1.3
N25 L"L" LA15 LC-10 LD-7 LE0 LF2 LH115 I1.3
N26 L"KP" LA15 LC-10 LD-7 LE0 LF2 LH115 I1.3
N27 L"KL" LA15 LC-10 LD-7 LE0 LF2 LH115 I1.3
N28 L"KU" LA15 LC-10 LD-7 LE0 LF2 LH115 I1.3
N29 L"KS" V1 LA15 LC-10 LD-7 LE0 LF2 LH115 I1.3
N30 L"BLANK" V1 LA15 LC-10 LD-7 LE0 LF2 LH115 I1.3
N31 L"4" V1 LA15 LC-10 LD-7 LE0 LF2 LH115 I1.3
N32 L"1" V1 LA15 LC-10 LD-7 LE0 LF2 LH115 I1.3
N33 L"1" V1 LA15 LC-10 LD-7 LE0 LF2 LH115 I1.3
N34 L"0" V1 LA15 LC-10 LD-7 LE0 LF2 LH115 I1.3
N.. . . .
