72
MAINTENANCE
Gearcases
Gearcase Specification Chart
Transmission (Main Gearcase)
Always check and change the transmission oil at the
intervals outlined in the Periodic Maintenance Chart
beginning on page 65. Refer to the Gearcase
Specifications Chart for recommended lubricants,
capacities and torque specifications. See page 104
for the part numbers of POLARIS products.
Oil Check

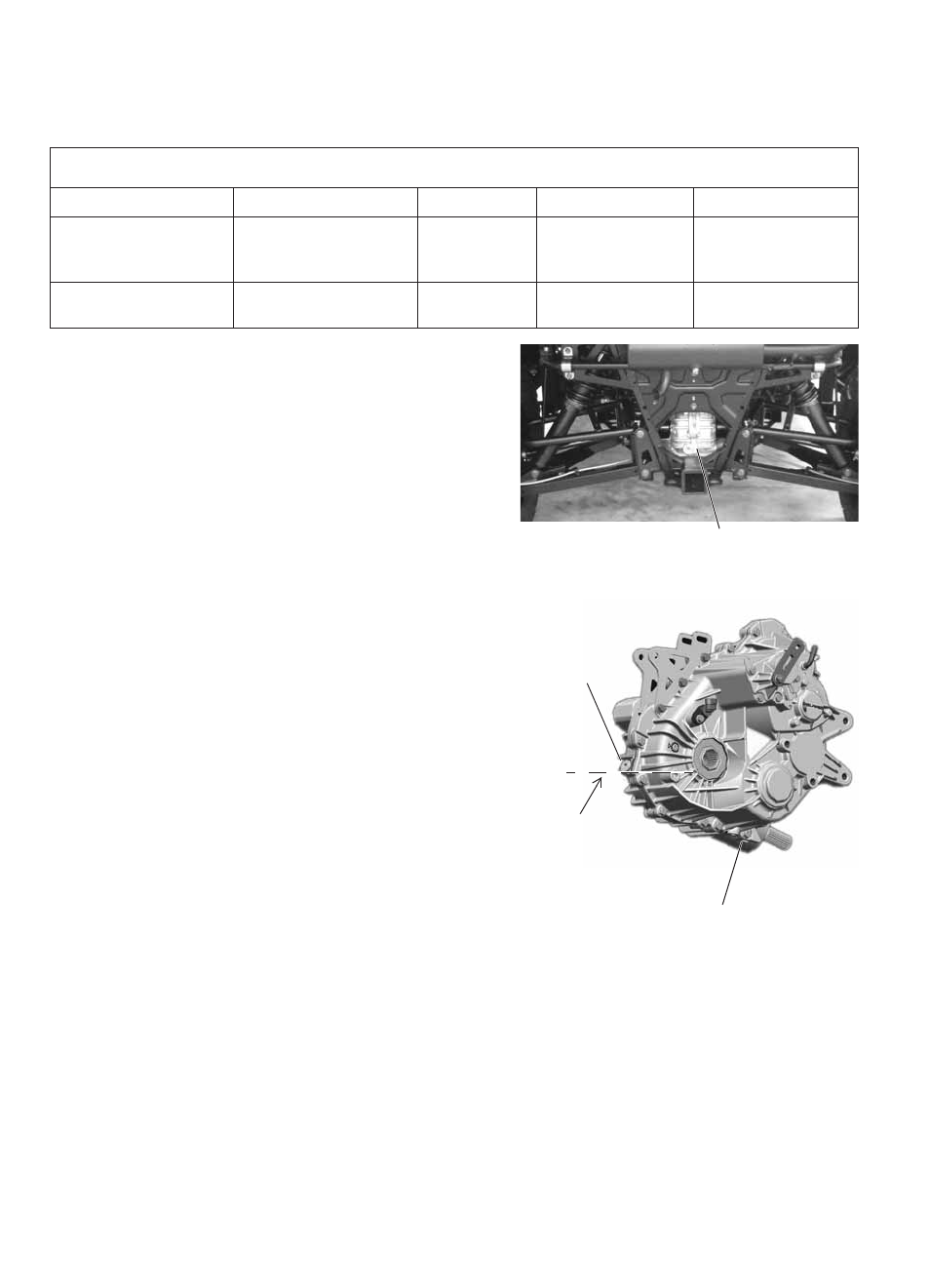

The level check/fill plug is located on the rear of the
gearcase. Maintain the oil level even with the bot-
tom of the level check/fill plug hole threads.
1. Position the vehicle on a level surface.
2. Place the transmission in PARK.
3. Remove the level check/fill plug. Check the oil
level.
4. Add the recommended oil as needed.
5. Reinstall the fill plug. Torque to specification.
Oil Change
The drain plug is located near the bottom of the
gearcase.
1. Remove the level check/fill plug.
2. Place a drain pan under the gearcase.
3. Remove the drain plug. Allow the oil to drain completely.
4. Clean and reinstall the drain plug. Torque to specification.
5. Add the recommended oil.
6. Reinstall the fill plug. Torque to specification.
7. Check for leaks. Dispose of used oil properly.
RANGER Diesel/RANGER CREW Diesel Gearcase Specifications
Gearcase Lubricant Capacity Fill Plug Torque Drain Plug Torque
Main Gearcase
(Transmission)
AGL Gearcase
Lubricant &
Transmission Fluid
40.6 oz.
(1200 ml)
12 ft. lbs.
(16.3 Nm)
12 ft. lbs.
(16.3 Nm)
Front Gearcase Demand Drive Fluid 6.76-7.6 oz.
(200-225 ml)
8-10 ft. lbs.
(11-13.6 Nm)
8-10 ft. lbs.
(11-13.6 Nm)
Gearcase
Drain Plug
Level
Check/Fill
Plug
Fill
Level
