Cable Connection and Rate Selection
CVC 300 • Cable Connection 3
Cable Connection and Rate Selection

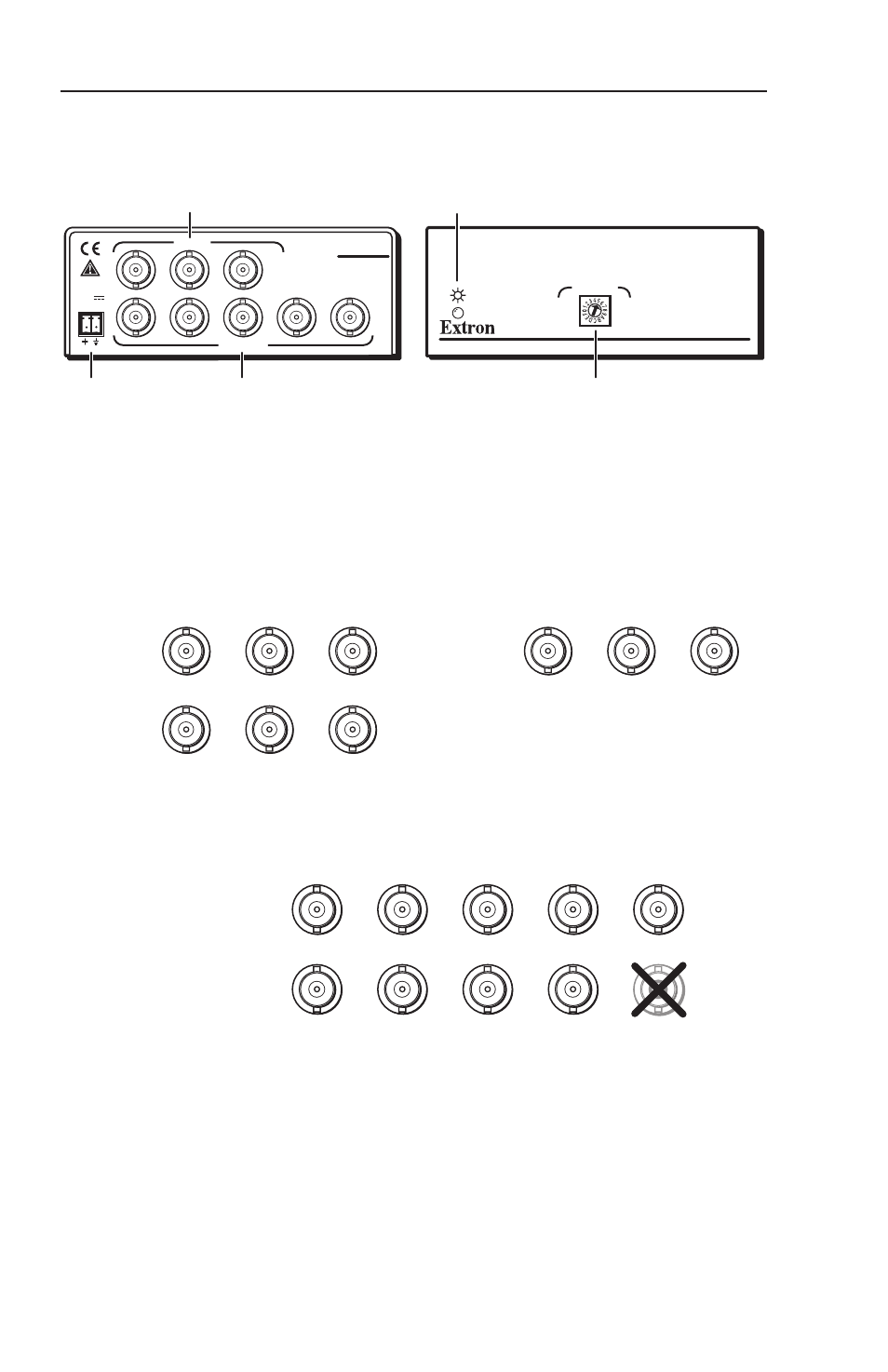

See the illustrations below to identify the panel connections.
POWER
12V
1.0 A MAX
CVC 300
OUTPUT
R G B V H/HV
P R /R P B /B Y/G
INPUT
COMPONENT VIDEO CONVERTER
CVC 300
FORMAT
c e
b
a
d
a
Power connector — Plug the external 12 VDC power supply
here using the included 2-pole captive screw connector
(See "Power supply wiring").
b
Input connectors — Connect a component (SMPTE, HDTV,
or Betacam) or RGsB video input device to these female BNC
connectors. Connect the input device as shown below.
Y, P
R
, P
B
Video
RGsB
(SOG)
Video
Y, B-Y, R-Y
Video
B-Y R-Y
P
R
/R P
B
/B Y /G P
R
/R P
B
/B Y /G
P
R
/ R P
B
/ B Y/ G
c
Output connectors — Connect an RGBHV or RGBS display to
these female BNC connectors. Connect the display as shown
below.
R G B H/HV V
RGBHV
Video
RGBS
Video
R G B H/HV V
d
Power LED — Green when power is applied and an active
video input is detected. Amber if power is available but no
input signal is present.
