Reduced air flow — Install the equipment in a rack so that 2.
the amount of air flow required for safe operation of the
equipment is not compromised.
Mechanical loading — Mount the equipment in the rack so
3.
that a hazardous condition is not achieved due to uneven
mechanical loading.
Circuit overloading — Connect the equipment to
4.
the supply circuit and consider the effect that circuit
overloading might have on overcurrent protection and
supply wiring. Appropriate consideration of equipment
nameplate ratings should be used when addressing this
concern.
Reliable earthing (grounding) — Maintain reliable
5.
grounding of rack-mounted equipment. Pay particular
attention to supply connections other than direct
connections to the branch circuit (e.g. use of power strips).
Mounting instructions
Rack mount the CVC 300 as follows:
Remove the feet from the CVC, if they were previously 1.
installed.
Mount the CVC 300 on the rack shelf, using two
2.
4-40 x 3/16" screws in opposite corners (under the shelf) to
secure the converter to the shelf (see below).

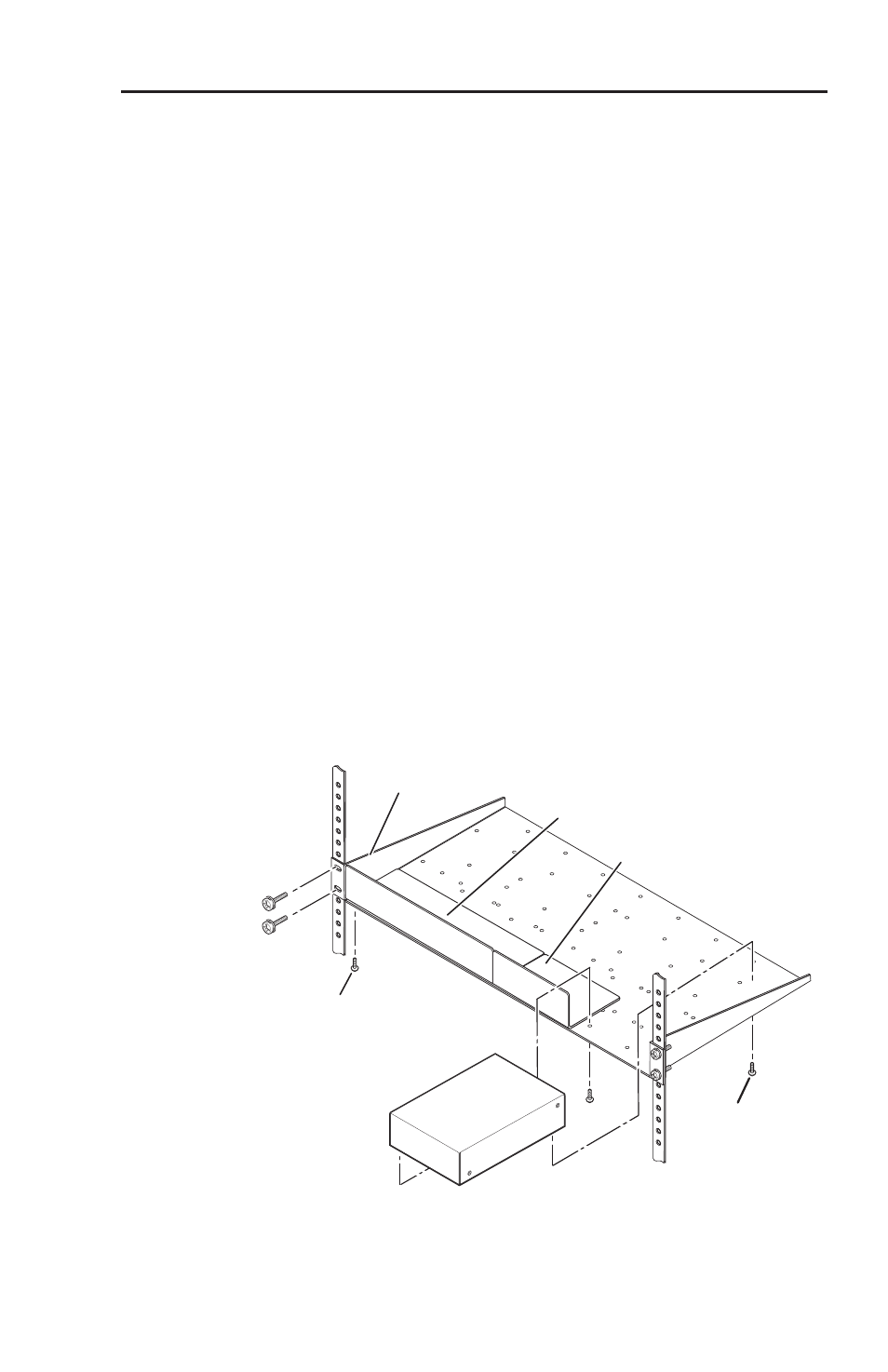

Use 2 mounting holes on
opposite corners.
(2) 4-40 x 3/16"
Screws
1U Universal Rack Shelf
Both front false faceplates
use 2 screws.
QuarterRackStandardShelf
1/4 Rack Width Front False
Faceplate
1/2 Rack Width Front False
Faceplate
Mounting
CVC 300 • Installation 2
