81
CR6400
User’s Guide
Environmental Specifications
Environmental Specifications
Connectors
Serial Connector
The serial connector is on the control card.

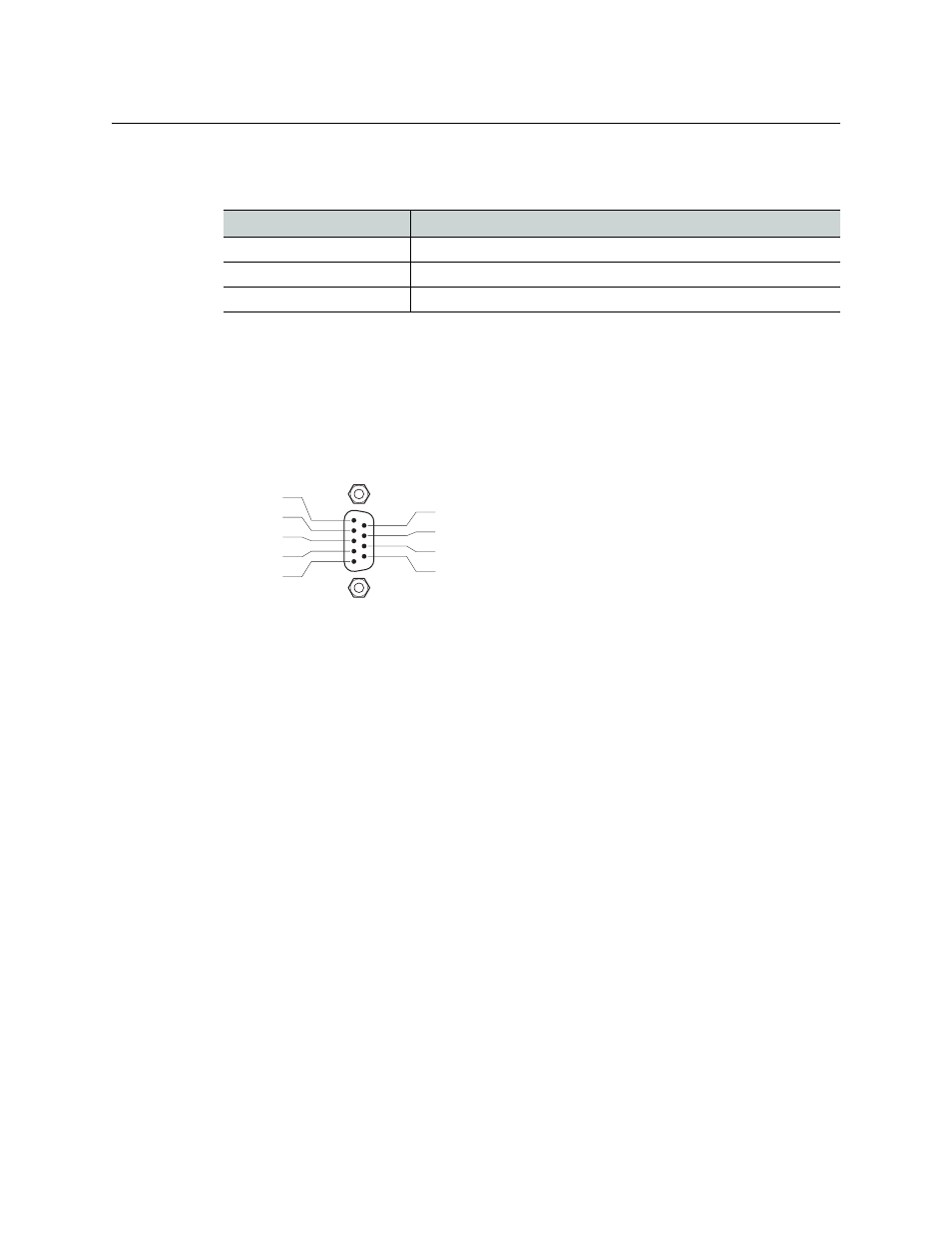

The automation connector for the CR6400 routers has this pinout:
The connector is RS-485, but can be used as RS-422.
Customers who want to operate the router through an automation system or a control system
may contact Grass Valley technical support for information.
Specification Detail
Operating temperature 0–45°C, ambient.
Relative humidity 0 to 90%, non-condensing.
Cooling Removable fan module (two fans).
5
1
6
9
Gnd
TX–
RX+
Gnd
n.c.
Gnd
TX+
RX–
Gnd
