3
Introduction
Chapter 2 provides a functional description of the CR6400 routers and the CP6464 control panel.
Topics
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
The Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
I/O Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
The Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Feature Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Overview
Summary
The CR6400 family is a unique subset of Grass Valley’s CR series of compact routers: the family’s
routers have a larger switching matrix (64×64) and modular construction.
The CR6400 routers are 2RU routers, are about 10 inches deep.

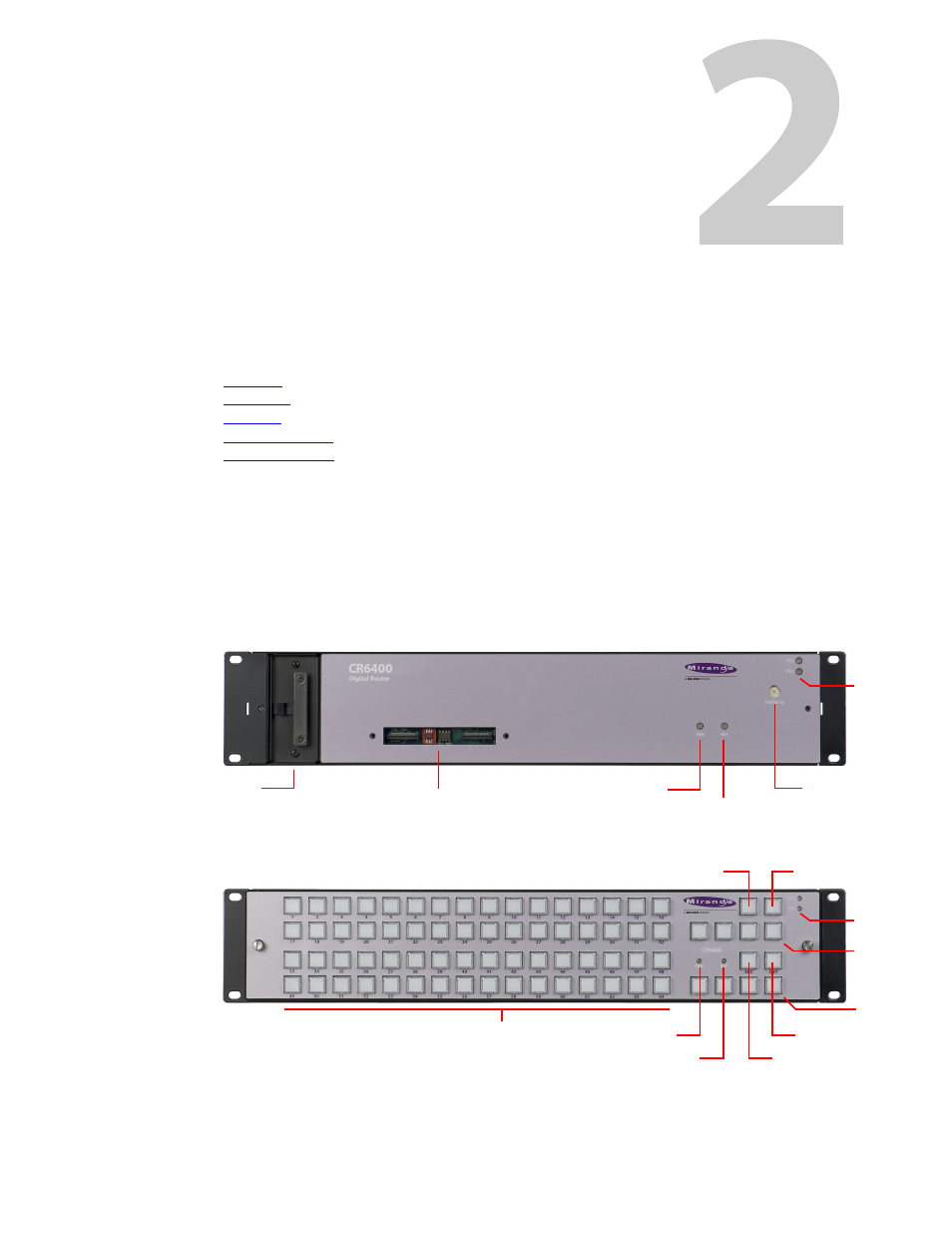

A thin 2RU control panel — the CP6464 — can mount directly on the front of the router as shown
here:
The control panel has an array of 64 function buttons at the left and 12 function buttons at the
right. The panel’s default button functions are identified here.
Power LEDs
Rotary Switch
Reference LED
Fan LED
Connectors
(Removable) Fan Unit
Power LEDs
Panel Lock Dest. Lock
Selection Buttons (64)
Level
Select (4)
Dest. Mode
Source Mode
Unused (4)
Fan LED
Ref. LED
