Example — Breakaway Take for CP3201 in Enhanced Mode without Hold
You want to take SD from source S1 to the default destination. But you also want to take AES12
from source S3 and both AES34 and AES56 from source S4. The previous source was S7.
The levels defined for the destination are SD, A12, A34, and A56. SD was defined first in the
destination description. Therefore it is considered the primary level.

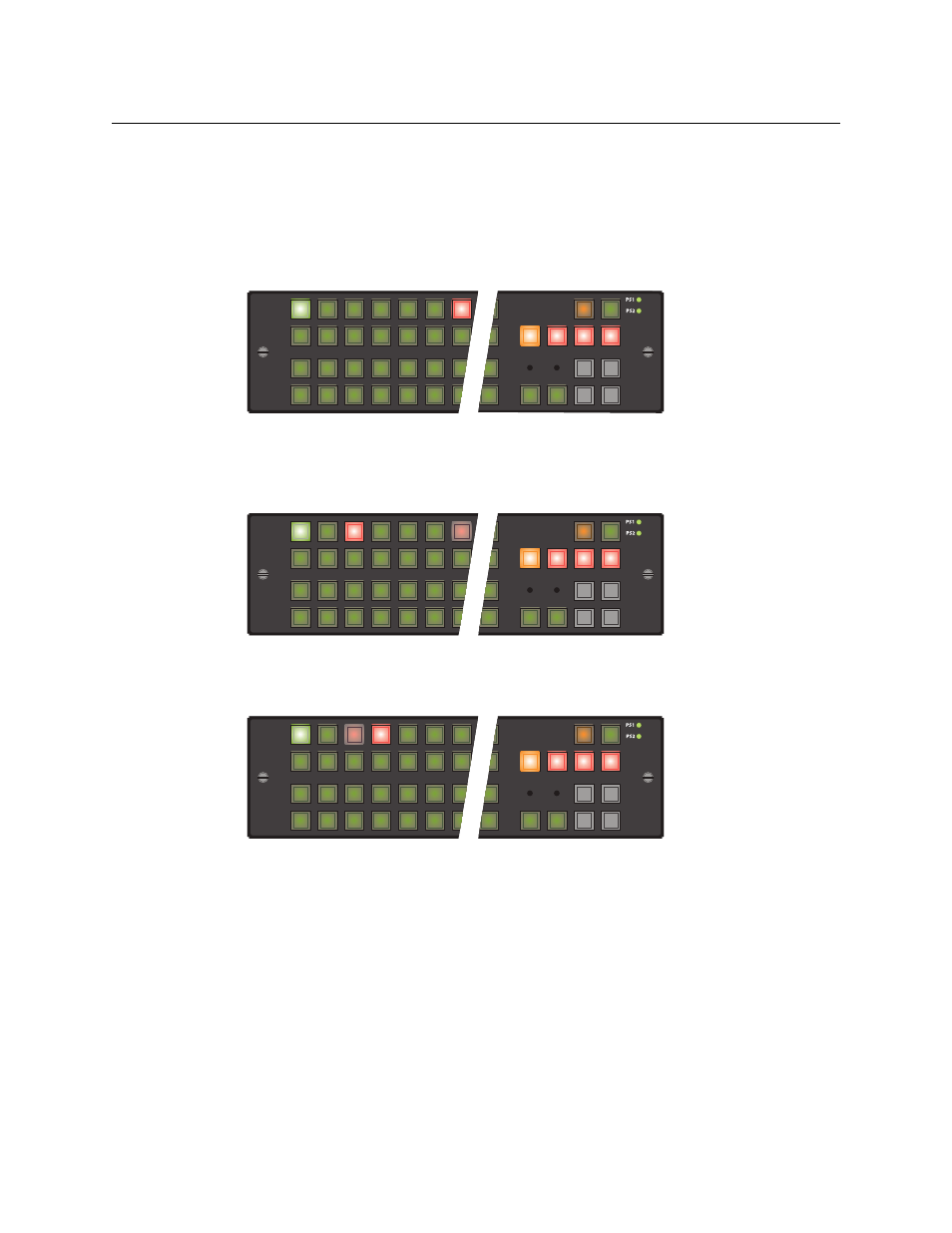

1 Select just level SD. Press source S1.
Source S1 is high-tally because you have taken SD — the primary level — from this source.
Source S7 is red because the other levels still come from S7. (The SD level button is amber
because SD is the primary level. The other levels are red because they are not primary.)
2 Select just A12. Press source S3.
Source S3 goes high-tally red because it is not the primary source. All level buttons go high-
tally once again.
3 Select both A34 and A56. Press source S4.
Source S4 goes high-tally red because, like source S3, it is not the primary source. All level
buttons go high-tally once again.
Pressing another source button without selecting a level reverts the take to a normal take,
clearing the breakaway you performed.
