CRSC Network Operation
Performing Takes
Example — Breakaway in Enhanced Mode with Hold
You want to take SD video from source S1 to destination D2. But you also want to take AES12
from source S3 and both AES34 and AES56 from source S4. The previous source was S7.
The levels defined for the destination are SD, A12, A34, and A56. SD was defined first in the
destination description. Therefore it is considered the primary level.

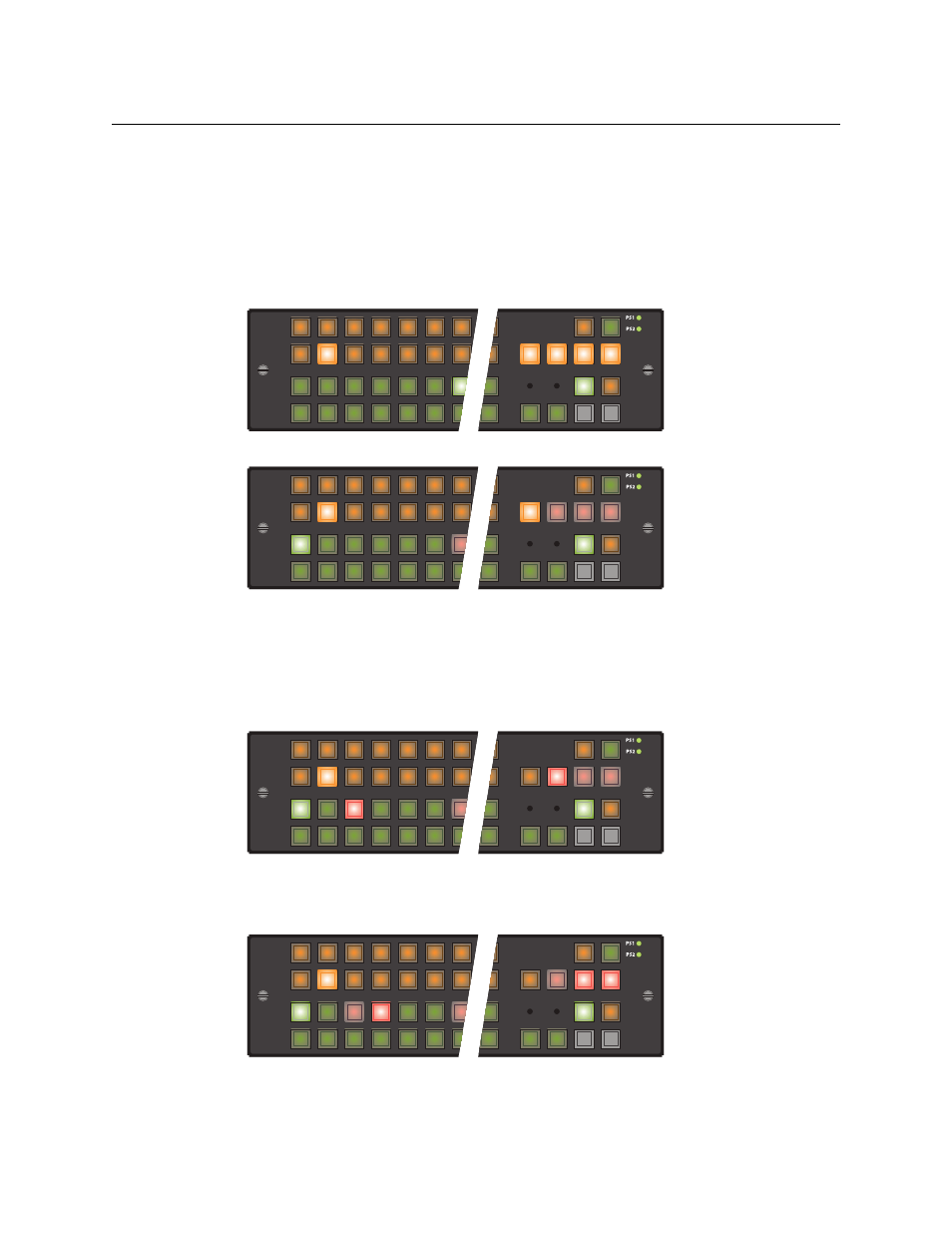

1 Switch to the page containing destination D2. Press destination D2. The previous source was
source S7 so it is high-tally.
2 Select just level SD. Press source S1, switching to a different page if necessary.
Source S1 goes high tally because you have taken SD — the primary level — from this source.
Source S7 is red, indicating that the other levels still come from source S7. (The SD level but-
ton is amber because SD is the primary level. The other level buttons are red because they
are not primary. They are low-tally because this is hold mode and, thus far, SD remains the
only level selection.)
3 Select just level A12. Press source S3.
Source S3 goes high-tally red because it is not the primary source. The level buttons remain
unchanged. You could choose another source at this point if you made a mistake.
4 Select levels A34 and A56. Press source S4.
Source S4 goes high-tally red because, like source S3, it is not the primary source. The level
buttons remain unchanged. Again, you could choose another source at this point. Pressing
