Kayenne XL Package — Installation and Service Manual 65
Touch Screen Menu Panel Installation
CAUTION Do not connect or disconnect the multi-pin cables linking a Kayenne XL
Touch Screen Menu Panel tray and PCU while the PCU is powered up.
Damage to the Kayenne XL panel equipment can result.

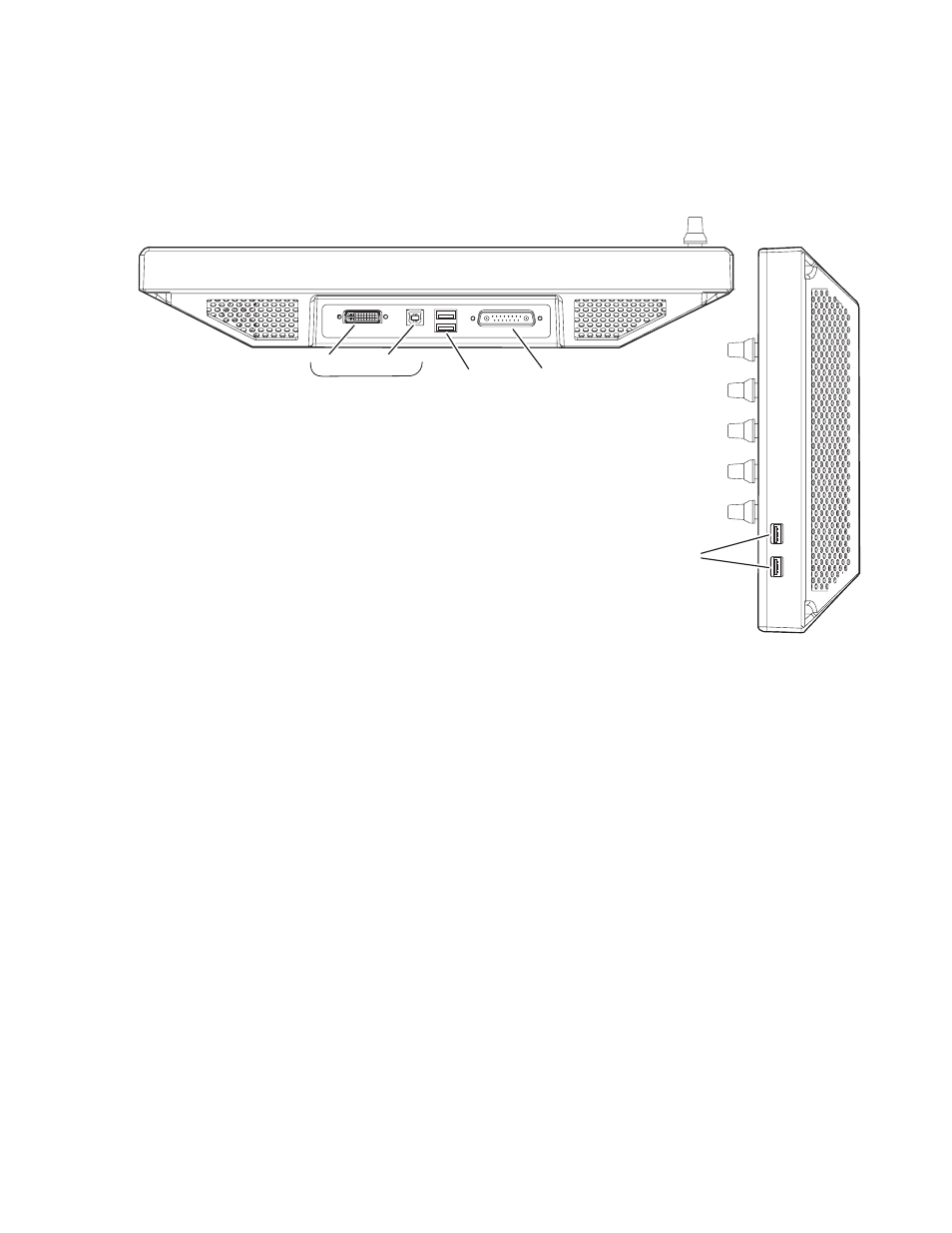

Figure 48. Menu Panel Connections
See Section 4-System Cabling for more information about Kayenne XL cable
connections.
Additional Kayenne XL Menu Panels
An additional touch screen Kayenne XL Menu Panel is available as an
option. An optional Menu Panel processor board is inserted into the PCU
for this added panel, and another multi-pin power and signal cable is used
for that panel.
It is also possible to run a Kayenne XL Touch Screen Menu Panel with a
standard PC, independent from the PCU. An optional power supply is
available to power the Menu Panel, and a DVI cable connects the PC to the
Menu Panel.
The Kayenne XL menu application can also be run on a standard PC, per-
mitting mouse and keyboard control from a laptop, or remote control from
any location on the network.
Side View, Right
8623266_11
Bottom View
USB (2)
USB (2)
DVI USB Type B
Optional use with PC
PCU Connector
