64 Kayenne XL Package — Installation and Service Manual
Section 3 — Control Surfaces
See Section 4-System Cabling for more information about Kayenne XL panel
cable connections.
Touch Screen Menu Panel Installation
Menu Panel Dimensions

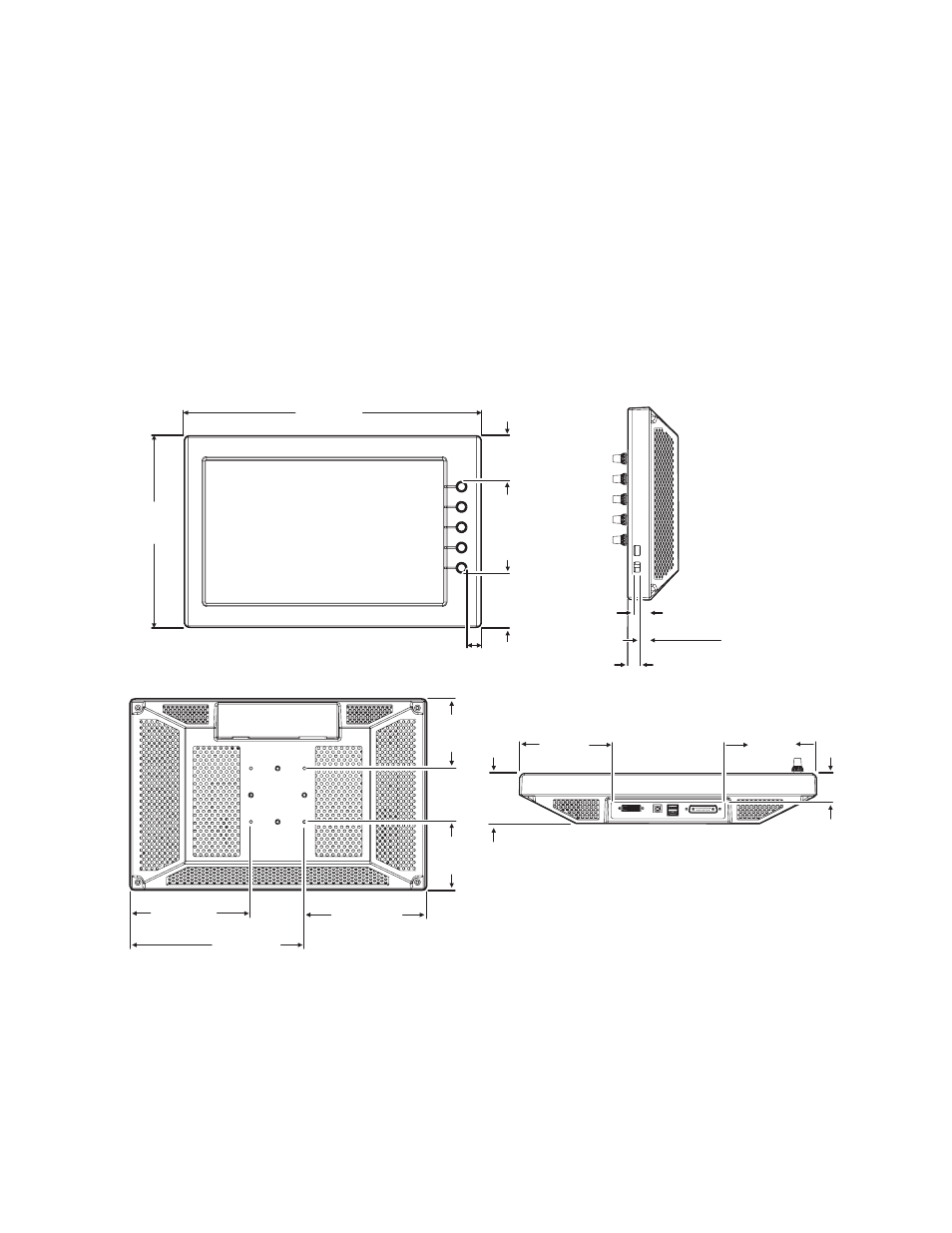

Figure 47. Menu Panel Dimensions
Menu Panel Connectors
The Kayenne XL Touch Screen Menu Panel’s processor is located in the
PCU. The Menu panel connects to the PCU with a special multi-pin cable
that carries both power and communications signals.
Front View
Rear View
Side View, Right
8623266_07
Bottom View
170.9 mm
6.73 in.
245.9 mm
9.68 in.
171.9 mm
6.77 in.
19.1 mm
.79 in.
76.2 mm
3.00 in.
417.8 mm
16.45 in.
270.0 mm
10.63 in.
64.1 mm
2.52 in.
129.4 mm
5.09 in.
8.4 mm
.33 in.
17.3 mm
.68 in.
12.7 mm
5.0 in.
97.5 mm
3.84 in.
97.5 mm
3.84 in.
128.4 mm
5.06 in.
70.6 mm
2.78 in.
40.6 mm
1.60 in.
