Touchscreen calibration – Grass Valley Kayenne XL Package Installation v.7.0.2 User Manual
Page 124
124
Kayenne XL Package — Installation and Service Manual
Section 5 — Maintenance
Touchscreen Calibration
•
Open the Windows start menu and open the touchscreen control, by a
click on Start / Programs / Hampshire TSHARC Control Panel.
•
Select the second tab Calibration

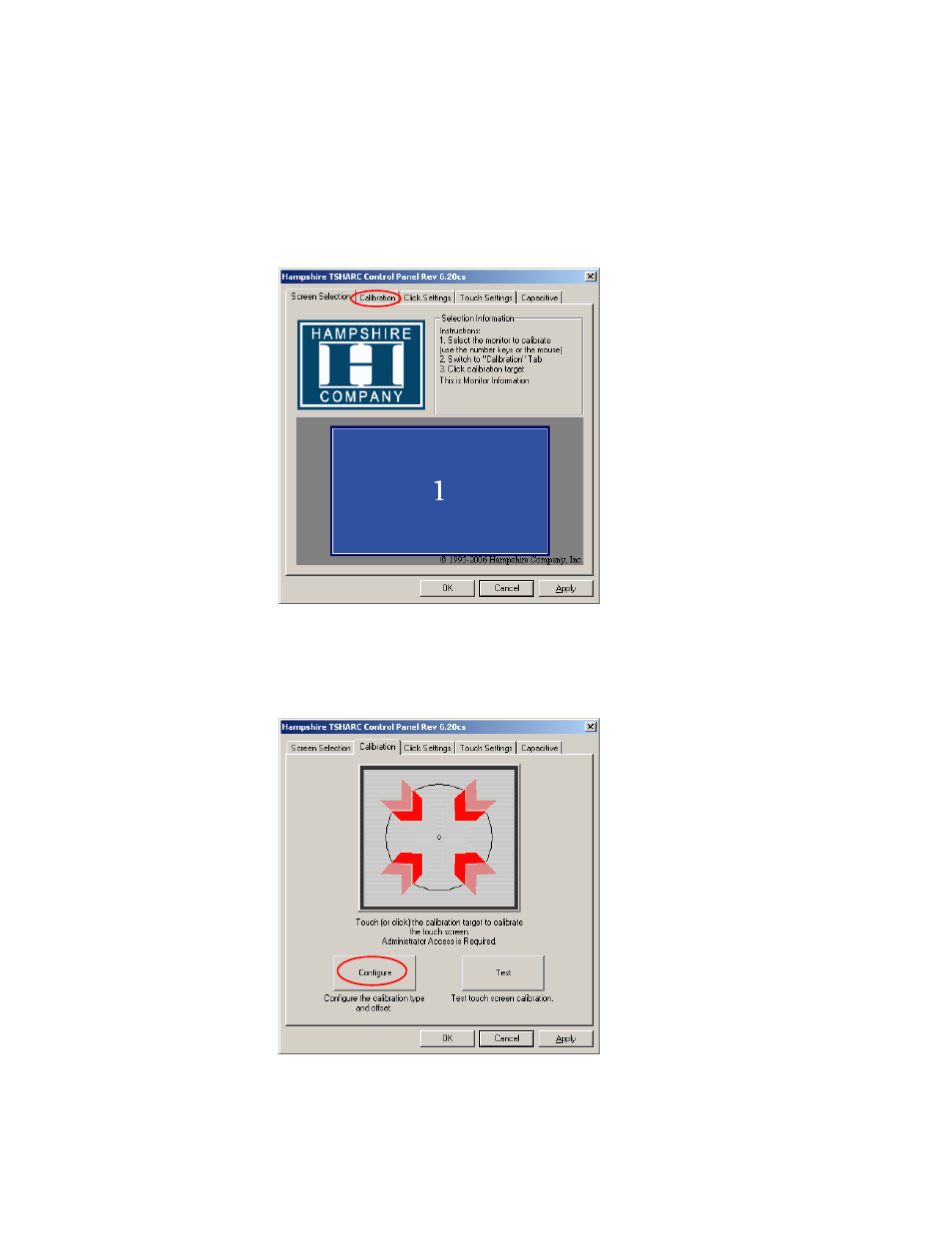

Figure 109. Touchscreen calibration
•
Select Configure to configure the calibration type.
Figure 110. Touchscreen calibration
•
Set the calibration type on 4 Point Calibration and click on OK.
