01 April 2010 K2 Storage Cabling Guide
17

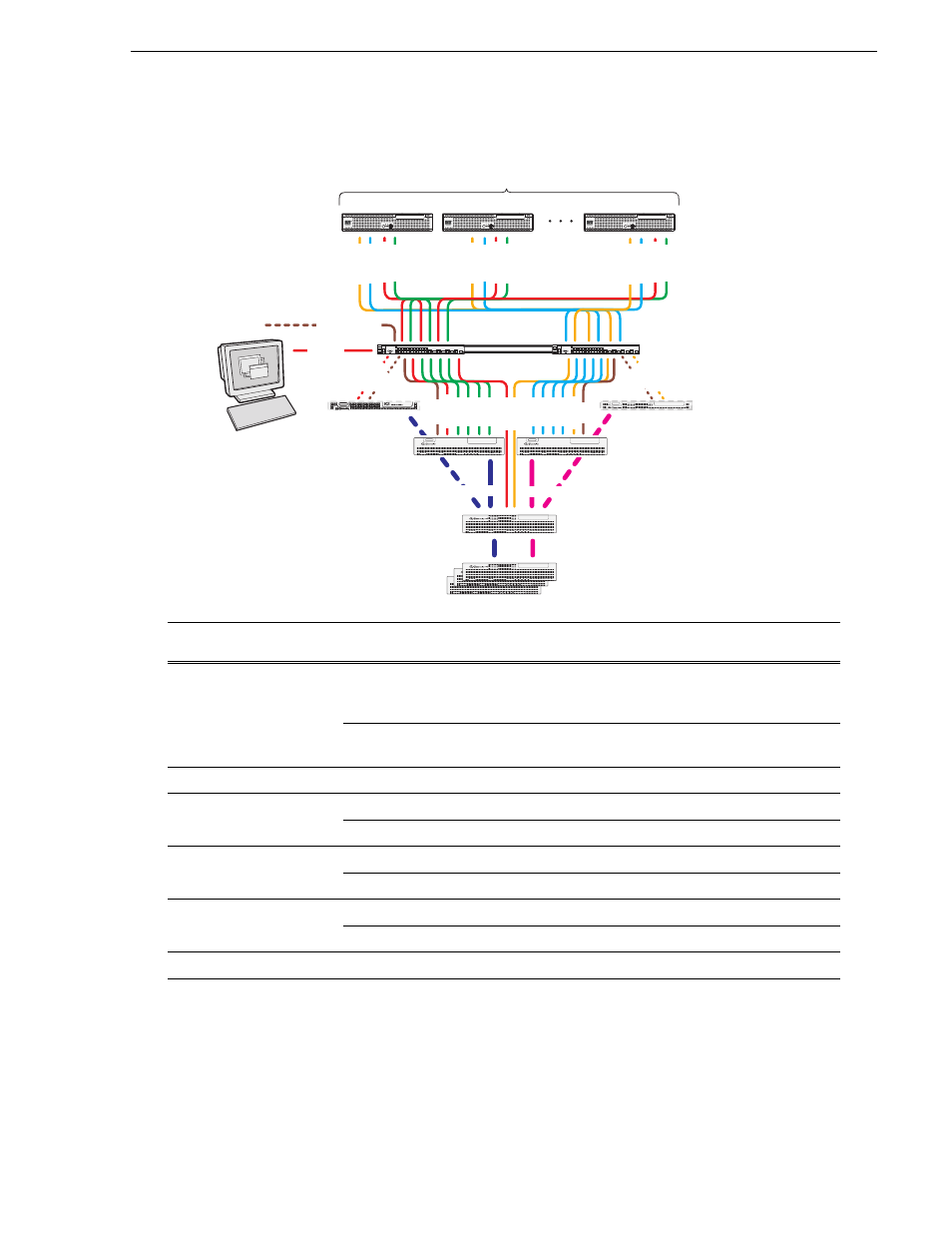

Level 30 Redundant K2 SAN
Level 30 Redundant K2 SAN
This manual documents the default GigE switch configuration. Other configurations are available,
depending on your port count and FTP bandwidth requirements. Refer to the K2 Storage System
Instruction Manual or the K2 SAN Installation and Configuration Guide for more information.
Multiple NH servers must be of the same type, either all NH1-10GE or all NH1.
To cable this K2 SAN
device… Of this model or
platform… Turn to these instructions:
K2 client K2 Media Client,
including SDA-00,
SD-00, and HD-00. “K2 Media Client for redundant K2 SAN” on page 25
K2 Summit
Production Client “K2 Summit Production Client for redundant K2 SAN” on
page 26
Gigabit Ethernet Switch HP 2900 series “29xx HP GigE switch for redundant K2 SAN” on page 30
K2 Media Server Dell 2950 “Dell 2950 LS for redundant K2 SAN” on page 41
Dell R710 “Dell R710 LS for redundant K2 SAN” on page 45
NH1 K2 Media Server
(optional) Dell 1950 “Dell 1950 NH1 for online K2 SAN” on page 46
Dell R610 “Dell R610 NH1 for online K2 SAN” on page 47
NH1-10GE K2 Media
Server (optional) Dell 1950 “Dell 1950 NH1-10GE for online K2 SAN” on page 49
Dell R610 “Dell R610 NH1-10GE for online K2 SAN” on page 50
K2 RAID Level 30 K2 RAID “K2 RAID for Level 30 redundant K2 SAN” on page 62
RAID Primary
Chassis
RAID Expansion
Chassis (optional)
K2 Media
Servers
NH Servers
(optional)
A B
B A
Gigabit Ethernet
Switches
Fibre Channel
Control B Media B Control A Media A Control A Media A Control B Media B
Control
FTP
Media Media Media Media Control
FTP
Media Media Media Media
Control point PC
! K2 S A S S T O R A G E
! K2 S A S S T O R A G E
! K2 S A S S T O R A G E
! K2 S A S S T O R A G E
K2 clients
K2 SUMMIT PRODUCTION CLIENT K2 SUMMIT PRODUCTION CLIENT K2 SUMMIT PRODUCTION CLIENT
K2 M E D I A S E R V E R K2 M E D I A S E R V E R
K2 M E D I A S E R V E R
Control
ISLs
Control Control
FTP/streaming
Control B Media B
Control A
Media A
M E D I A S E R V E R
Fibre Channel
Contr
ol
FTP
C
on
tro
l
F
TP
