GUIDE TO INSTALLATION AND OPERATION

6 | FIO-1901-TT

2.3 Rear Connector Panel

The FIO-1901-TT-SRP single-slot rear panel, mounted in a Densité 2 or Densité 3 frame, incorporates these
connectors:

• One socket for inserting a fiber transmitter SFP module – see the list of supported modules below.
• Two BNC connectors for the 3G/HD/SD SDI inputs.









2.4 SFP

Modules

The FIO-1901-TT supports the following SFP optical interface modules:

FIO-1901-TT Model #

Description of associated SFP module

FIO-1901-TT-C27C29-LC

Dual 3G/HD/SD optical CWDM Tx, 1271/1291 nm, LC/PC connector

FIO-1901-TT-C31C33-LC

Dual 3G/HD/SD optical CWDM Tx, 1311/1331 nm, LC/PC connector

FIO-1901-TT-C35C37-LC

Dual 3G/HD/SD optical CWDM Tx, 1351/1371 nm, LC/PC connector

FIO-1901-TT-C39C41-LC

Dual 3G/HD/SD optical CWDM Tx, 1391/1411 nm, LC/PC connector

FIO-1901-TT-C43C45-LC

Dual 3G/HD/SD optical CWDM Tx, 1431/1451 nm, LC/PC connector

FIO-1901-TT-C47C49-LC

Dual 3G/HD/SD optical CWDM Tx, 1471/1491 nm, LC/PC connector

FIO-1901-TT-C51C53-LC

Dual 3G/HD/SD optical CWDM Tx, 1511/1531 nm, LC/PC connector

FIO-1901-TT-C55C57-LC

Dual 3G/HD/SD optical CWDM Tx, 1551/1571 nm, LC/PC connector

FIO-1901-TT-C59C61-LC

Dual 3G/HD/SD optical CWDM Tx, 1591/1611 nm, LC/PC connector

FIO-1901-THTH-C27C29-LC High

Power

Dual 3G/HD/SD optical CWDM Tx, 1271/1291 nm, LC/PC connector

FIO-1901-THTH-C31C33-LC High

Power Dual 3G/HD/SD optical CWDM Tx, 1311/1331 nm, LC/PC connector

FIO-1901-THTH-C35C37-LC High

Power

Dual 3G/HD/SD optical CWDM Tx, 1351/1371 nm, LC/PC connector

FIO-1901-THTH-C39C41-LC High

Power

Dual 3G/HD/SD optical CWDM Tx, 1391/1411 nm, LC/PC connector

FIO-1901-THTH-C43C45-LC High

Power

Dual 3G/HD/SD optical CWDM Tx, 1431/1451 nm, LC/PC connector

FIO-1901-THTH-C47C49-LC High

Power Dual 3G/HD/SD optical CWDM Tx, 1471/1491 nm, LC/PC connector

FIO-1901-THTH-C51C53-LC High

Power Dual 3G/HD/SD optical CWDM Tx, 1511/1531 nm, LC/PC connector

FIO-1901-THTH-C55C57-LC High

Power

Dual 3G/HD/SD optical CWDM Tx, 1551/1571 nm, LC/PC connector

FIO-1901-THTH-C59C61-LC High

Power

Dual 3G/HD/SD optical CWDM Tx, 1591/1611 nm, LC/PC connector

FIO-1901-TT-S13S13-LC Dual

3G/HD/SD Optical Transmitters 1310nm LC/PC Connectors

FIO-1901-TT-W13W15-LC

Dual 3G/HD/SD Optical Transmitter 1310nm & 1550nm WDM - LC/PC Connector


See ANNEX 2 – Installing the Optical Interface on page 22 for instructions on installing and removing SFP modules.

Note that when WDM (Wavelength Division Multiplexing) or CWDM modules are installed, the outputs of the two
optical transmitters (operating at the wavelengths indicated in the chart) are multiplexed onto a single optical fiber.

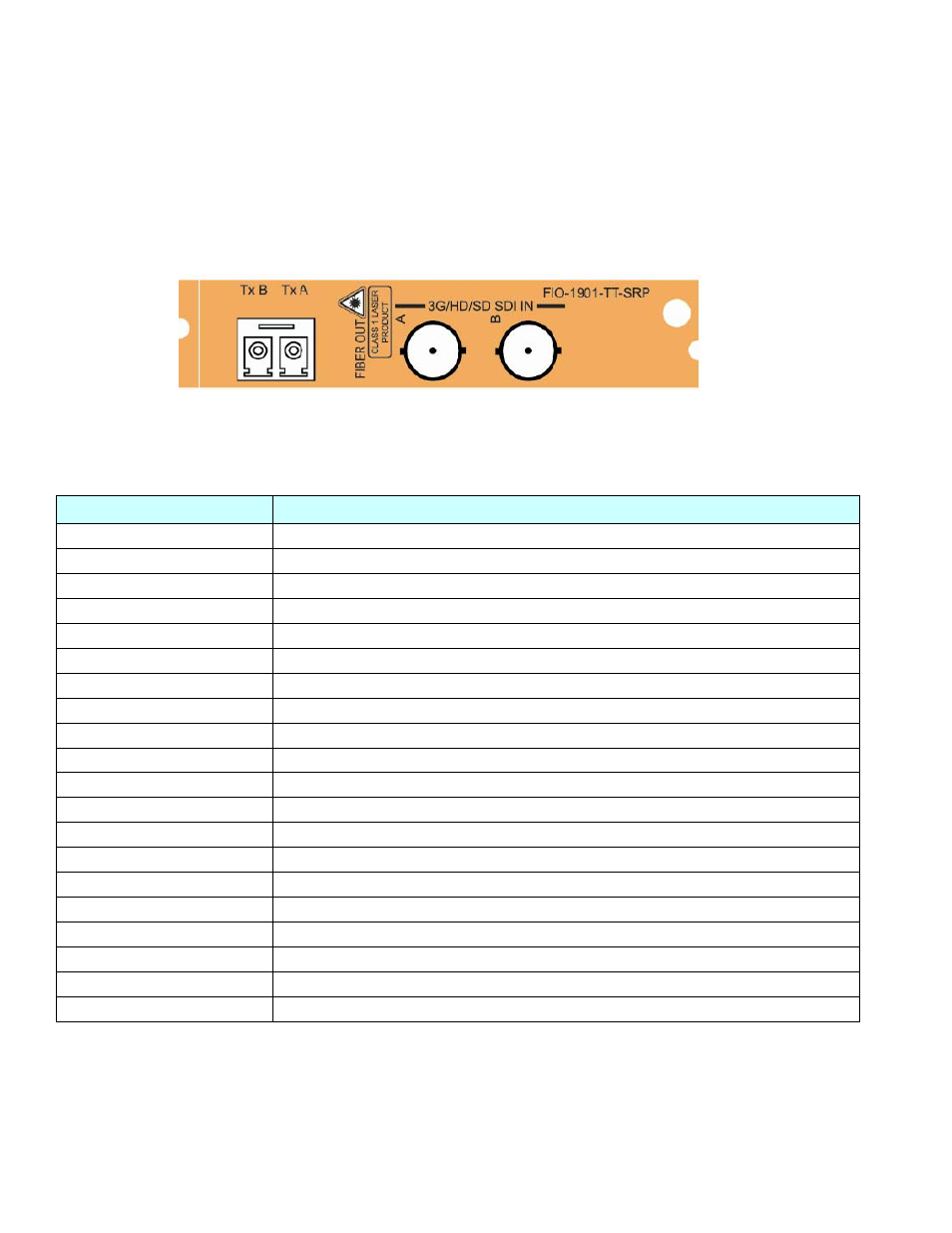

Figure 2.1 FIO-1901-TT-SRP Rear Panell
