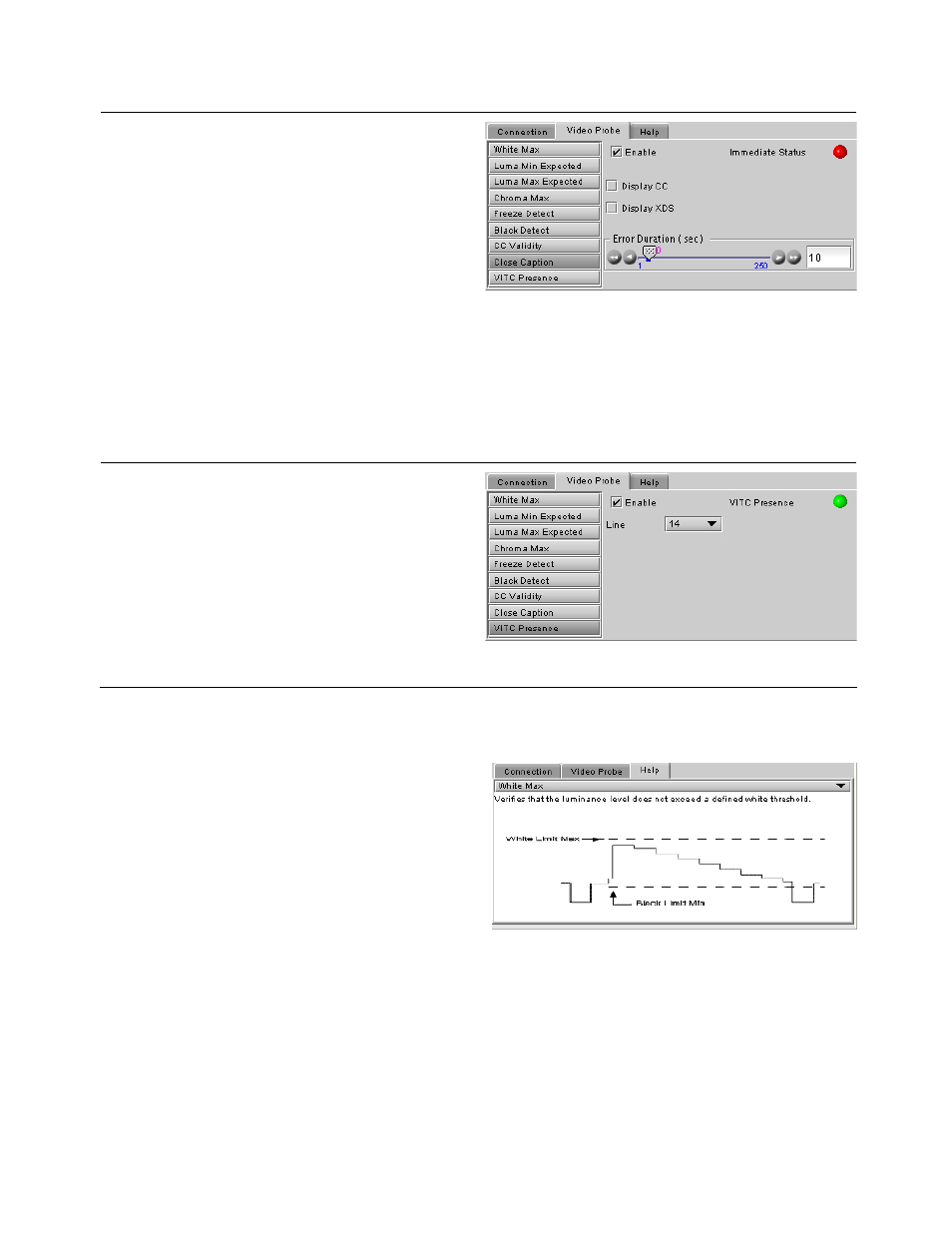

Close Caption: Detects the presence of Closed
Captioning (CC) information in the VBI of the input
video signal.
ENABLE: check to enable this test.
IMMEDIATE PRESENCE STATUS: shows the
current status of CC – green for present, and red for
absent.
DISPLAY CC, DISPLAY XDS: Enables the parsing
and the display of the Closed Captioning and the
XDS.
ALARM CONFIG: use the slider to set the Error
Duration; the period during which CC must be
continuously absent before the CC Presence error
will be flagged
VITC Presence: Detects the presence of the input
Time Code from a predetermined input line.
ENABLE DETECTION: check to enable this test
IMMEDIATE PRESENCE STATUS: show the
current status of VITC – green for present, and red
for absent.
LINE: Determines the input line monitored for the
Time Code detection.
HELP tab:
Gives additional information on each of the parameters
measured by the Video Probe. Click on the pull down
box at the top of the panel to select the desired
parameter.
Figure 3.9 Thumbnail group – Help tab
