LDK 5309/10 9-inch LCD HD color viewfinder User’s Guide (v1.0)
15
Chapter 1 - Introduction

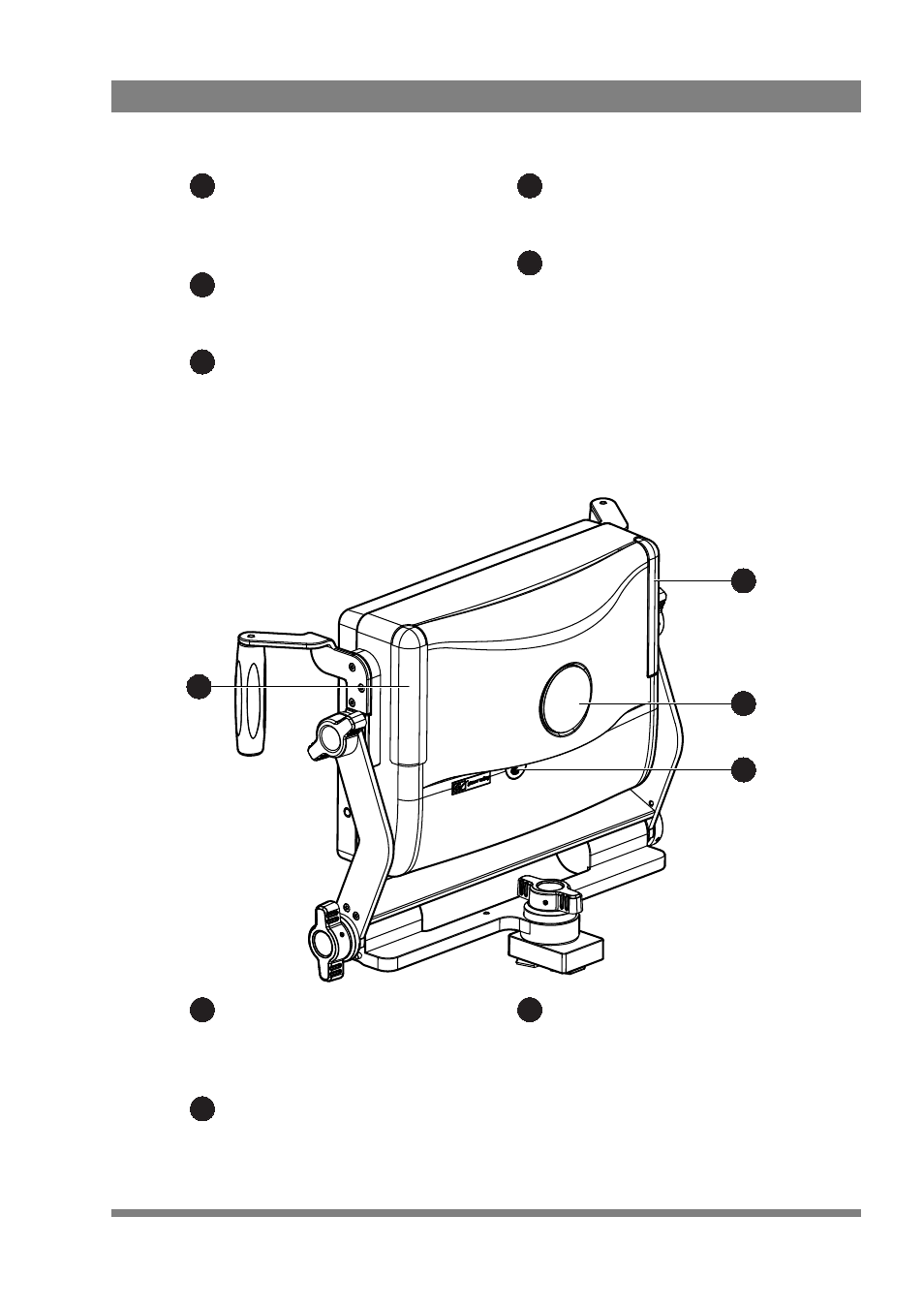

1.2.2 Back panel view
Peaking control
Controls the level of peaking that is
applied to the viewfinder signal.
User button 3
Assignable user button 3.
User button 2
Assignable user button 2.
7
8
9
User button 1
Assignable user button 1.
Menu button
Press this button to open the viewfinder,
camera system or button assignment
menus.
10
11
12
14
13
12’
Tally lights (On-Air)
These two bright red tally lights are lit
when the camera is On-Air.
Number plate
Recess for camera number plate
(optional).
12
13
Power switch
This switch is used to switch the
viewfinder on or off.
14
